OPERATION
51

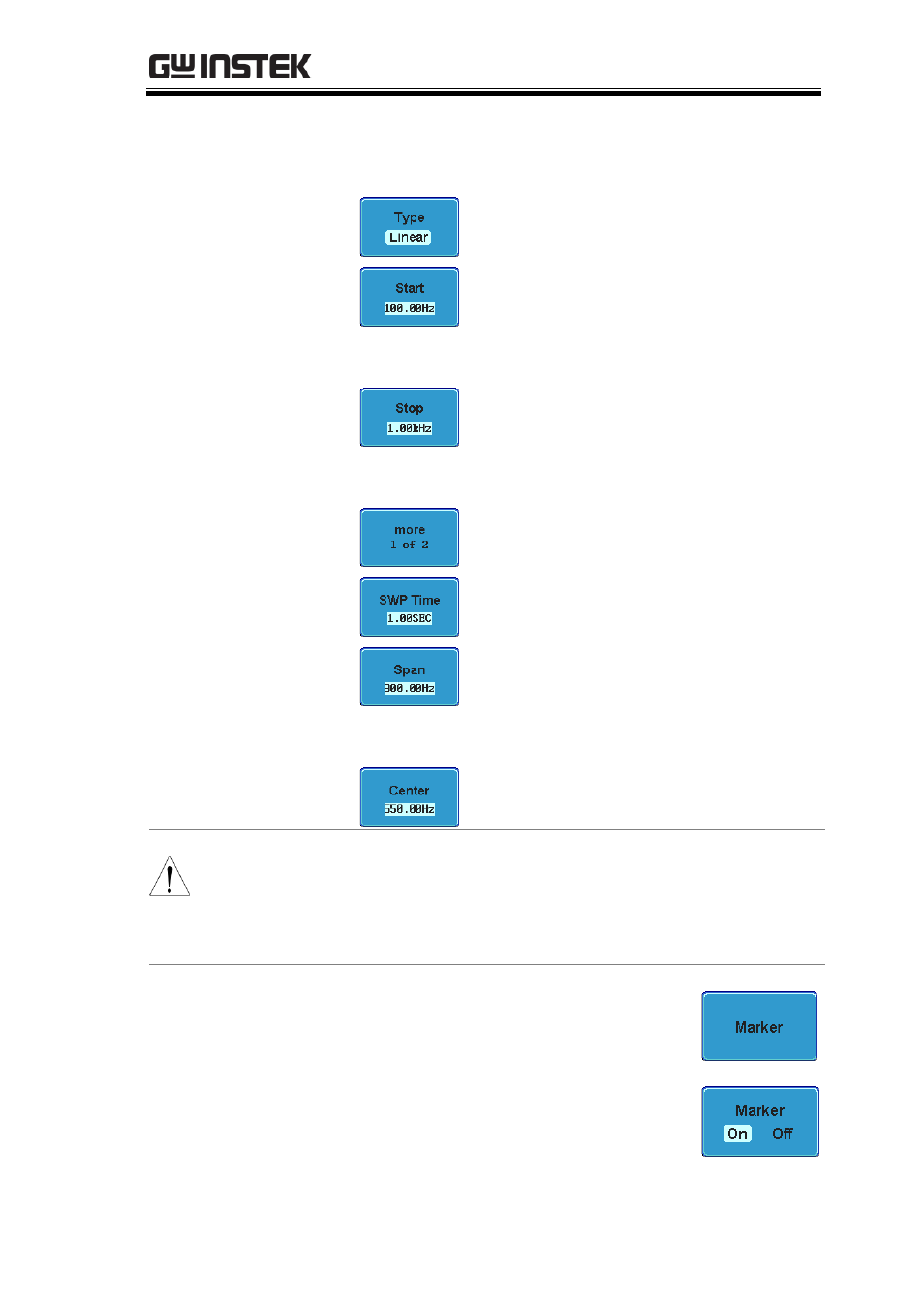

5. Select the sweep parameters from the side
menu:
Selects the type of sweep:
logarithmic or linear.
Sets the start frequency*:
1μHz ~ 25MHz
1μHz ~ 15MHz (Square)
1μHz ~ 1MHz (Ramp)
Sets the Stop frequency*:
1μHz ~ 25MHz
1μHz ~ 15MHz (Square)
1μHz ~ 1MHz (Ramp)
Press to access the remaining sweep
settings, shown below:
Sets the sweep time: 1ms ~ 500s.
Sets the Span*:
1μHz ~ 25MHz
1μHz ~ 15MHz (Square)
1μHz ~ 1MHz (Ramp)
Sets the center frequency*.
Note
*Setting the Start and Stop frequencies will override
the Span and Center settings, and conversely setting
the Span and Center settings will override the Start
and Stop settings.
Marker 6. To set a marker signal, press
Marker and turn Marker On. The
marker will output a TTL-level
square wave signal at the
designated frequency from the
SYNC output port.
