AFG-125/225 Series Options Manual

32

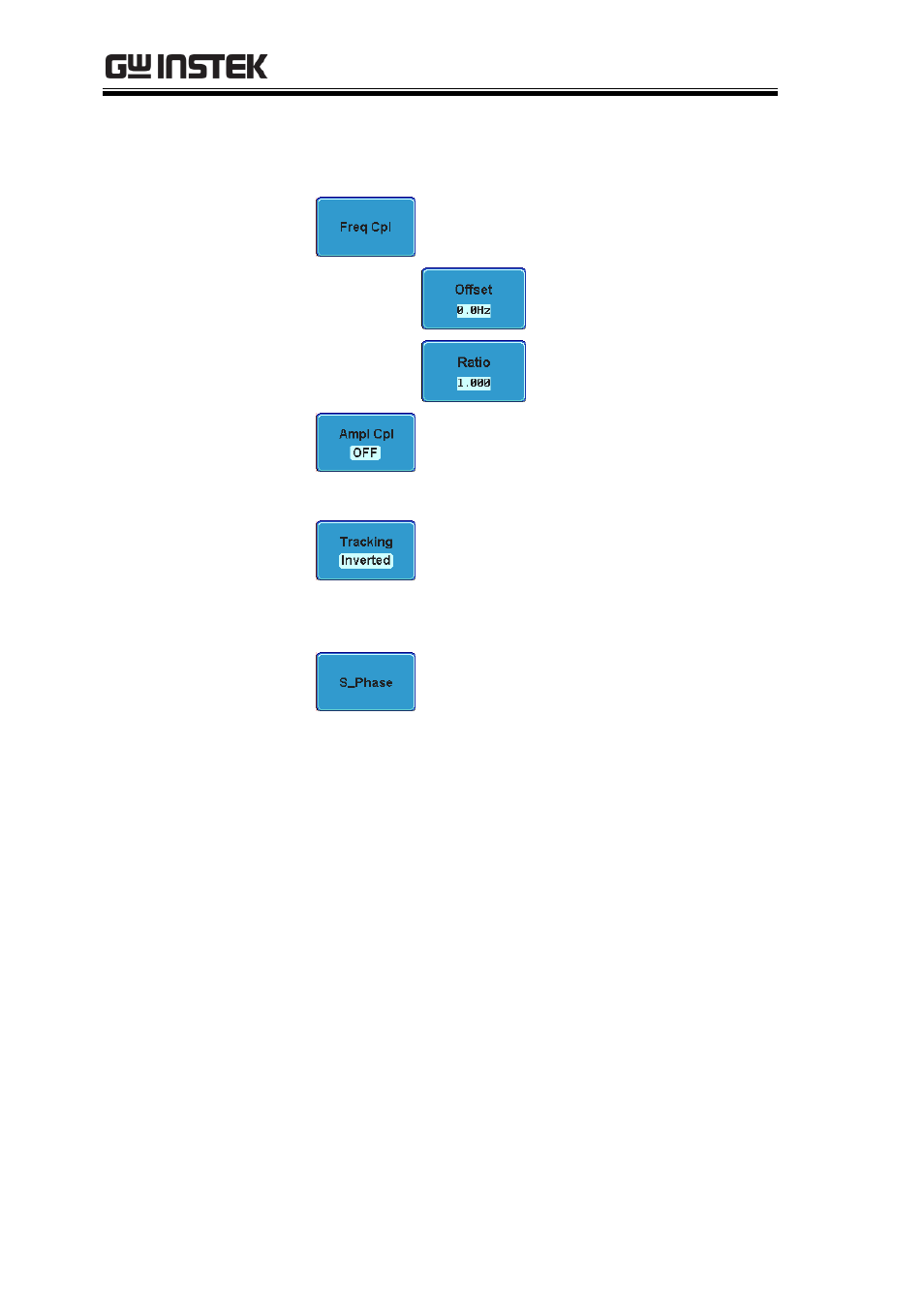

2. From the side menu choose the

relevant tracking function(s):

Turns frequency coupling on and
sets the type of frequency coupling:

Offset: Sets frequency
coupling as an offset.

Ratio: Sets frequency
coupling as a ratio.

Turns amplitude coupling on or off.

Ampl Cpl:

OFF, ON

Turns tracking on or off, or turns
tracking on and inverts the output
of the second output.

Tracking:

OFF, ON, INVERTED

Press S_Phase to synchronize the
phase of the both channels.
