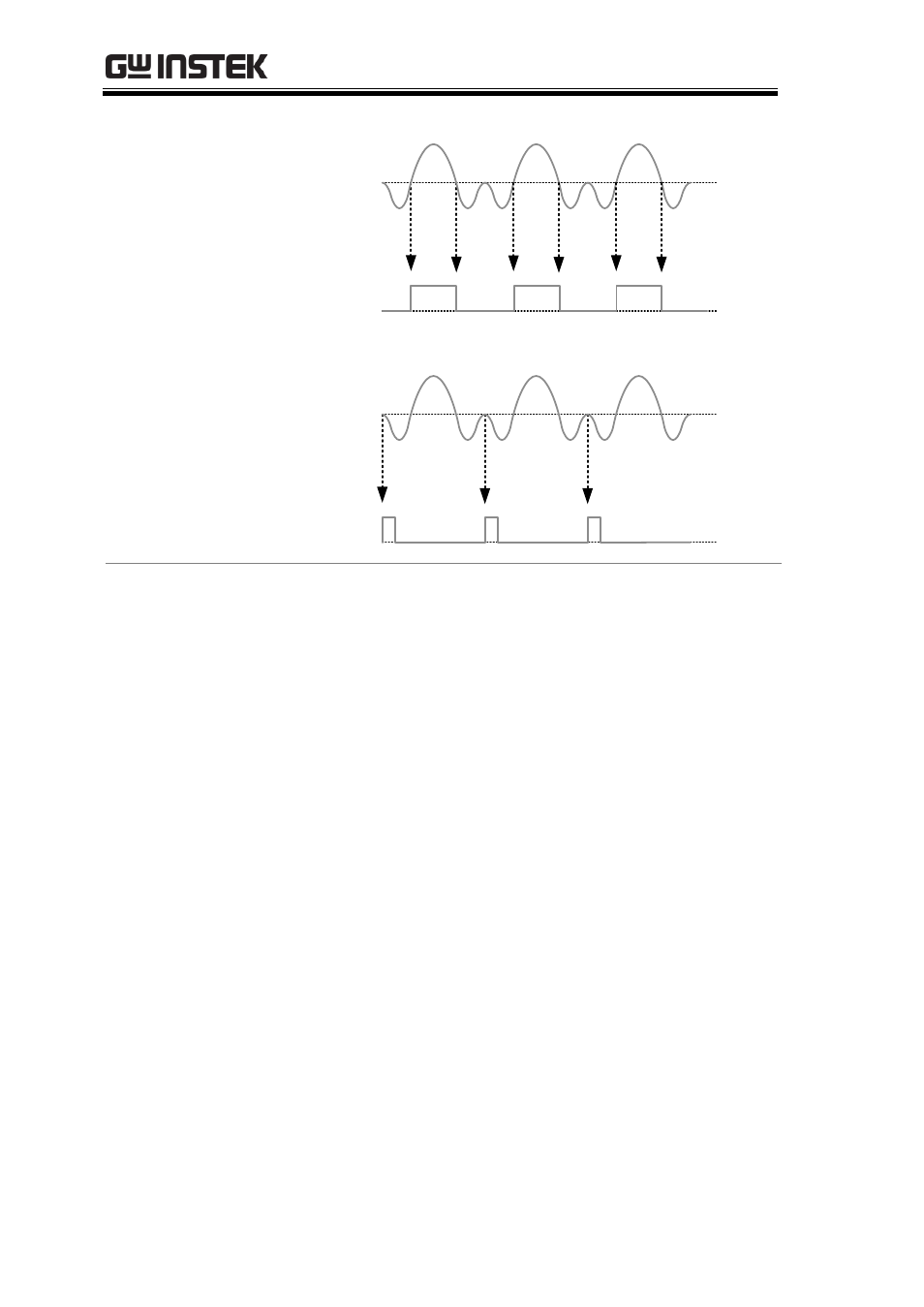

Carrier

ARB output

SYNC output

0V

0V

Marker

ARB output

SYNC output

0V

0V

Sweep Source

The sweep function can
output either carrier or marker
signals.
Carrier: The sync signal
output is a positive TTL level
pulse for the positive
transition of the sweep
waveform and low for the
negative transition.
Marker: The marker signal
output is a TTL level positive
pulse from the “marker”
frequency to the stop
frequency and a low level
signal from the start frequency
to the “marker” frequency. See
page 50 to set the marker
settings.
