GETTING STARTED

15

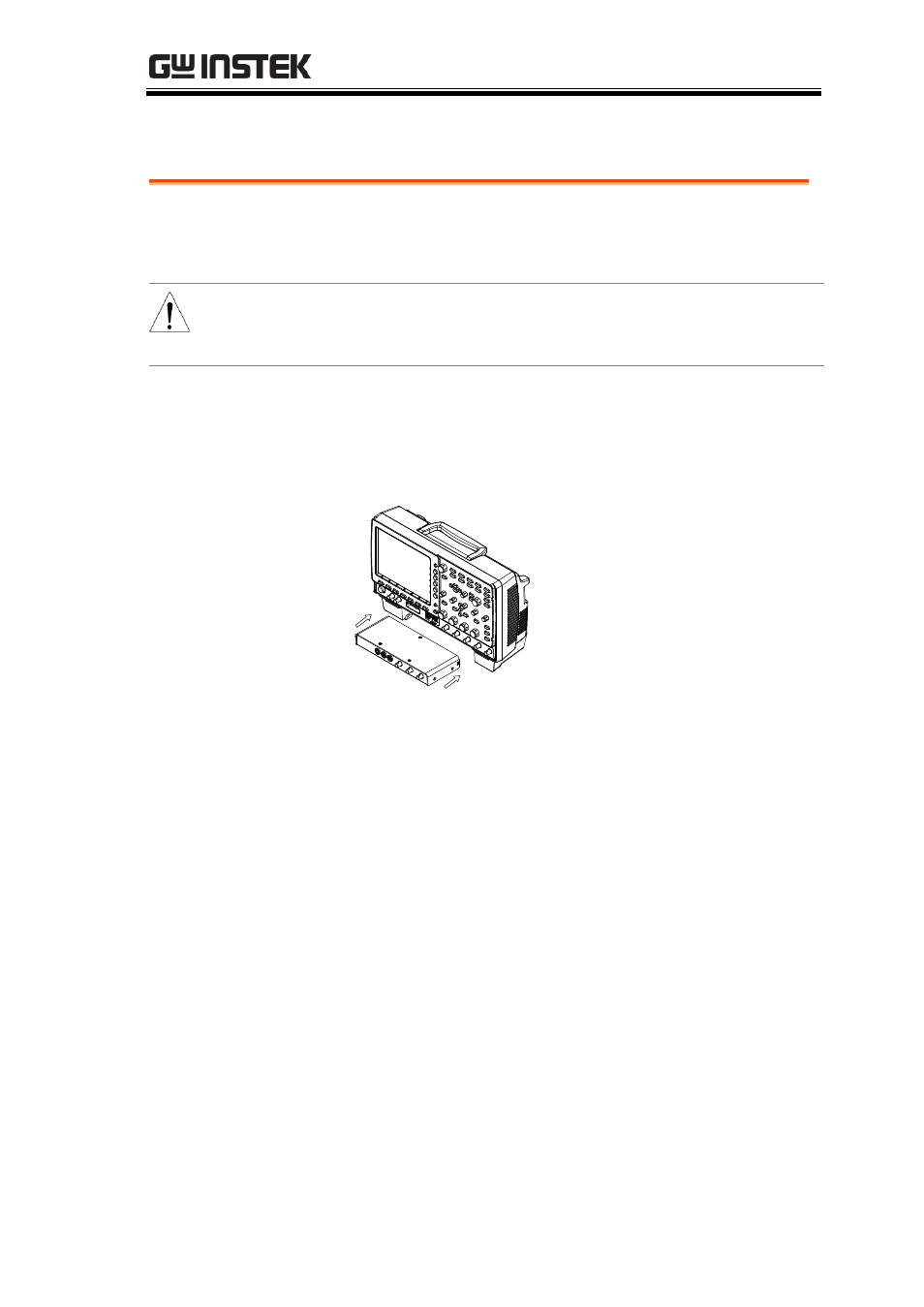

Module Installation/Removal

Background

The AFG-125/225 modules are installed into the
area that is left between both of the DS2-FH1
housings.

Note

Make sure the power is turned off before installing the
AFG-125/225 module.

Installation Steps

1. Slide the module into the slot that was created

between the DS2-FH1 housings. The front of
the module should be facing forwards.

2. Make sure the module is secure. The module

will click into place when it is inserted
properly.

3. Make sure the GDS-2000A is turned off before

proceeding.

4. Connect one end of the GTL-254 USB cable to

the rear panel USB Device port and to the USB
Host port. Connect the other end to the Device
port on the AFG-125/225, as shown below.

5. Turn the power back on. The AFG-125/225 will

now be accessible in the Option menu.
