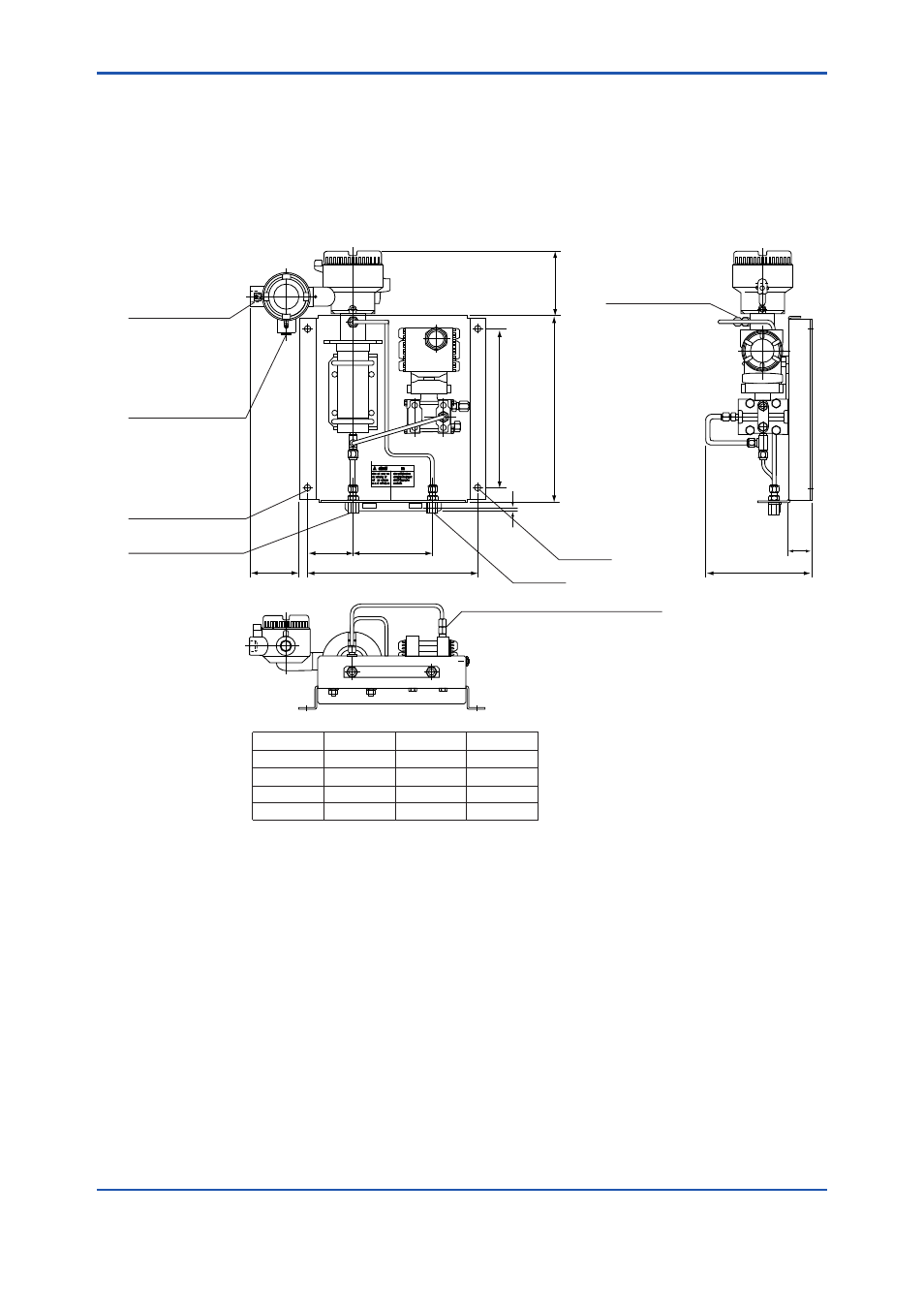

1.3.4 GD40 Detector
• Model GD40- /EJAJ1, /EJAF2, /EJAF3, /EJAF4
F0104.ai
5
35
0
(1
3.
8)
120 (4.7)
Gas in
See Table
Cable gland is included only in /EJAJ1 
Gas out
See Table
93 (3.7) 320 (12.6)
GD40
Detector wiring port
See Table
Cable gland is included
only in EJAJ1
Four panel-mounting
holes, 12 mm in
diameter
EJA wiring port
See Table
40
(1.6)
196 (7.7)
Option code GD40 wiring EJA wiring Gas out/in
/EJAJ1
G1/2 G1/2 Rc1/4
/EJAF2 1/2 NPT 1/2 NPT 1/4 NPT
/EJAF3 1/2 NPT 1/2 NPT 1/4 NPT
/EJAF4 1/2 NPT 1/2 NPT 1/4 NPT
Weight: approx. 15 kg (27.8 pounds)
Unit: mm (in.)
4-ø12 (0.47)
abc cd nmv sc
xs xdcvbg vf
ad xs cdnmn
z x d cdf vfg m abc vdfbjkosblm
sbdgjklodenjhl;pk
nbdvf kggswba
nscbxfk
∆ abcdf m
150 (5.9) 100 (3.9)
