IM 11M13A01-02E 3-13
3. Installation

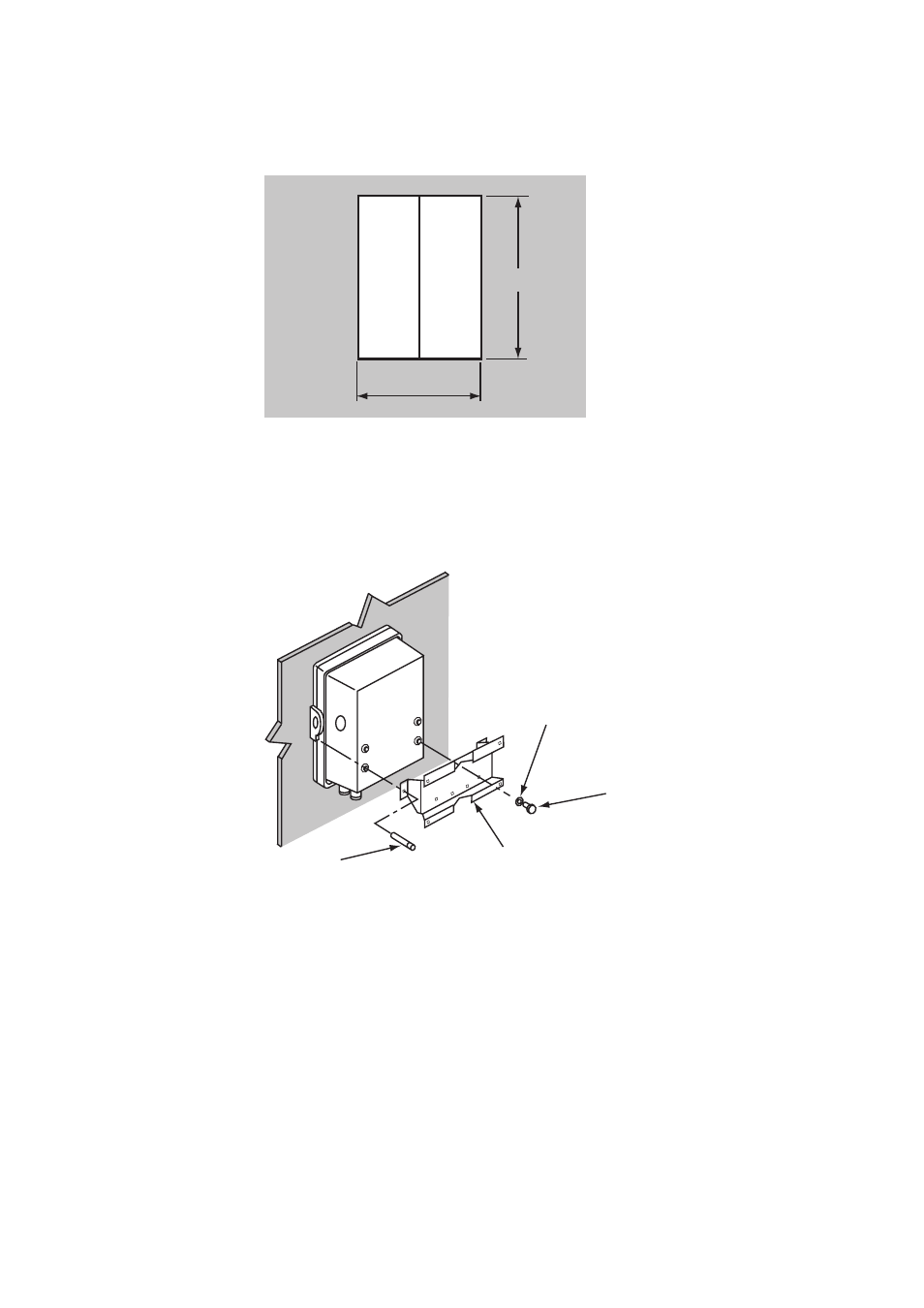

(1) Cut out the panel according to Figure 3.11.
274
+2
0
183
+2
0
F3.11E.EPS
Unit: mm
Figure 3.11 Panel cutout sizes
(2) Remove the fitting from the converter by loosening the four screws.
(3) Insert the converter case into the cutout hole of the panel.
(4) Attach the mounting fitting which is once removed in step (2) again to the converter.
(5) Firmly fix the converter to the panel. Fully tighten the two clamp screws to hold the
panel with the fitting.
Clamp screw
Washer
Nut
Fitting
F3.12E.EPS
Figure 3.12 Panel mounting
