IM 11M13A01-02E
7-9
7. Startup
7.9
Setting Display Item

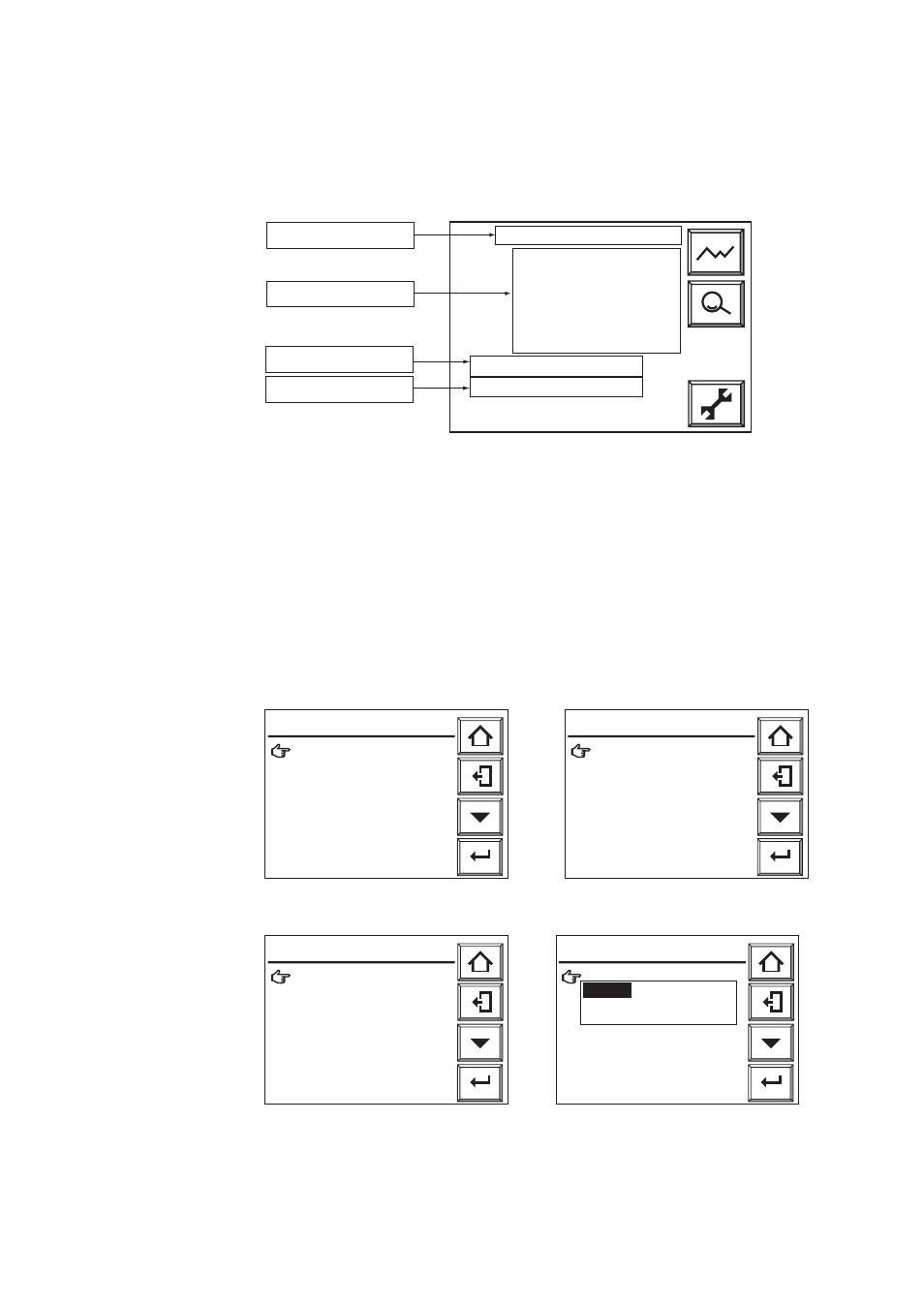

This section briefly describes the display item settings shown in Figure 7.11, “Basic
Panel Display.”
F7.11E.EPS
Tag:
21.0
%O
2
17.43mA -Output1
17.43mA -Output2
Primary value
Secondary value
Tertiary value
Tag name
Figure 7.11 Basic Panel Display
(1) Press the Setup key in the basic panel display to display the Execution/Setup display.
Then select Maintenance in the Execution/Setup display.
(2) Select the Display setup from the Maintenance panel display (Figure 7.12). The
Display setup display (Figure 7.13) then appears.
(3) In the above Display setup display, select the Display item. The Display item display
(Figure 7.14) then appears. From this display, select the Primary value and press the
[Enter] key to display the Display item selection display (Figure 7.15).
(4) Select the Secondary and Tertiary values in the same manner as in the steps above.
(5) Consult Table 7.2, “Display Items,” enabling the selection of display items in
individual display areas.
Enter
Display setup
᭜
Calibration setup
᭜
Blow back setup
᭜
mA-output loop check
᭜
Contact check
Maintenance
F7.12.EPS
Enter
Display item
᭜
Trend graph
᭜
Auto return time: 0min
᭜
Language: English
Display setup
F7.13.EPS
Figure 7.12 Maintenance Panel Display Figure 7.13 Display Setup
Enter
Primary value:
Oxygen
᭜
Secondary value:
mA-output1
᭜
Tertiary value:
mA-output2
᭜
Tag name:
Display item
F7.14.EPS
Primary value:
Oxygen
᭜
Secondary value:
mA-output1
᭜
Tertiary value:
mA-output2
᭜
Tag name:
Enter
Oxygen
Item of output1 damping
Item of output2 damping
Display item
F7.15.EPS
Figure 7.14 Display Item Display Figure 7.15 Display Item Selection
