IM 11M13A01-02E 2-29
2. Specifications

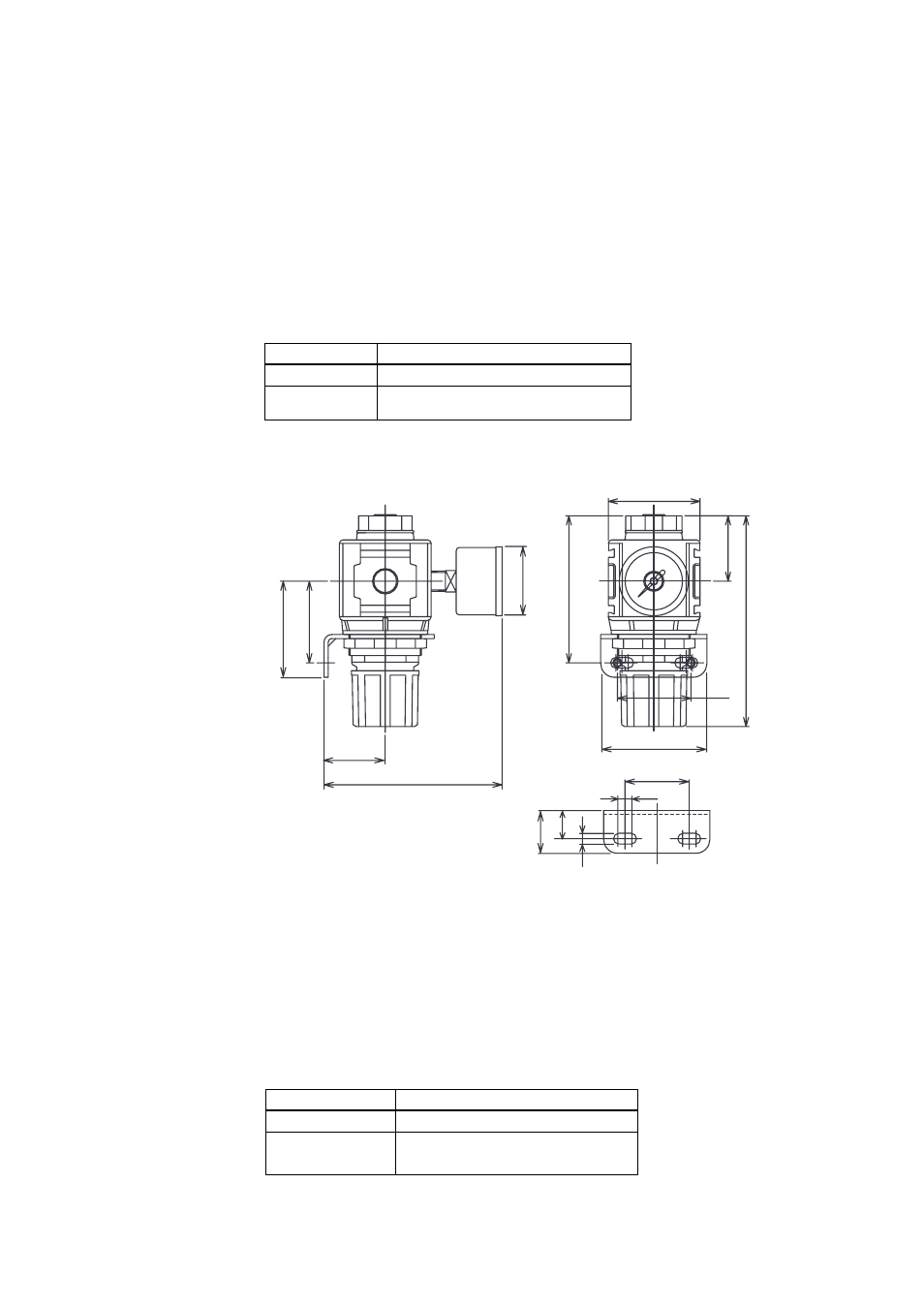

2.7.4 Air Set
This set is used to lower the pressure when instrument air is used as the reference and
span gases.
• Part No. K9473XH or K9473XJ
Standard Specifications
Primary Pressure:
Max. 2 MPa G
Secondary Pressure: 0 to 250 kPa G
Connection:
Rc1/4 or 1/4NPT with joint adapter
Weight: Approx. 1 kg
Joint: Rc 1/4, Material: Aluminum
Joint: 1/4 NPT (F),
Material: Body; Aluminum, Adapter; Zinc alloy
T2.11E.EPS
Part No.
K9473XH
K9473XJ
Description
60
48
(97)
(43.5)
(135.5)
(116)
(53.5)
8
42
28 18.5
7
40
69.5
Bracket Mounting Dimensions
л
54
IN OUT
(63)
K9473XH: Piping connection (IN: Primary side, OUT: Secondary side), Rc1/4
K9473XJ: Piping connection (IN: Primary side, OUT: Secondary side), 1/4NPT female
Unit: mm
Dimensions in parentheses are approximate.
F2.12E.EPS
• Part No. G7004XF or K9473XG
Standard Specifications
Primary Pressure:
Max. 1 MPa G
Secondary Pressure: 20 to 500 kPa G
Connection:
Rc1/4 or 1/4 NPT with joint adapter
Joint: Rc 1/4, Material: Zinc Alloy
Joint: 1/4 NPT (F),
Material: Body; Zinc Alloy, Adapter; SUS316
T2.12E.EPS
Part No.
G7004XF
K9473XG
Description
