IM 11M13A01-02E 3-12
A pipe to be mounted (nominal JIS 50A)
Bracket
Nut
Washer
Bolt
*Screw
*Washer
*Fitting
* Note: These fittings are attached to the equipment when it is delivered.
F3.08E.EPS
᭹ Mounting procedure
1. Put four bolts in the holes on the fitting.
2. Clamp the pipe with the fitting and a bracket,
with the four bolts passing through the bracket holes.
3. Secure the fitting and the bracket tightly to the pipe with
four washers and nuts.

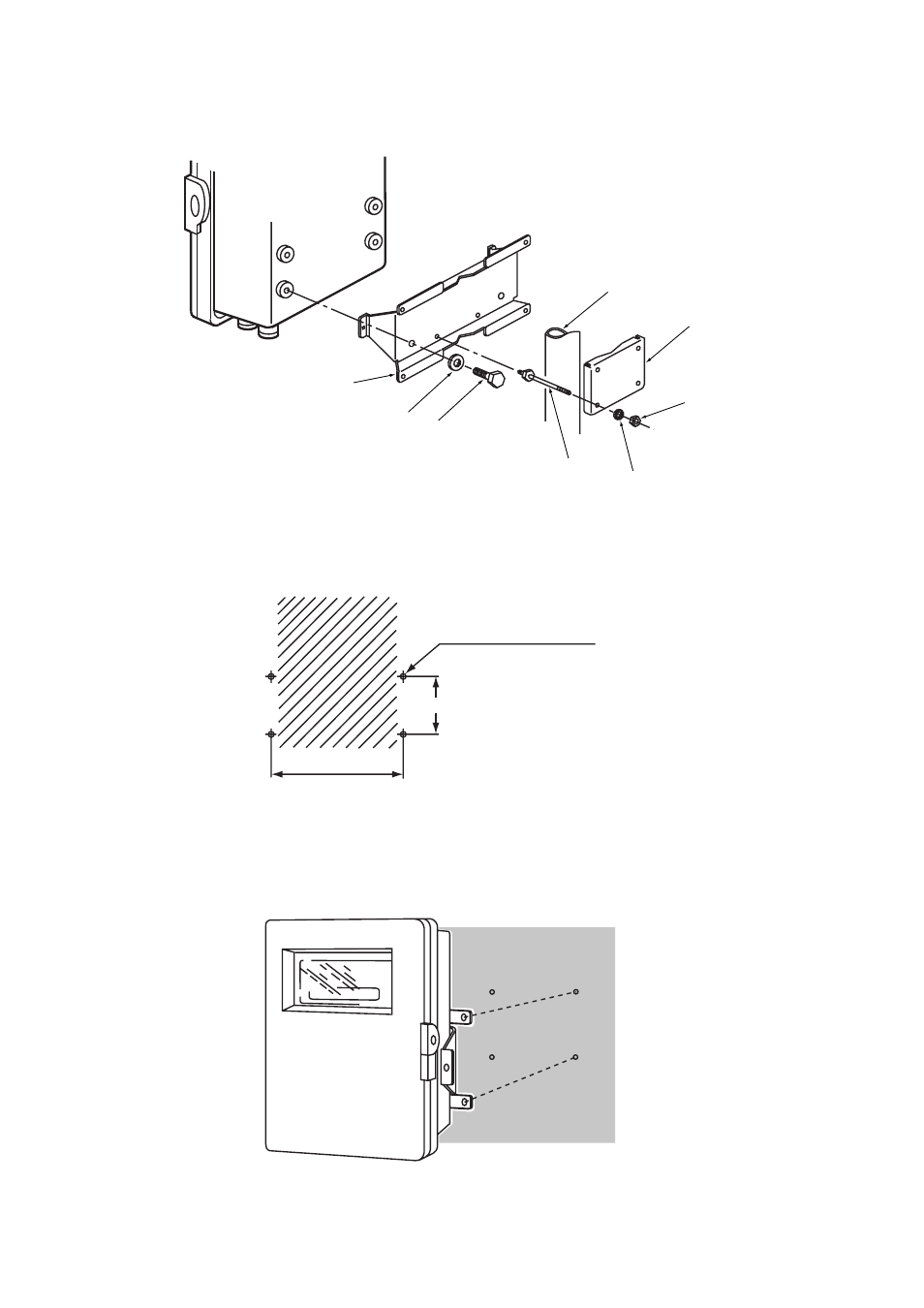

Figure 3.8 Pipe Mounting
(1) Drill mounting holes through the wall as shown in Figure 3.9.
190
126.5
Four holes 6 mm in diameter
for M5 screws
Unit: mm
F3.09E.EPS
Figure 3.9 Mounting holes
(2) Mount the converter. Secure the converter on the wall using four screws.
Note: For wall mounting, the bracket and bolts are not used.
F3.10E.EPS
Figure 3.10 Wall Mounting
