Watlow EZ-ZONE ® RMA Module • 72 • Chapter 8 Appendix

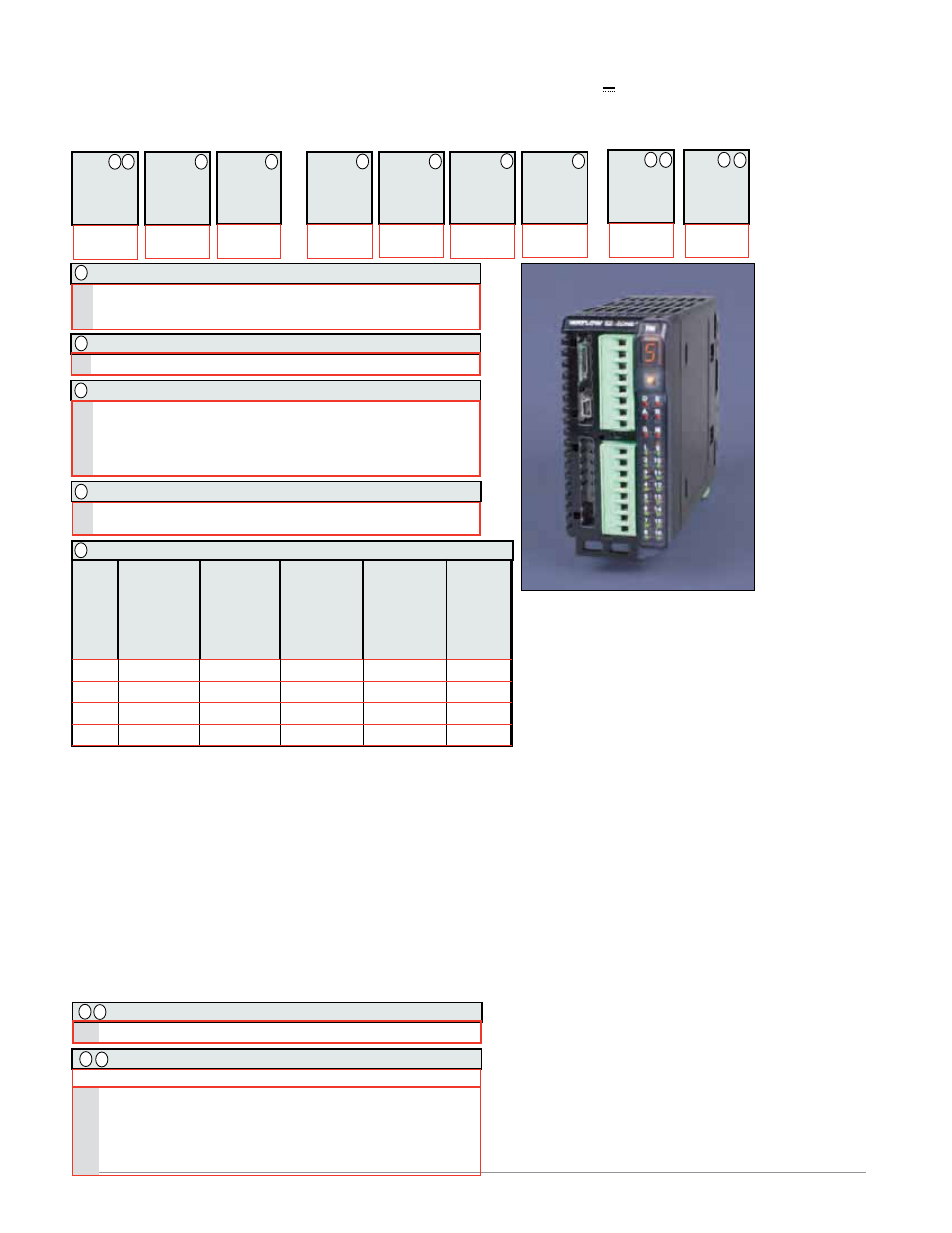

EZ-ZONE Rail-Mount Access Module Ordering Information
Code Number
USB Device Configuration: USB access to configuration files (and
data log files if data logging option is ordered) stored via on-board
SD memory card. PC access to product via Standard Bus protocol.
Auto-Configuration Backup: Limited fixed on board memory can
support backing up configuration files for a maximum of 4 modules.
The unlimited option utilizes a SD memory card to enable
configuration file backup for up to 16 modules. Feature can be used
for cloning configuration files to multiple modules or for easy field
replacement to limit downtime.
Data Logging: Data log files stored on 2G SD memory card. Data
files can be exported via USB communication port transfer or
removing SD card into external card reader. Watlow reserves the
right to ship a larger memory amount at any point in time.
Mobile Data:
Transfer configuration files (and data logging files
if data logging option is ordered) via removable SD memory card.
A = Right angle screw connector (standard)
F = Front screw connector
S = Custom
A = Standard
A = None
2 = Modbus ® RTU 232/485
3 = EtherNet/IP™, Modbus ®/TCP
5 = DeviceNet™
6 = Profibus DP
A = None
B = Battery backup and real time clock for profile ramp and soak
AA = Standard
Firmware, Overlays, Parameter Settings
AA = Standard
AB = Replacement connectors hardware only, for the entered
model number
12 = Class 1, Div. 2 (not available with integrated limit controller
or mechanical relay options)
XX = Custom
RM A A AA
- -
EZ-ZONE
Rail Mount
Access
Module
Connector
Style
Future
Options
Comms.
Options
Ramp/Soak
Functions
Sys. Conf.
& Data
Logging
Options
Future
Options
Additional
Options
A
B
Y
D
Order
Option
Limited
Configuration
File Back-up,
Maximum 4
Modules
USB “Device”
Comms.
Unlimited Auto-
Configuration
File Back-up,
Maximum 16
Modules
On-Board
Data Logging
Mobile
Data
Future Options
Additional Options
System Configuration & Data Logging Options
Ramp/Soak Functions
Connector Style
Future Options
Communications Options
Access module requires a Class 2 or SELV power supply 20.4 to 30.8 V ~(ac) / (dc), communication
port for configuration with EZ-ZONE Configurator software.
3 4 5 6 7 8 9 10 2 11 12 1
4
5
6
7
8
9 10
11 12
