Watlow EZ-ZONE ® RMA Module • 8 • Chapter 2 Install and Wire
Dimensions
(2.03 in)
51.56 mm
(.66 in)
16.76 mm
(2.31 in)
58.67 mm
(.69 in)
17.53 mm
(2.38 in)
60.45 mm
(1.41 in)
35.81 mm
(1.38 in)
35.05 mm
(1.29 in)
32.77 mm

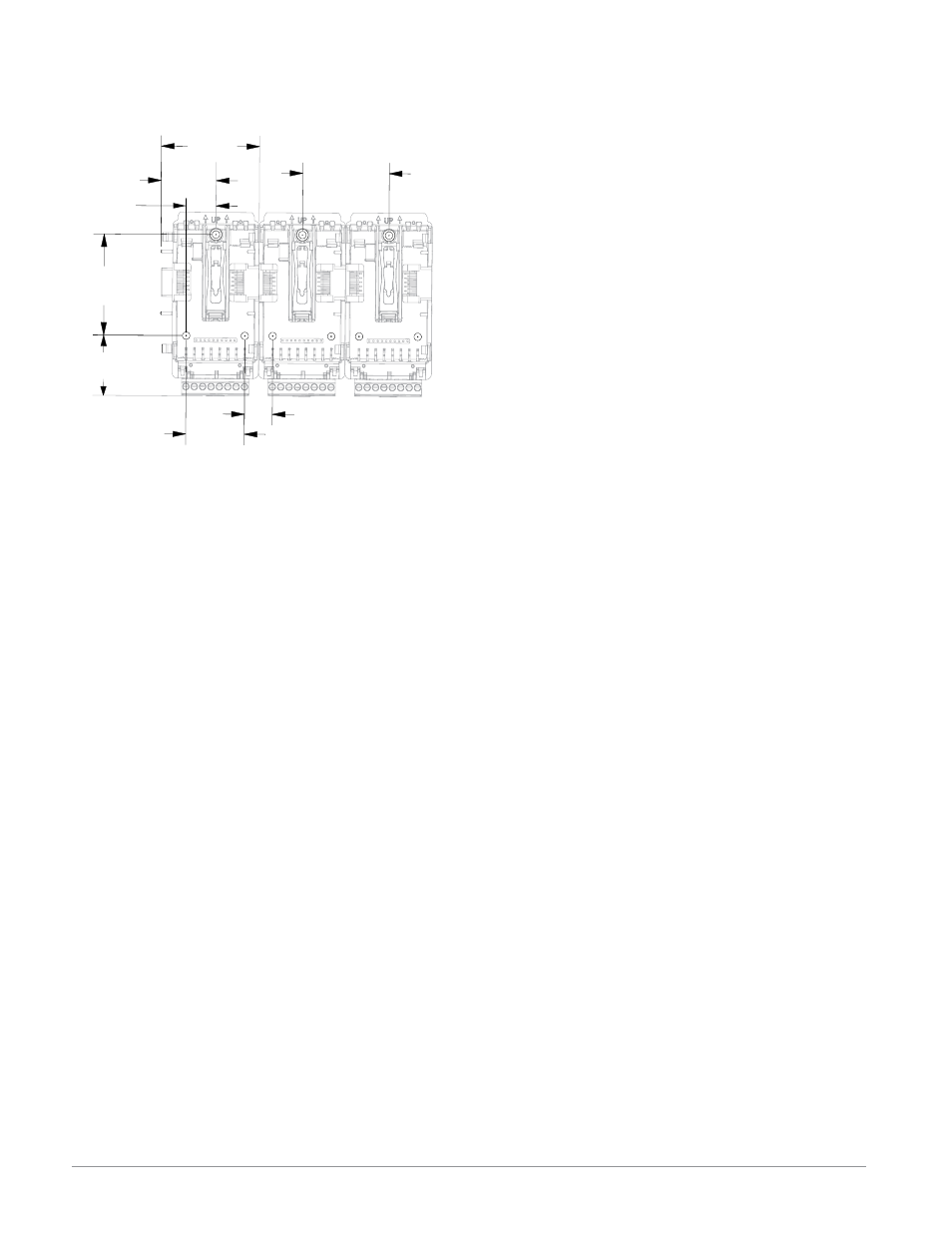

Chassis Mount Front View (Module Removed) - Screw Connection Pattern
Recommended chassis mount hardware:
1. #8 screw, 3/4" long
2. Torque to 10 -15 in-lb
3. No washers of any kind
The view above is representative of the modular backplane without the module.
