Watlow EZ-ZONE ® RMA Module • 7 • Chapter 2 Install and Wire

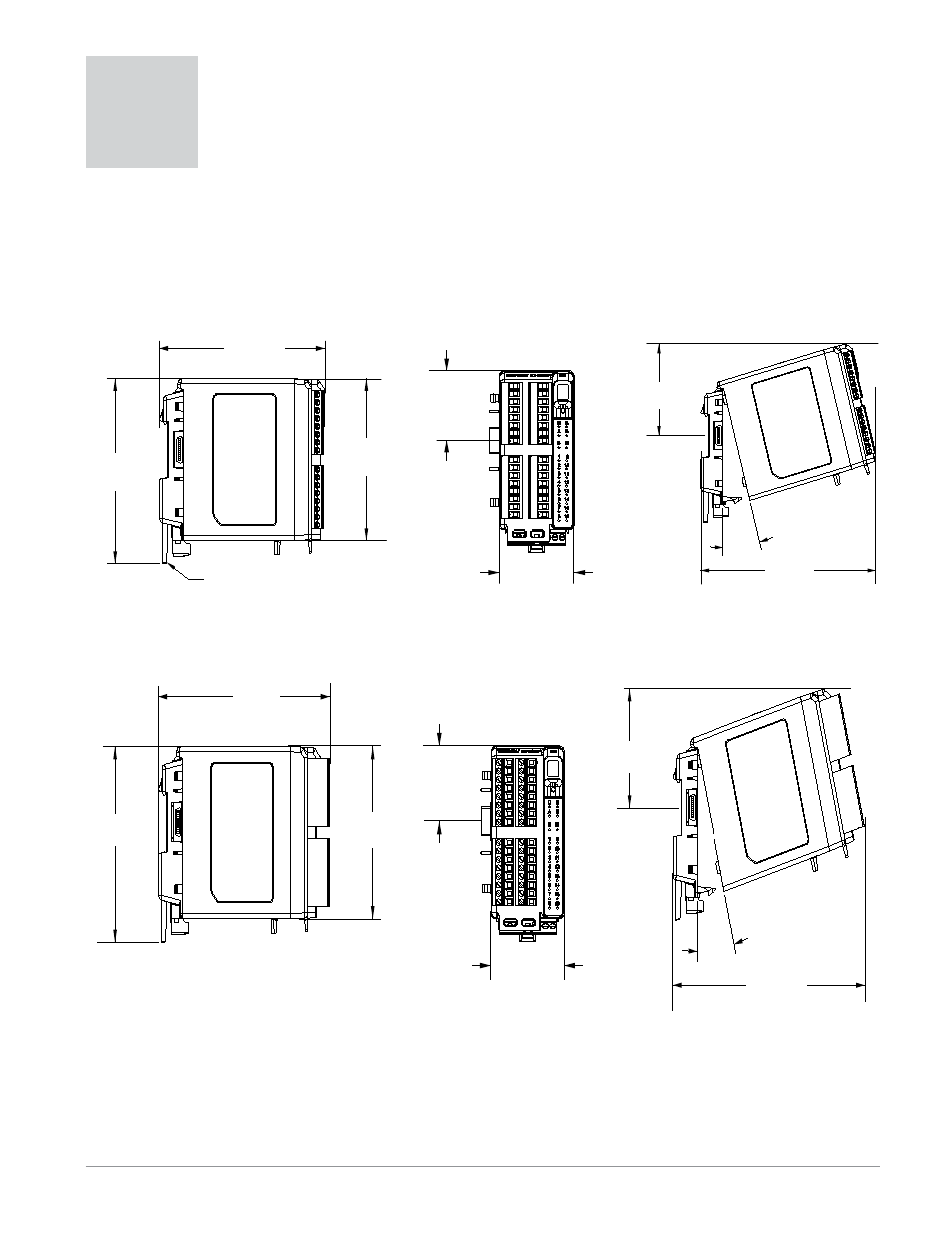

Dimensions
Module Removal Clearance Straight Connectors
Module Removal Clearance Standard Connectors
As can be seen below the dimensions of the RM system will change slightly based on the type of connector
used.
147.07 mm
( 5.8 in )
116.08 mm
( 4.57 in )
101.60 mm
( 4.00 in )
44.45 mm
( 1.75 in )
51.56 mm
( 2.03 in )
75.08 mm
( 3.0 in )
150
165 mm
( 6.50 in )
Module Removal Displacement
Latch in open position
155 mm
( 6.10 in )
116.08 mm
( 4.57 in )
101.60 mm
( 4.00 in )
44.45 mm
( 1.75 in )
51.56 mm
( 2.03 in )
75.08 mm
( 3.0 in )
15 °
173.90 mm
( 6.85 in )
Module Removal Displacement
