Watlow EZ-ZONE ® RMA Module • 44 • Chapter 6 Features
In the previous screen shot the RMA is shown high-
lighted to bring greater clarity to the module in fo-
cus. Any EZ-ZONE device on the network will appear
in this window and would be available for the pur-
pose of configuration or monitoring. After clicking on
the module of choice simply click the next button once
again. The next screen appears below.

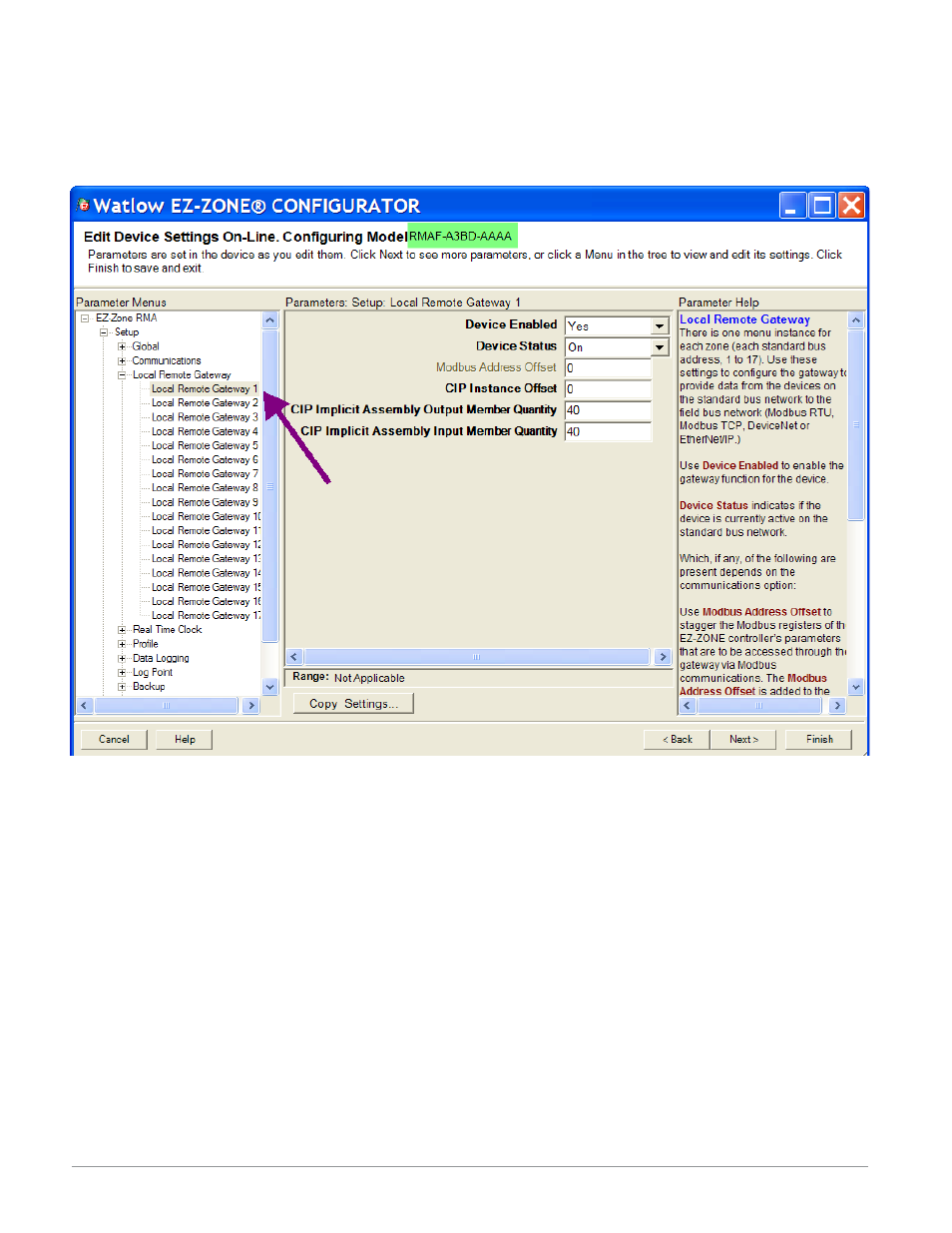

In the screen shot above notice that the device part
number is clearly displayed at the top of the page
(green highlight added for emphasis). When multiple
EZ-ZONE devices are on the network it is important
that the part number be noted prior to configuring so
as to avoid making unwanted configuration changes
to another control.
Looking closely at the left hand column (Parameter
Menus) notice that it displays all of the available
menus and associated parameters within the control.
The menu structure as laid out within this software
follows:
- Setup
- Operations
- Factory
Navigating from one menu to the next is easy and
clearly visible. Simply slide the scroll bar up or down
to display the menu and parameter of choice. As an
alternative, clicking on the negative symbol next to
Setup will collapse the Setup Menu where the Op-
erations Menu will appear next and perhaps deliver
more clarity for the area of focus by not displaying
unwanted menus and parameters. Once the focus is
brought to an individual parameter (single click of
mouse) as is the case for Local Remote Gateway 1 in
the left column, all that can be setup related to that
parameter will appear in the center column. The
grayed out field in the center column simply means
that those parameters do not apply. In this particular
case, Modbus TCP Enable has been set to No under
the Communications Menu, therefore, it is not pos-
sible to define the Modbus Address Offset. To speed
up the process of configuration notice that at the bot-
tom of the center column there is an option to copy
settings. If Gateway 1, 2 and 3 will be configured the
same click on "Copy Settings" where a copy from / to
dialog box will appear allowing for quick duplication
of all settings. Notice too, that by clicking on any of
those items in the center column that context sensi-
tive help will appear for that particular item in the
right hand column.
