MAPware-7000 Ladder Logic Guide 66
1010-1041 rev. 00

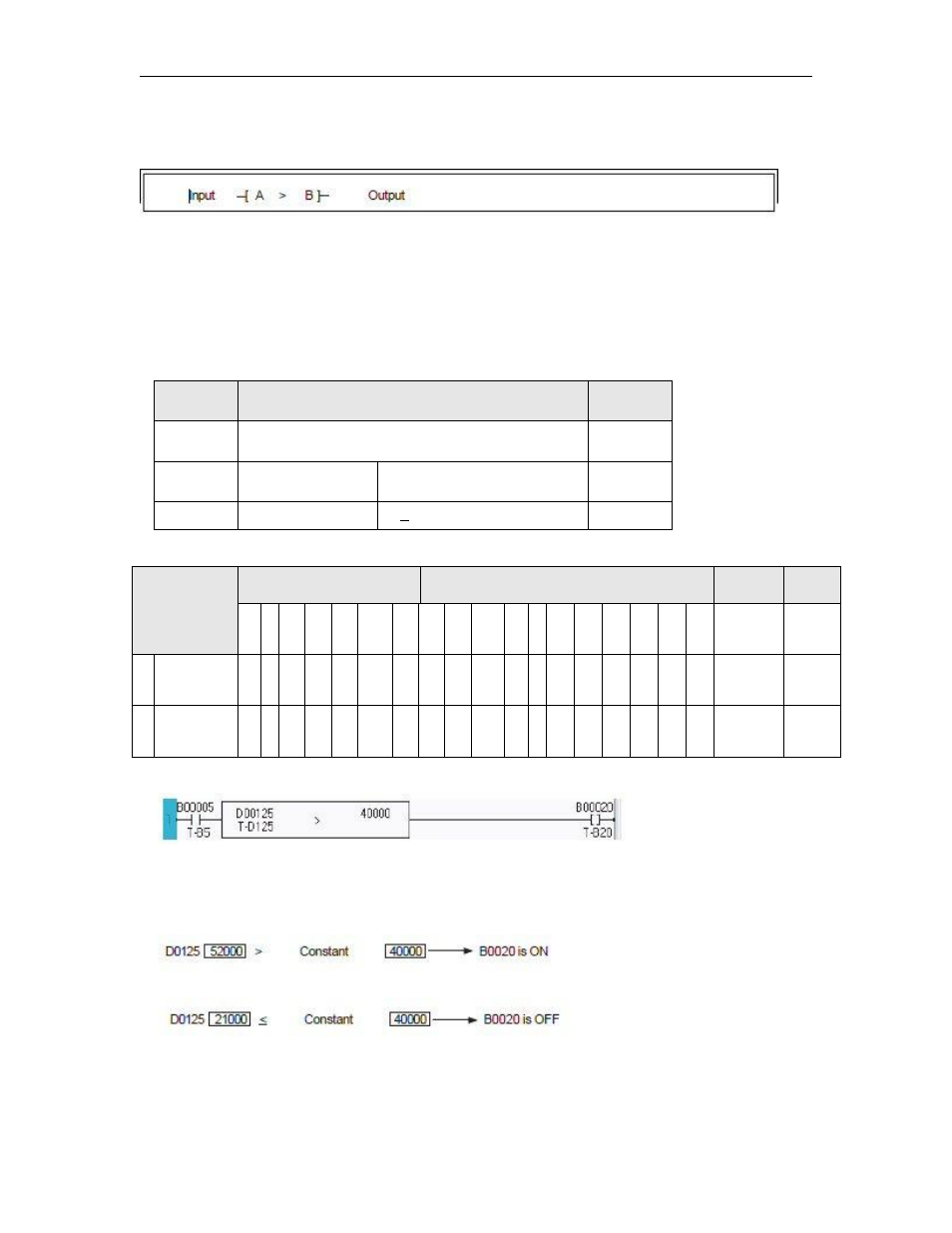

Instruction 37- Unsigned Word Greater Than
Expression:
Space Requirement: 1 line x 5 column Location Requirement: Middle, Right rail
Function:
When the input is ON, the data of A and the data of B are compared, and if A is greater than B,
the output is turned ON.
Execution Condition:
Input Operation Output
OFF No execution OFF
ON Execution A > B ON
A < B OFF
Operand:
Coil or Bit Register Constant Index
Name X Y B S T. C. M
X
W Y
W B
W S
W
T C D I J K
M
W
A
Compared
Data
√ √ √ √ √ √ √ √ √ √ √ √
B
Reference
Data
√ √ √ √ √ √ √ √ √ √ √ √
Example:
When B0005 is ON, the data of D0125 is compared with the constant data 40000, and if the data
of D0125 is greater than 40000, B0020 is turned ON.
If the data of D0125 is 52000, the comparison result is true. Consequently, B0020 is turned ON.
If the data of D0125 is 21000, the comparison result is false. Consequently, B0005 is turned OFF.
Note
This instruction deals with the data as unsigned integer (0 to 65535).
