171 MAPware-7000 Ladder Logic Guide
1010-1041 rev. 00

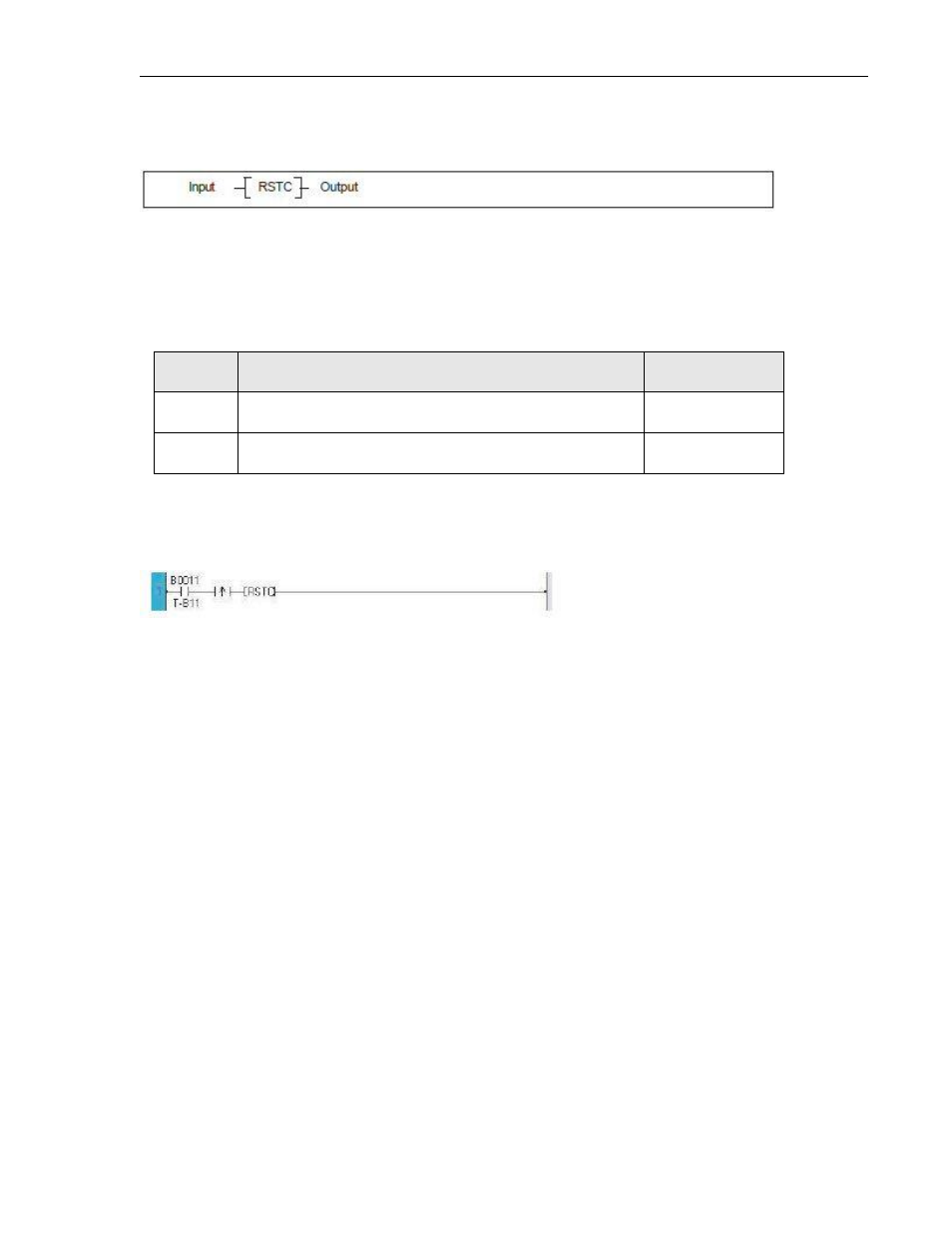

Instruction 107- Reset Carry
Expression:
Space Requirement: 1 line x 3 column Location Requirement: Middle, Right rail
Function:
When the input is ON, the carry flag (CF = S000) is reset to OFF.
Execution Condition:
Input Operation Output
OFF No execution OFF
ON Execution ON
Operand:
No operand is required.
Example:
When B011 is changed from OFF to ON, the carry flag S000 is reset to OFF.
