MAPware-7000 Ladder Logic Guide 30
1010-1041 rev. 00

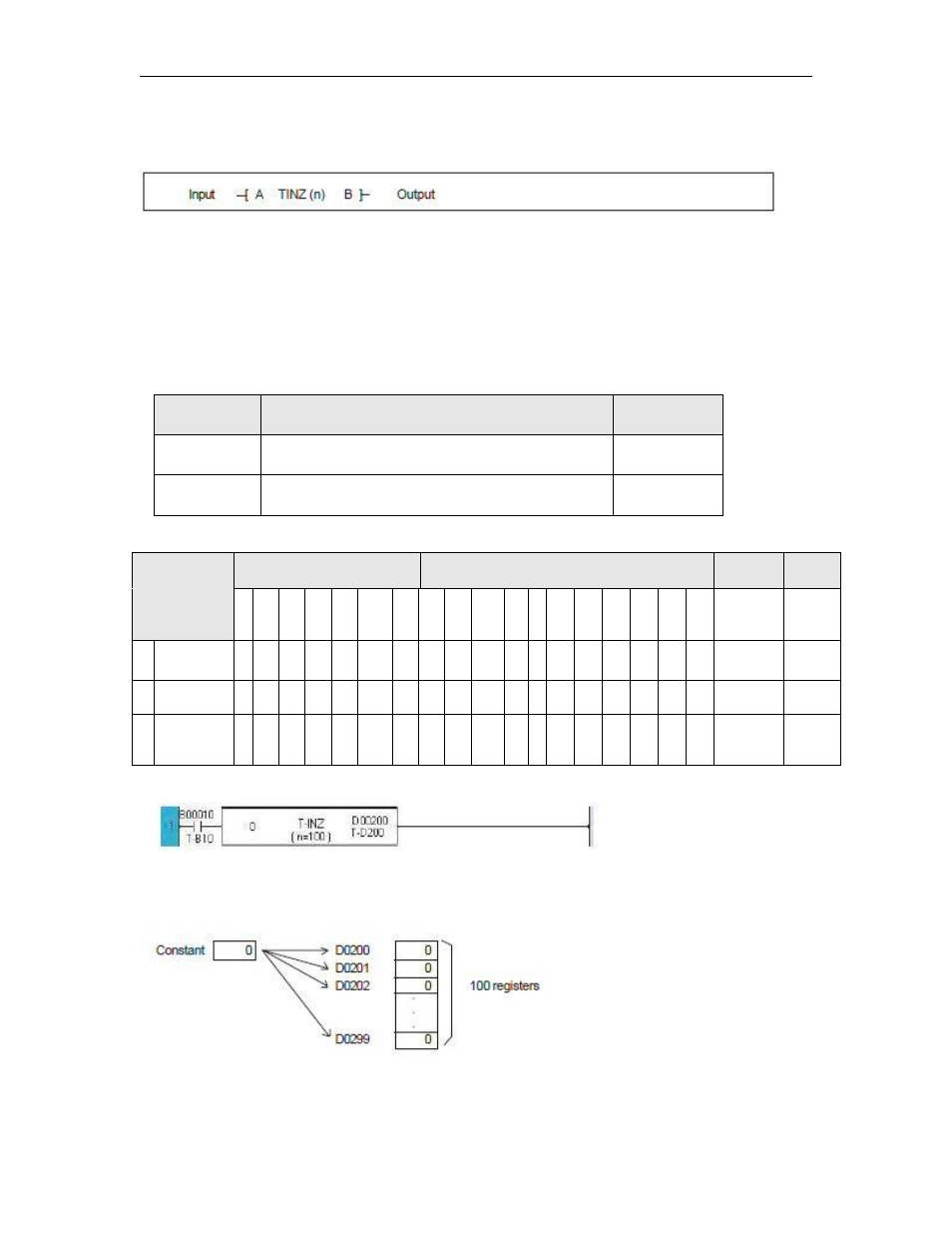

Instruction 16- Table Initialize
Expression:
Space Requirement: 1 line x 5 column Location Requirement: Middle, Right rail
Function:
When the input is ON, the data of A is stored in n registers starting with B.
The allowable range of the table size n is 1 to 1024 words.
Execution Condition:
Input Operation Output
OFF No execution OFF
ON Execution ON
Operand:
Coil or Bit Register Constant Index
Name X Y B S T. C. M
X
W Y
W B
W S
W
T C D I J K
M
W
A Source √ √ √ √ √ √ √ √ √ √
n Table Size 1-1024
B
Start of
Destination
√ √ √ √ √ √
Example:
When B010 is ON, a constant data (0) is stored in 100 registers starting with D0200 (D0200 to
D0299) and the output is turned ON.
