Instruction 106- Set Carry

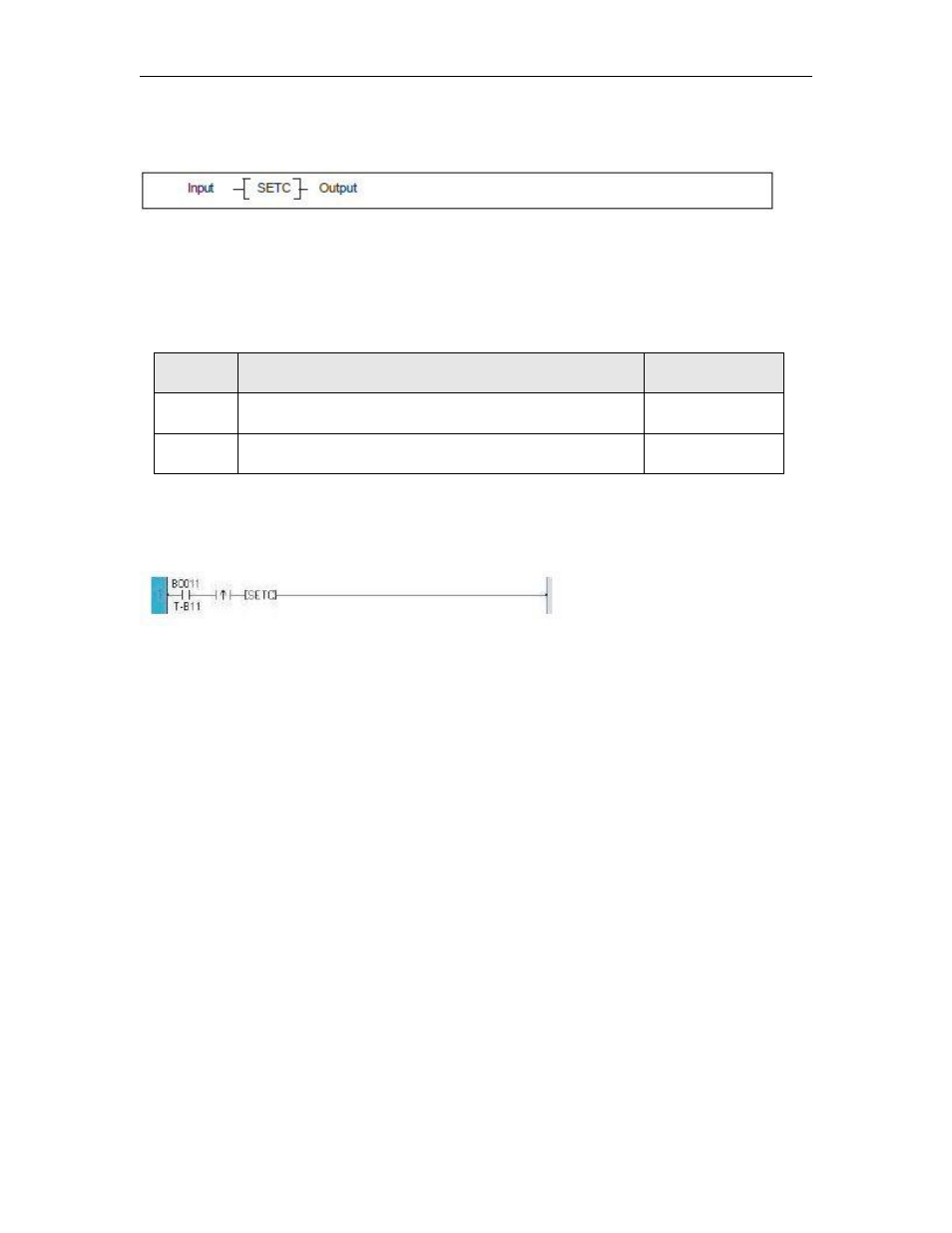

Expression:
Space Requirement: 1 line x 1 column Location Requirement: Middle, Right rail
Function:
When the input is ON, the carry flag (CF = S000) is set to ON.
Execution Condition:
Input Operation Output
OFF No execution OFF
ON Execution ON
Operand:
No operand is required.
Example:
When B011 is changed from OFF to ON, the carry flag S000 is set to ON.
