MAPware-7000 Ladder Logic Guide 162
1010-1041 rev. 00

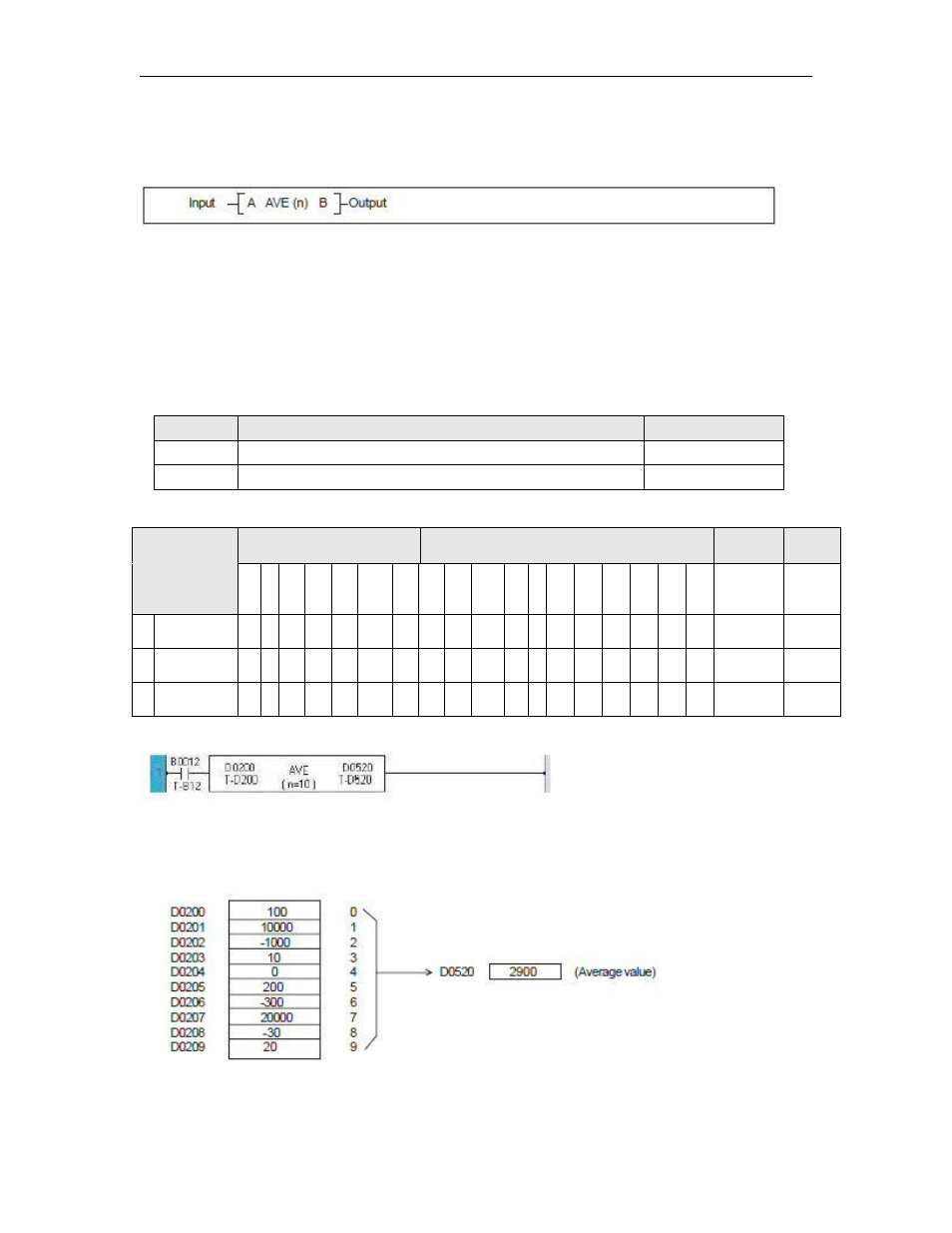

Instruction 100- Average Value
Expression:
Space Requirement: 1 line x 5 column Location Requirement: Middle, Right rail
Function:
When the input is ON, this instruction calculates the average value of the data stored in the n
registers starting with A, and stores the average value in B. The allowable range of the table size
n is 1 to 64.
Execution Condition:
Input Operation Output
OFF No execution OFF
ON Execution ON
Operand:
Coil or Bit Register Constant Index
Name X Y B S T. C. M
X
W Y
W B
W S
W
T C D I J K
M
W
A Start of table √ √ √ √ √ √ √
N Table size 1-64
B Result √ √ √ √ √ √ √ √ √
Example:
When B012 is ON, the average value of the data stored in the register table D0200 to D0209 (10
words), and the average value is stored in D0520.
