MAPware-7000 Ladder Logic Guide 168
1010-1041 rev. 00

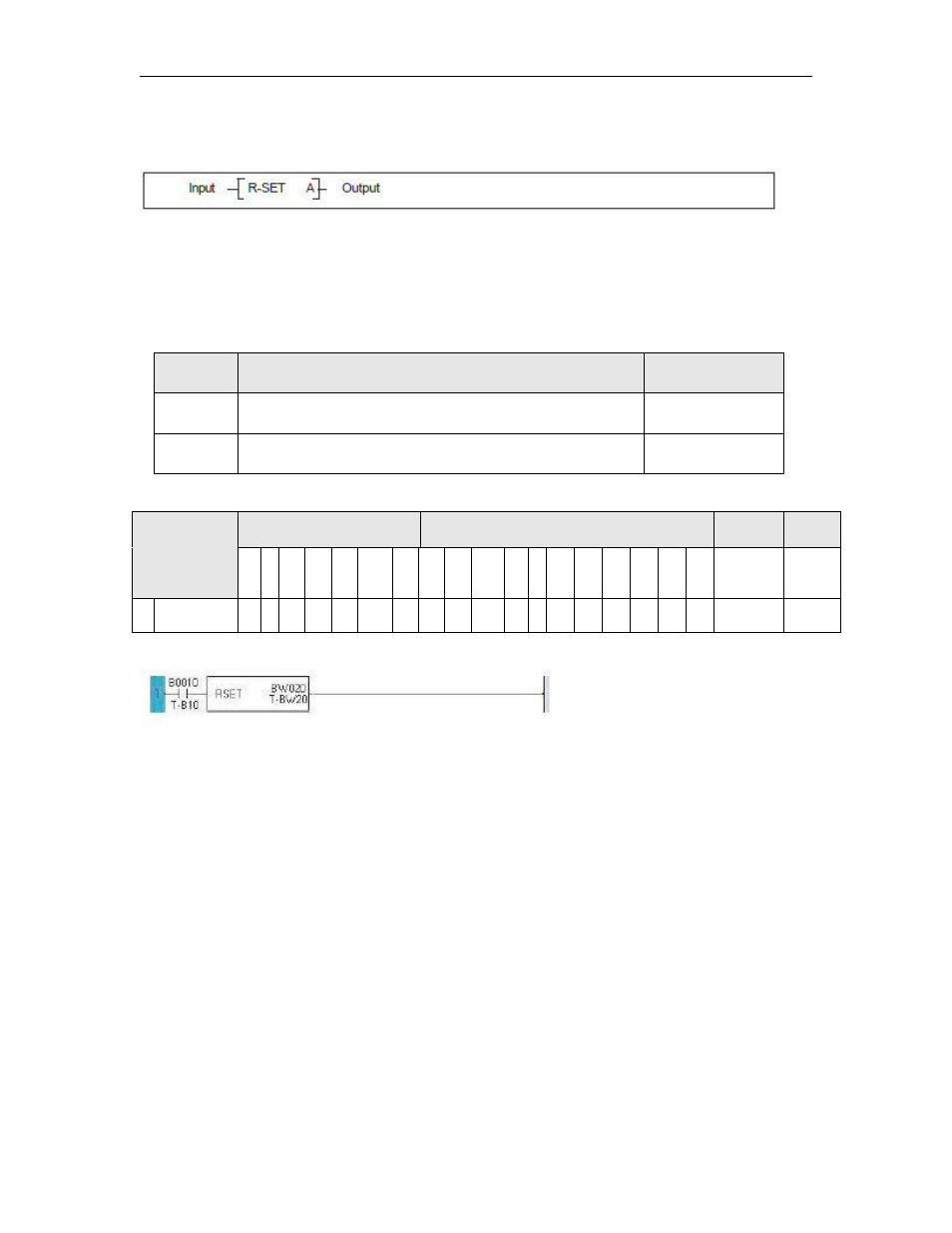

Instruction 104- Register Set
Expression:
Space Requirement: 1 line x 3 column Location Requirement: Middle, Right rail
Function:
When the input is ON, the data 0xFFFF is stored in Operand A.
Execution Condition:
Input Operation Output
OFF No execution OFF
ON Execution ON
Operand:
Coil or Bit Register Constant Index
Name X Y B S T. C. M
X
W Y
W B
W S
W
T C D I J K
M
W
A Device √ √ √ √ √ √ √ √ √
Example:
When B010 is ON, the data 0xFFFF is stored in BW20. (B320 to B335 are set to ON). The state of
BW20 remains even if B010 is set to OFF.
