21 MAPware-7000 Ladder Logic Guide
1010-1041 rev. 00

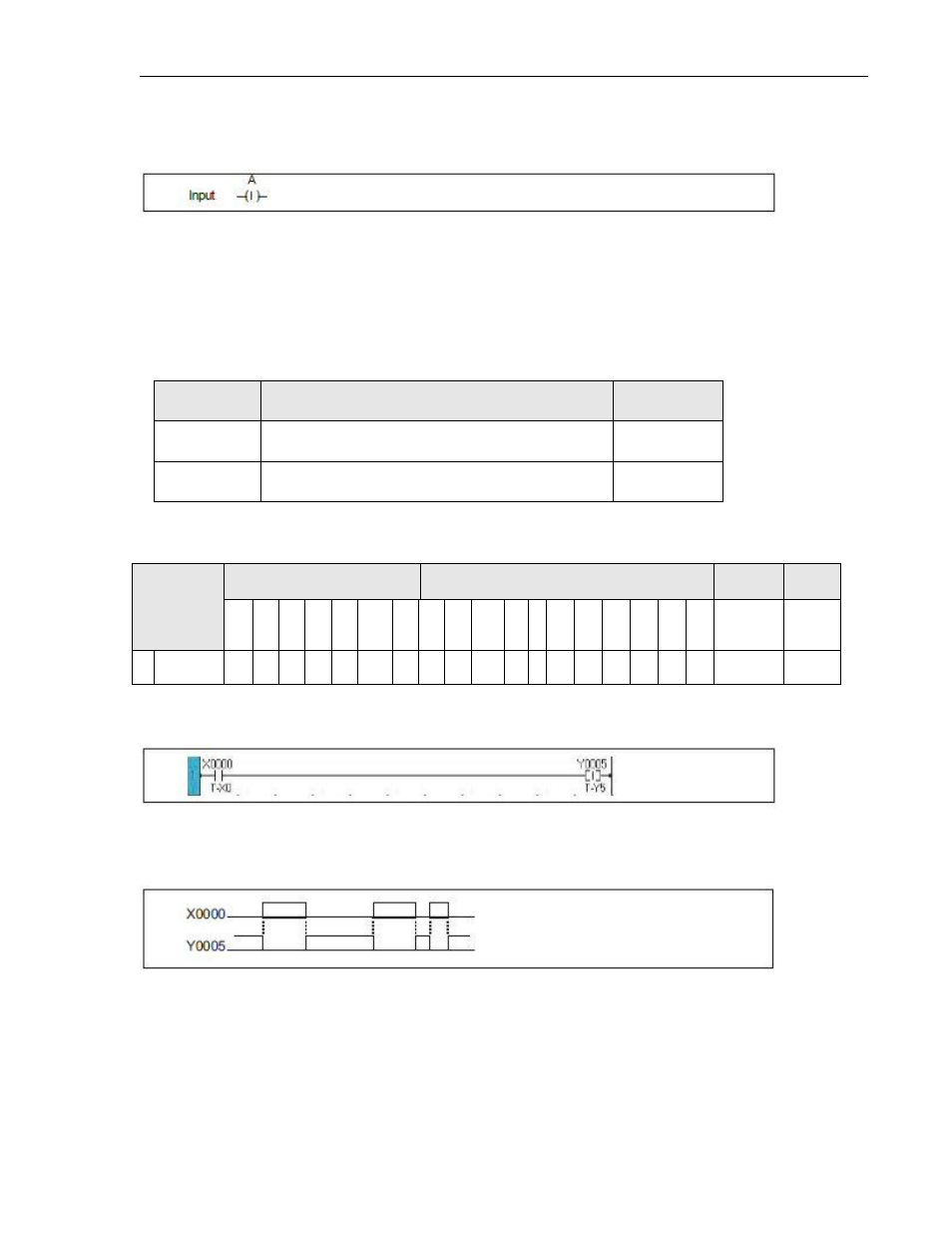

Instruction 8- Inverter Coil
Expression:
Space Requirement: 1 line x 1 column Location Requirement: Right rail
Function:
When the input is OFF, the device A is set to ON, and when the input is ON, the device A is set to
OFF. This instruction inverts the input state and stores it in device A.
Execution Condition:
Input Operation Output
OFF Sets device A ON. ---
ON Sets device A OFF. ---
Operand:
Coil or Bit Register Constant Index
Name X Y B S T. C. M
X
W Y
W B
W S
W
T C D I J K
M
W
A Device √ √ √
Example:
Timing Diagram:
Device Y0005 comes ON when X0000 is OFF, and Y0005 comes OFF when X0000 is ON .
