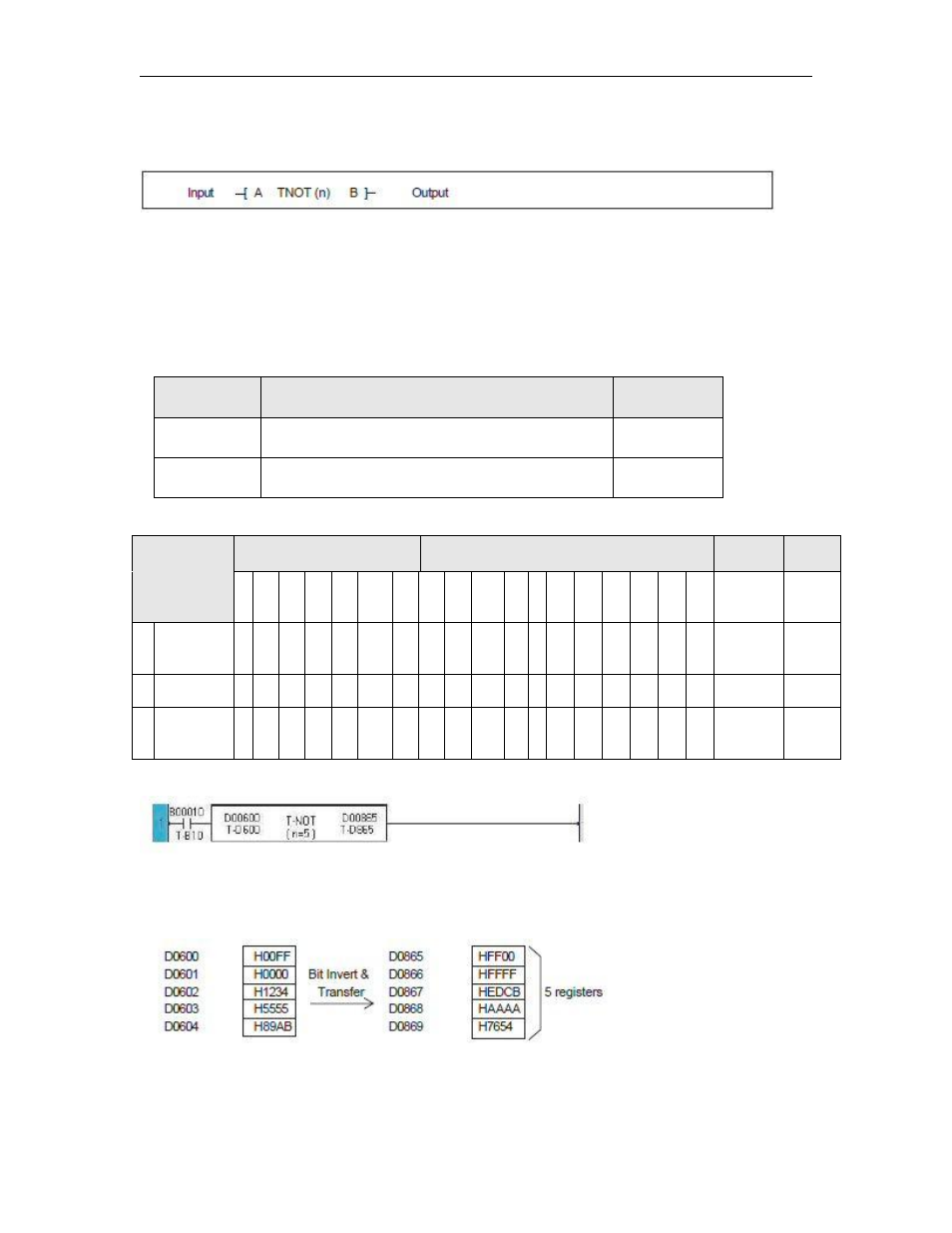

Instruction 18- Table Invert Transfer
Expression:
Space Requirement: 1 line x 5 column Location Requirement: Middle, Right rail
Function:
When the input is ON, the data of n registers starting with A are bit-inverted and transferred to
n registers starting with B in a block. The allowable range of the table size n is 1 to 1024 words.
Execution Condition:
Input Operation Output
OFF No execution OFF
ON Execution ON
Operand:
Coil or Bit Register Constant Index
Name X Y B S T. C. M
X
W Y
W B
W S
W
T C D I J K
M
W
A
Start of
Source
√ √ √ √ √ √ √
n Table Size 1-1024
B
Start of
Destination
√ √ √ √ √ √
Example:
When B010 is ON, the data of D0600 to D0604 (5 registers) are bit-inverted and transferred to
D0865 to D0869, and the output is turned ON.
Note: The source and destination tables can overlap.
