HMC7000 Series I/O Module Guide

Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com

.

1010-1043

Page 78 of 85

Rev. 02, 11/08/2013

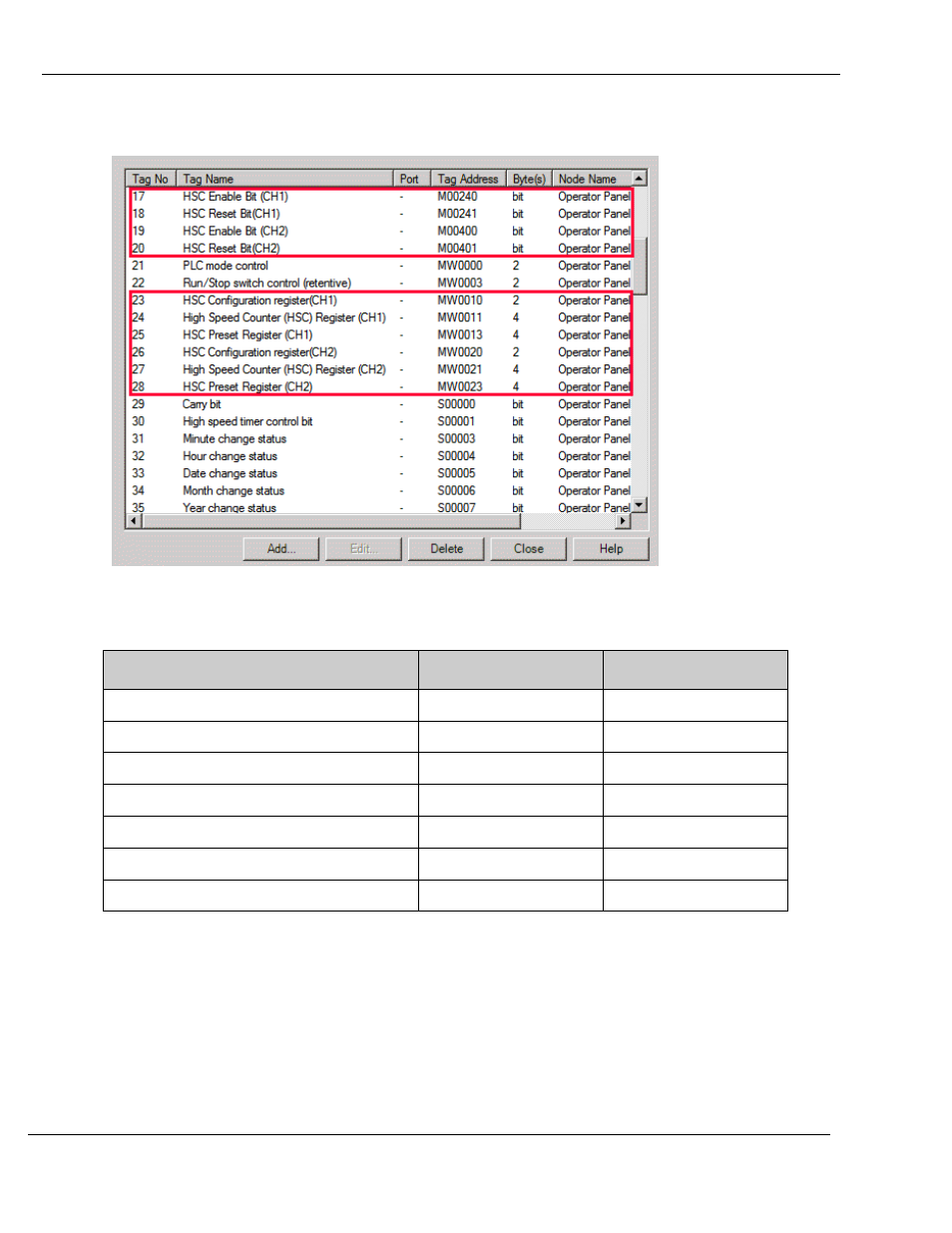

These tags are assigned automatically when a project is created:


















For products with Modular I/O (Requires the HMC7-MIO-01 or HMC7-MIO-02 module

)1

Function

Counter 1

Counter 2

Trigger Bit

X n000

Xn005

Done Bit

Yn001

Yn006

Enable Bit

Mn080

Mn176

Reset Bit (Internal, Physical)

Mn081, Xn001

Mn177, Xn006

Configuration Register

MWn00

MWn06

Current Count Register (LSW, MSW)

MWn01, MWn02

MWn07, MWn08

Preset Register (LSW, MSW)

MWn03, MWn04

MWn09, MWn10

Notes:

1. n is the slot in which the module is installed.
