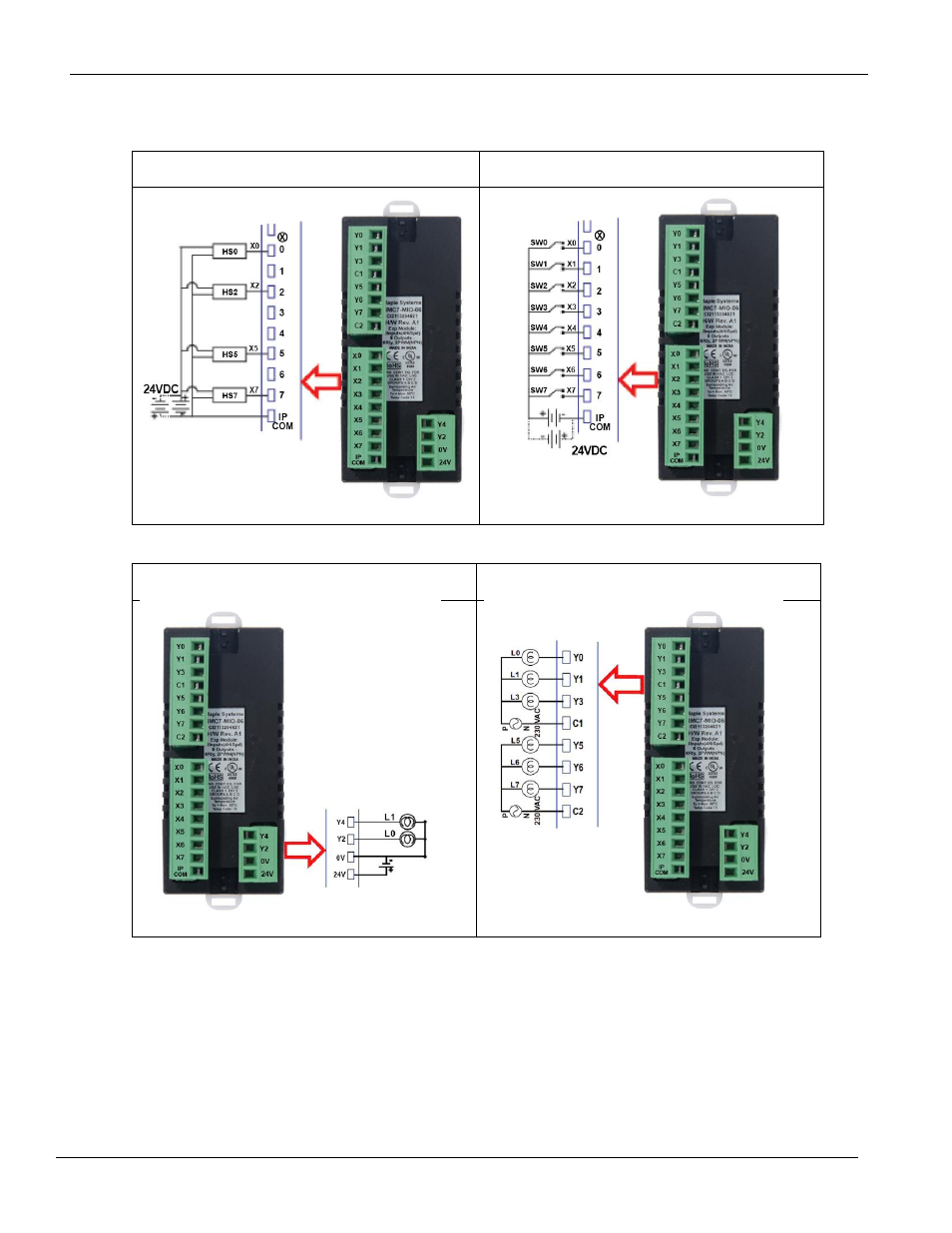

Wiring:
For connecting to high-speed inputs:
For connecting to normal inputs:
For connecting to PWM outputs:
For connecting to relay outputs:
