HMC7000 Series I/O Module Guide

Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com

.

1010-1043

Page 29 of 85

Rev. 02, 11/08/2013

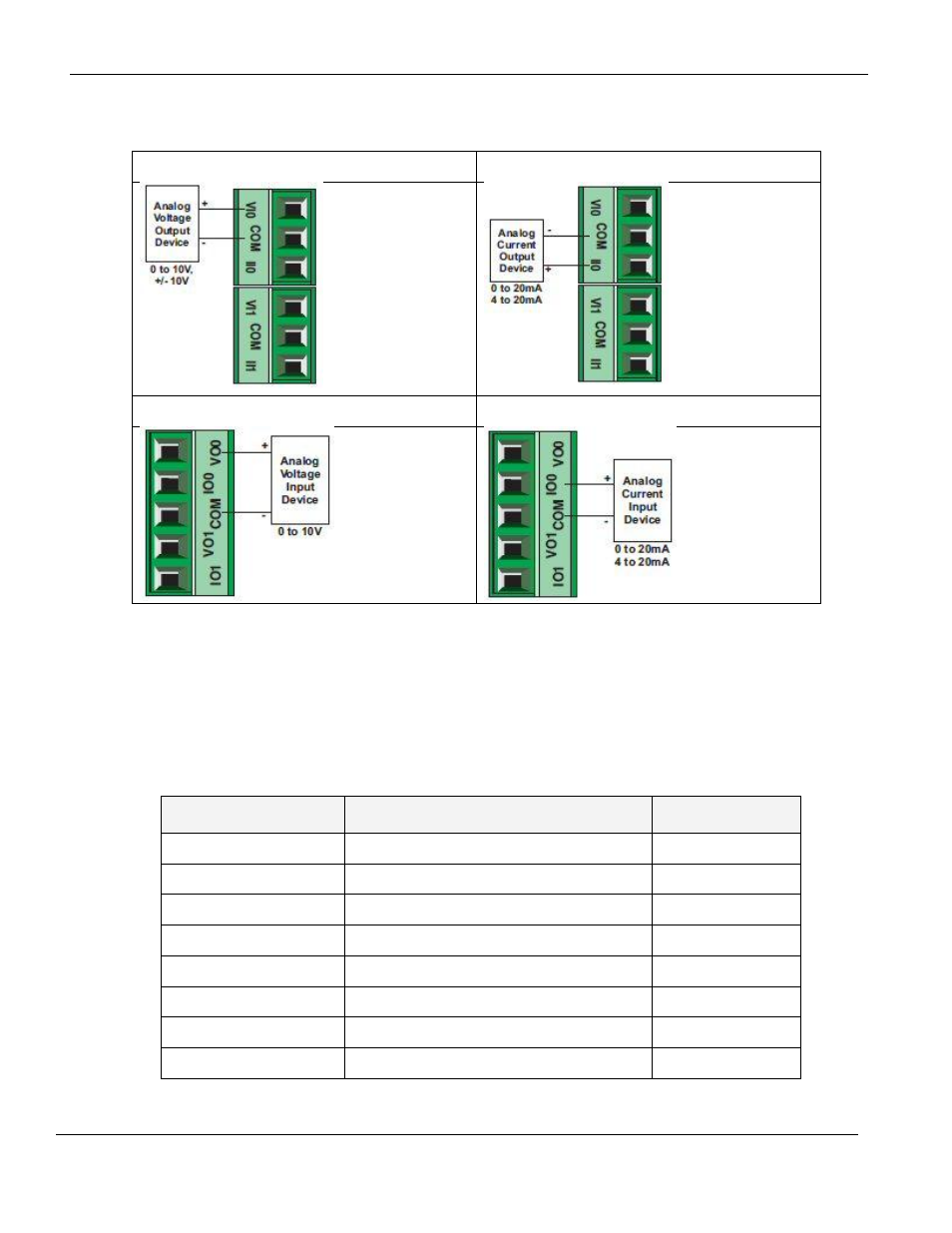

Wiring:

For connecting to analog voltage inputs:

For connecting to analog current inputs:

Connecting to analog voltage outputs:

Connecting to analog current outputs:

Configuration:

Use MAPware-7000 to assign input (XW), output (YW), and configuration (MW) memory addresses to the
module. These addresses are created according to the slot location of the module, where nn refers to the
slot number:

Register

Description

Access

XWnn00

Input Channel 1 Data

Read Only

XWnn01

Input Channel 2 Data

Read Only

YWnn00

Output Channel 1 Data

Read/Write

YWnn01

Output Channel 2 Data

Read/Write

MWnn00

Input Channel 1 Configuration Register

Read/Write

MWnn01

Input Channel 2 Configuration Register

Read/Write

MWnn02

Output Channel 1 Configuration Register

Read/Write

MWnn03

Output Channel 2 Configuration Register

Read/Write
