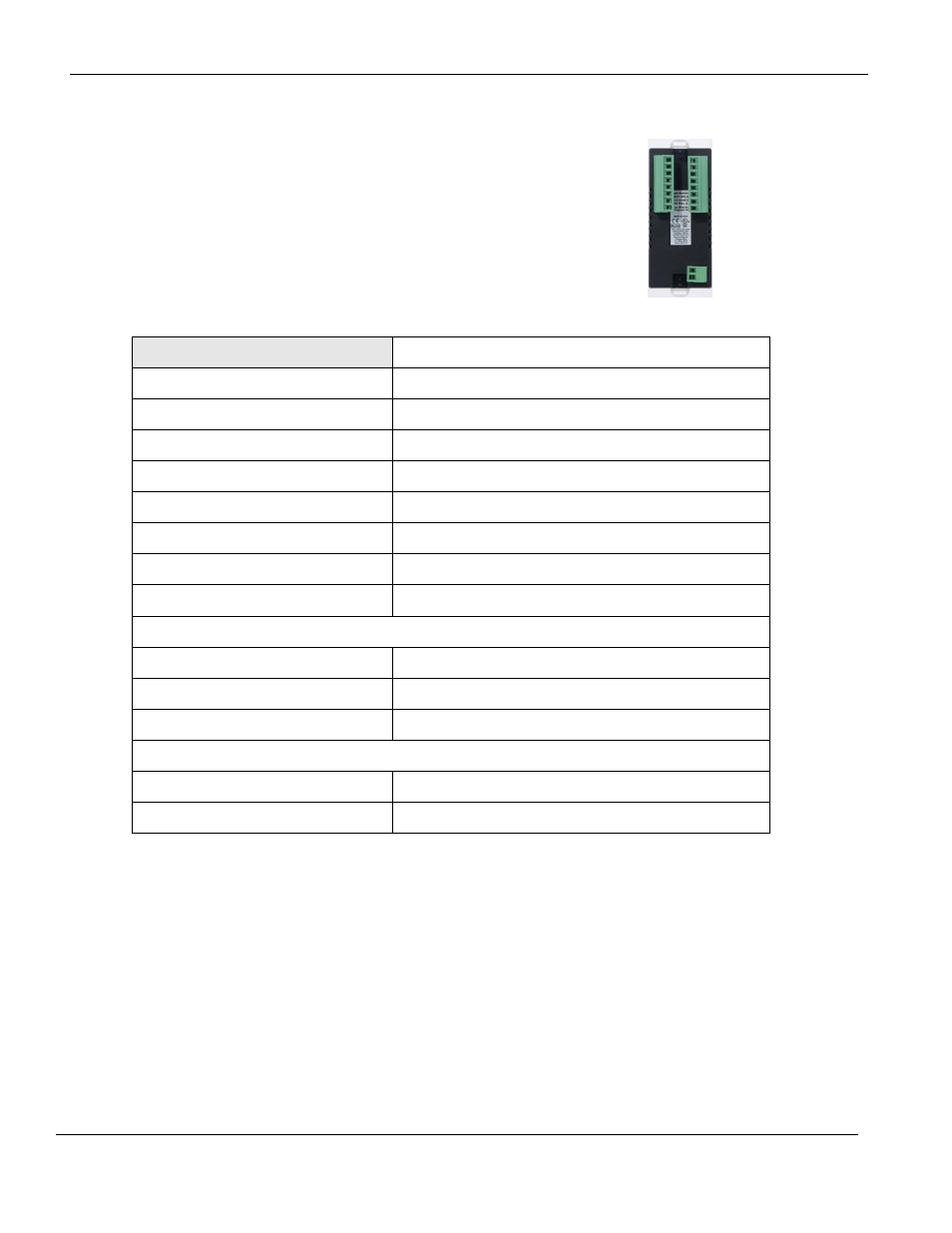

HMC7-MO-03 (16 Sourcing Output Module)
This module is a digital output module for the HMC7000
Series models. It has 16 sourcing (PNP) outputs.
Specifications:
Power
3.9 VDC from HMC7000 base
Approvals
CE, UL
Digital Outputs
16 sourcing (PNP) outputs
Turn ON Time
10 msec
Turn OFF Time
10 msec
Output Capacity
500mA per output maximum
Rated load
500mA @ 24VDC
Total output capacity
4A @ 24VDC
Connection method
Removable terminals (3.81 mm pitch)
General
Operating Temperature
0 to 55°C
Operating Humidity
10% to 90% (non condensing)
Mechanical Dimension (LxWxH)
3.11x1.18x1.42 inches [79x30x36mm]
Input Power Supply
Input Voltage
24VDC
Input Current
850mA maximum
