HMC7000 Series I/O Module Guide
Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com .
1010-1043 Page 3 of 85 Rev. 02, 11/08/2013

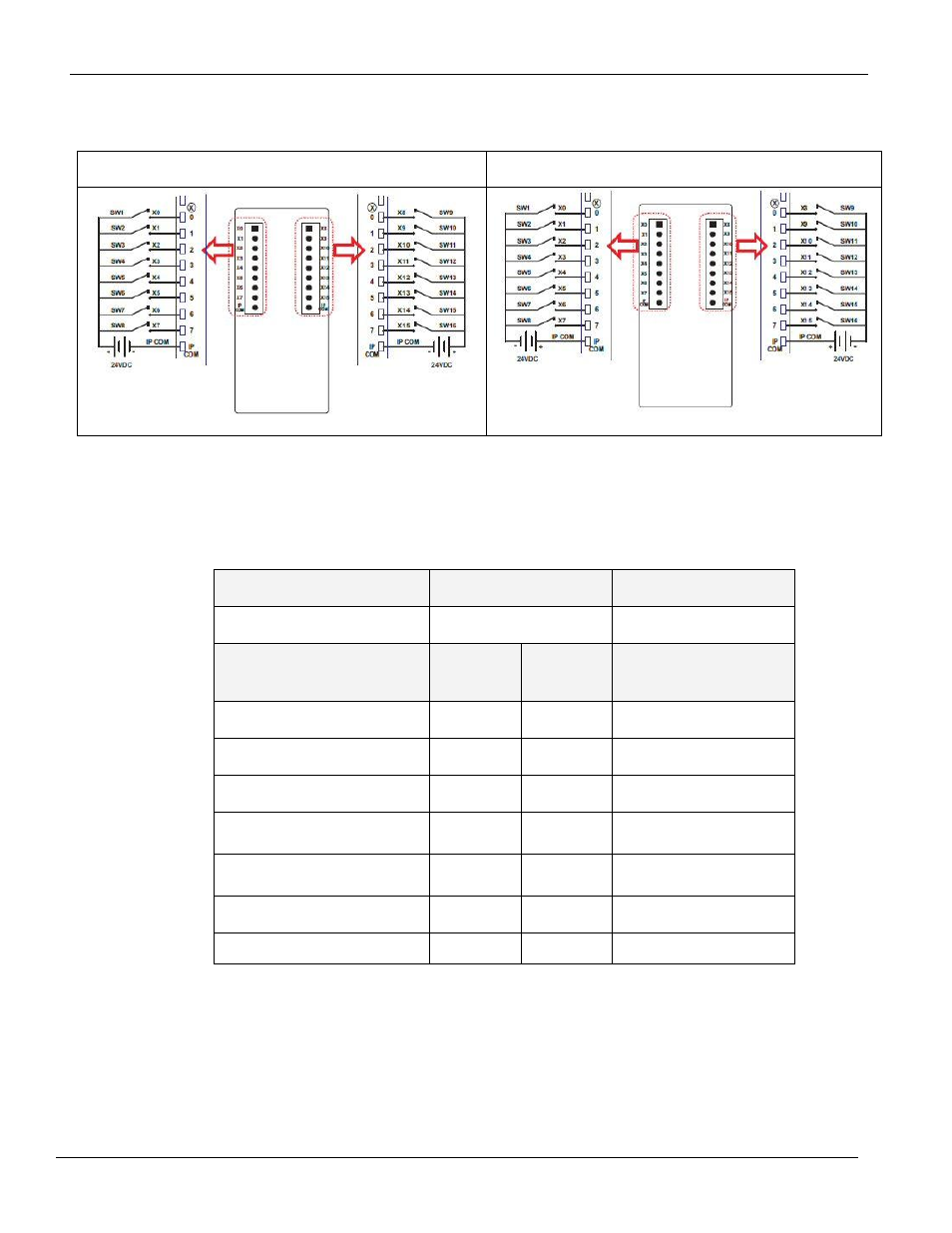

Wiring:
For connecting to NPN-type transistor inputs: Connecting to PNP-type transistor inputs:
Configuration:
Use MAPware-7000 to assign input (X and XW) and configuration (M and MW) memory addresses to the module.
These addresses are created according to the slot location of the module, where nn refers to the slot
number (ex. 01…05):
Function Register Access
X0-X15 Inputs Xnn000-015 (XWnn00) Rd Only
High Speed Counter Option HSC
Channel 1
HSC
Channel 2
HSC Input Pin X0 X5 Rd Only
HSC Reset Input Pin X1 X6 Rd Only
HSC Configuration Register MWnn00 MWnn06 Rd/Write
HSC Counter Register
(Current Value) MWnn01
MWnn02 MWnn07
MWnn08 Rd/Write
HSC Preset Register MWnn03
MWnn04 MWnn09
MWnn10 Rd/Write
HSC Enable Bit Mnn080 Mnn176 Rd/Write
HSC Reset Bit Mnn081 Mnn177 Rd/Write
