HMC7000 Series I/O Module Guide
Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com .
1010-1043 Page 18 of 85 Rev. 02, 11/08/2013

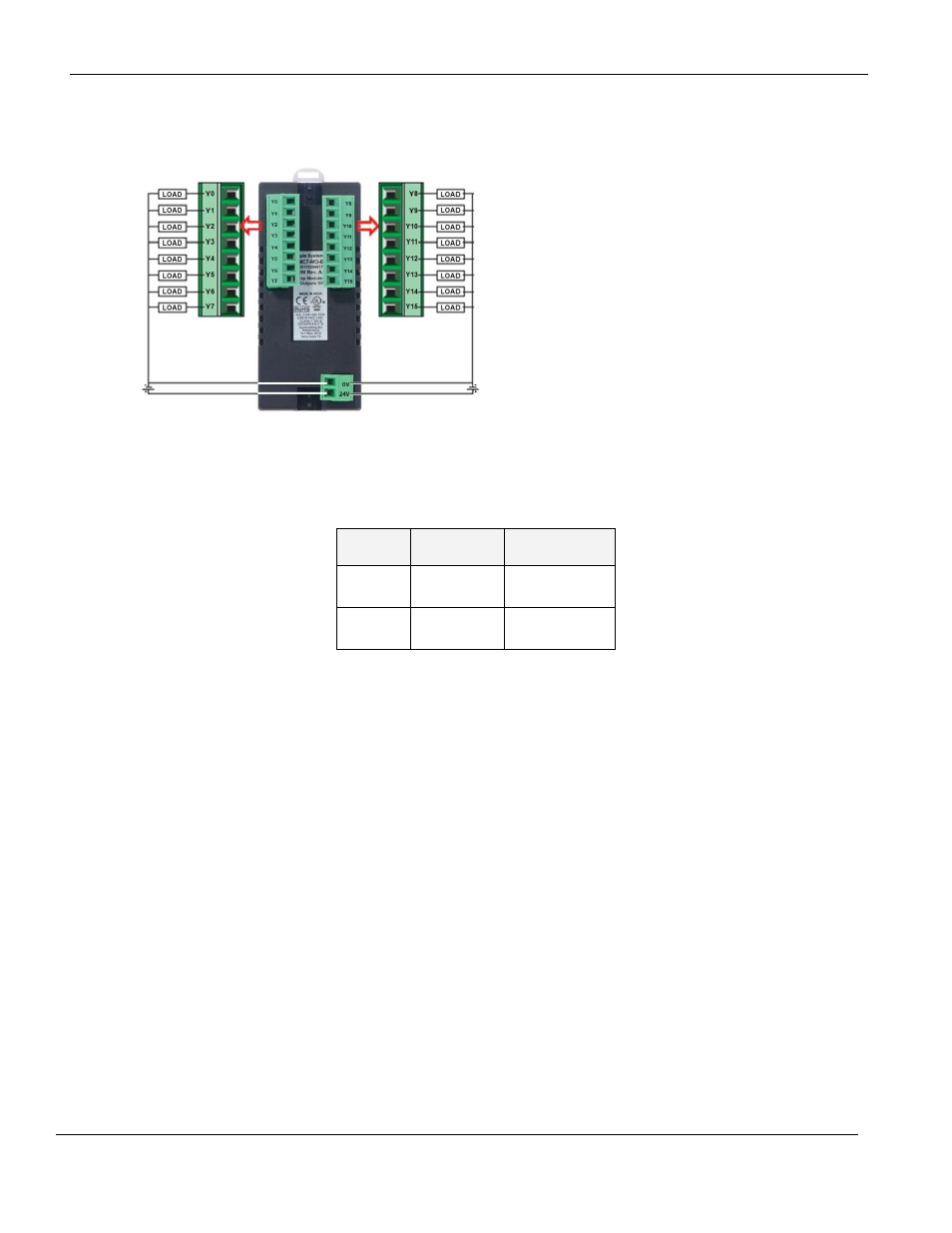

Wiring:
Configuration:
Use MAPware-7000 to assign output (Y and YW) addresses to the module. These addresses are created
according to the slot location of the module, where nn refers to the slot number (ex. 01…05):
Register Description Access
Ynn000-
Ynn015
Output Bits Read/Write
YWnn00
Output
Word Data
Read/Write
