HMC7000 Series I/O Module Guide
Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com .
1010-1043 Page 24 of 85 Rev. 02, 11/08/2013
Input Power Supply
Input Voltage 24VDC
Input Current 4A maximum

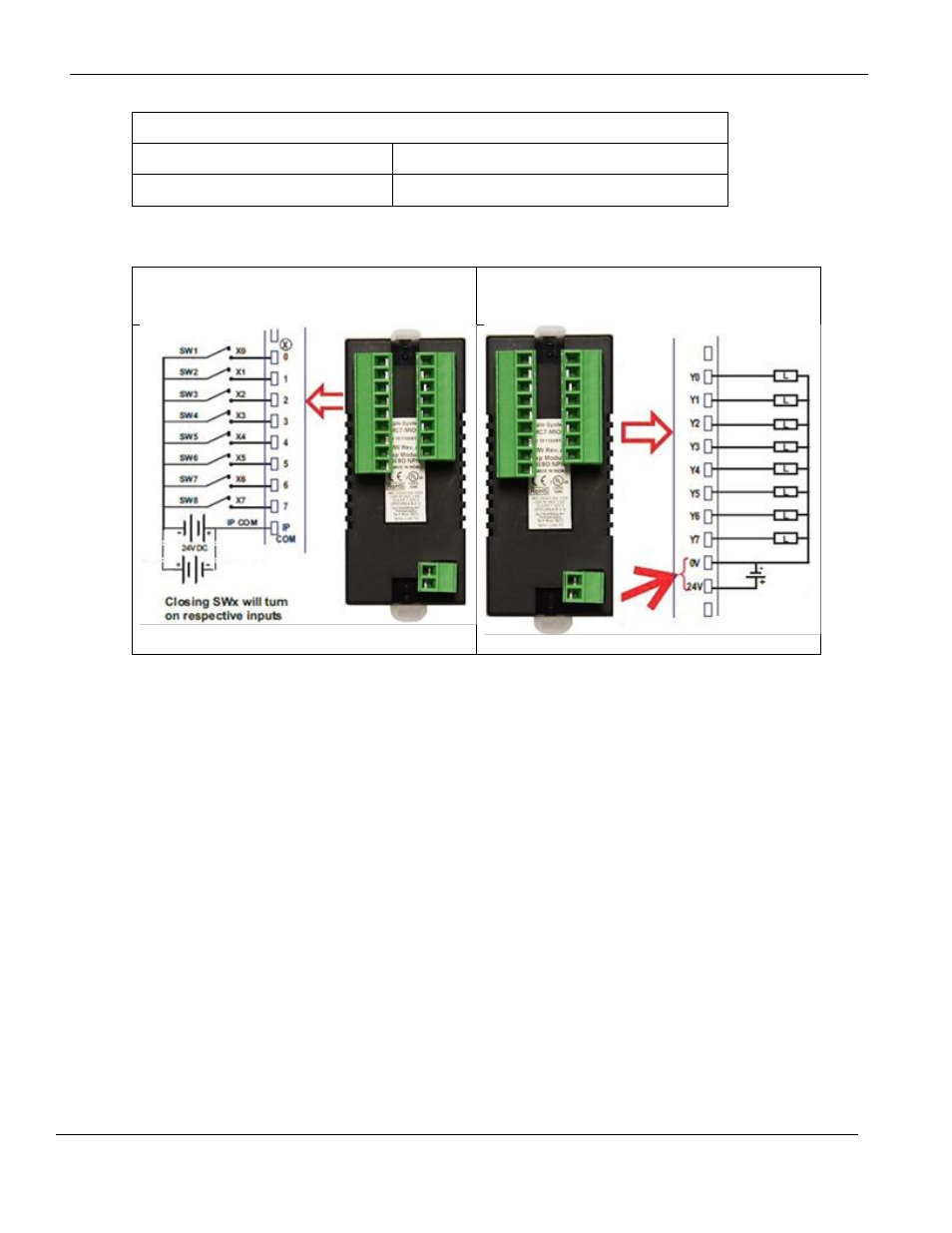

Wiring:
For connecting to bidirectional inputs:
Connecting to PNP-type sourcing outputs:
