HMC7000 Series I/O Module Guide

Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com

.

1010-1043

Page 13 of 85

Rev. 02, 11/08/2013

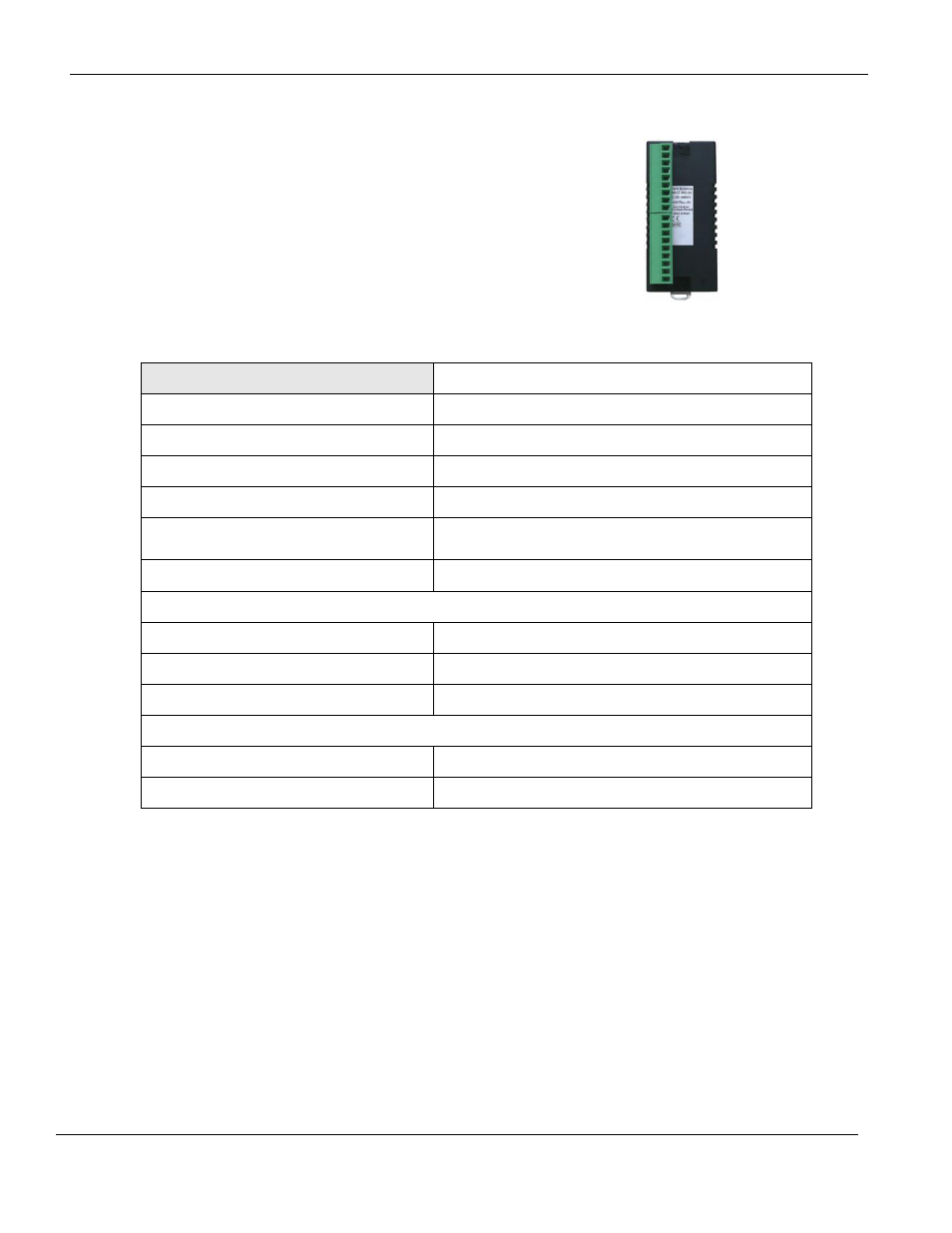

HMC7-MO-01 (12 Relay Output Module)

This module is a digital output module for the HMC7000
Series models. It has twelve relay outputs.

Specifications:

Power

3.9 VDC from HMC7000 base

Approvals

CE, UL

Digital Outputs

12 relay outputs

Turn ON Time

10 msec

Turn OFF Time

5 msec

Output capacity

2A per contact up to 230VAC
2A per contact up to 30VDC

Connection method

Removable terminals (3.81 mm pitch)

General

Operating Temperature

0 to 55°C

Operating Humidity

10% to 90% (non condensing)

Mechanical Dimension (LxWxH)

3.11x1.18x1.42 inches [79x30x36mm]

Input Power Supply

Input Voltage

24VDC (required even when using AC loads)

Input Current

150mA maximum
