HMC7000 Series I/O Module Guide

Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com

.

1010-1043

Page 15 of 85

Rev. 02, 11/08/2013

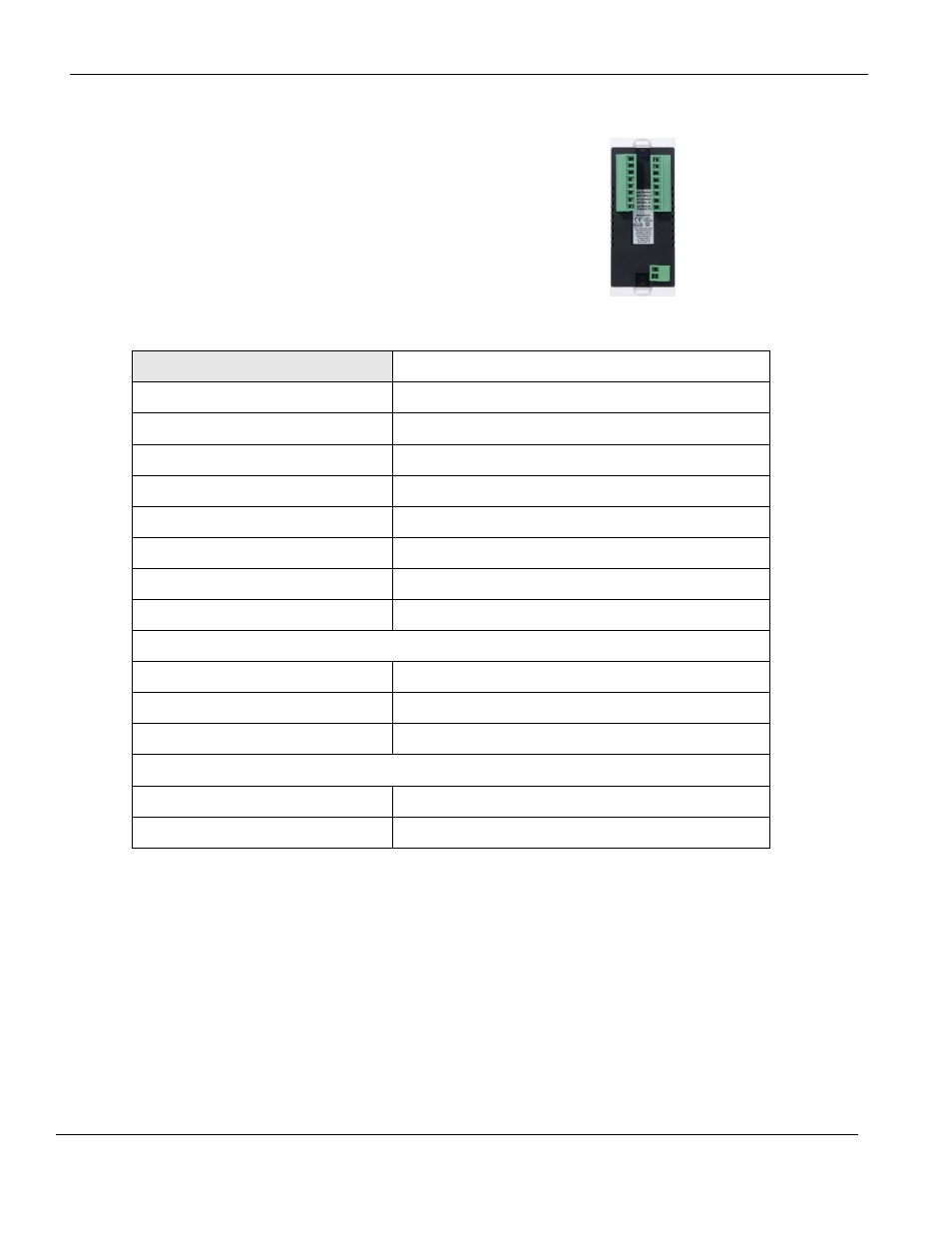

HMC7-MO-02 (16 Sinking Output Module)

This module is a digital output module for the HMC7000 Series
models. It has 16 sinking (NPN) outputs.





Specifications:


Power

3.9 VDC from HMC7000 base

Approvals

CE, UL

Digital Outputs

16 sinking (NPN) outputs

Turn ON Time

10 msec

Turn OFF Time

10 msec

Output Capacity

500mA per output maximum

Rated load

500mA @ 24VDC

Total output capacity

4A @ 24VDC

Connection method

Removable terminals (3.81 mm pitch)

General

Operating Temperature

0 to 55°C

Operating Humidity

10% to 90% (non condensing)

Mechanical Dimension (LxWxH)

3.11x1.18x1.42 inches [79x30x36mm]

Input Power Supply

Input Voltage

24VDC

Input Current

850mA maximum
