HMC7000 Series I/O Module Guide

Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com

.

1010-1043

Page 46 of 85

Rev. 02, 11/08/2013

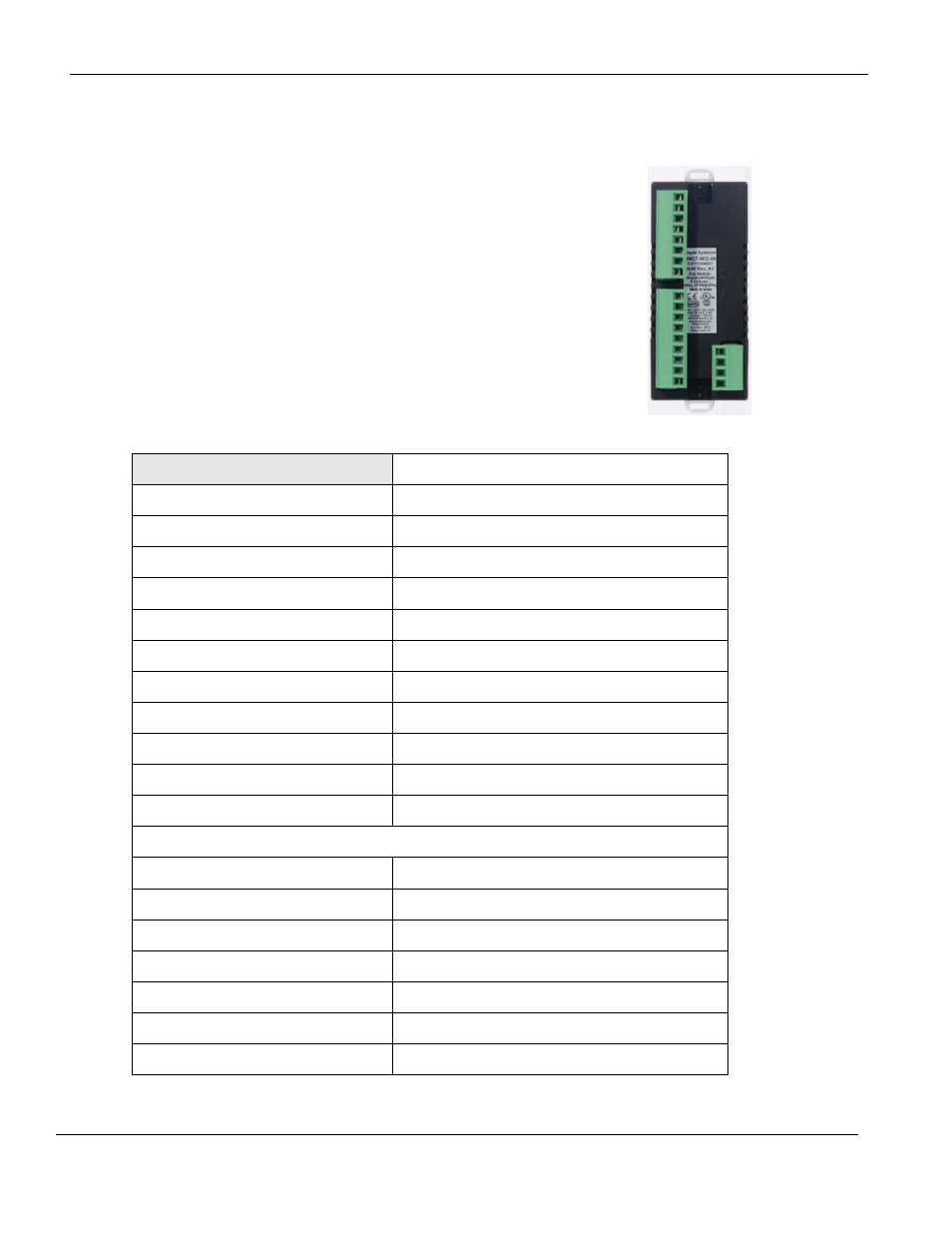

HMC7-MIO-06 (8 Bidirectional Input, 6 Relay, 2 Sinking Output
Digital Module)

This module is a digital input/output module for the HMC7000
Series models. It has eight bidirectional inputs and six relay
outputs (3 per common), plus two sinking digital outputs. Four
of the inputs can be configured as high speed counters (HSC)
using the MW registers (see below). When used as HSCs, input
X0 (channel 1), X5 (channel 2), X2 (channel 3), and X7
(channel 4) are used to record the incoming pulses. The
sinking outputs support PWM.

Specifications:

Power

3.9 VDC from HMC7000 base

Approvals

CE, UL

Digital Inputs

8 bidirectional inputs

Rated input voltage

24 VDC

Rated input current

Up to 5mA

Input impedance

4.9K ohms

Minimum ON voltage

15 VDC

Maximum OFF voltage

5 VDC

Turn ON Time

10 msec

Turn OFF Time

10 msec

Isolation

Optically isolated from internal circuit

Connection method

Removable terminals (3.81 mm pitch)

High Speed Channels

No. of inputs

4 channels (X0 and X5, X2 and X7)

Maximum Input Frequency

25 KHz

Maximum Input Count

4,294,967,295 (32-bit)

Digital Outputs

6 relay, 2 sinking outputs (NPN-type)

Output Capacity (NPN)

500mA per output maximum

Output Capacity (relay)

2A per contact, 6A per common

Rated load

500mA @ 24VDC (300 mA PWM)
