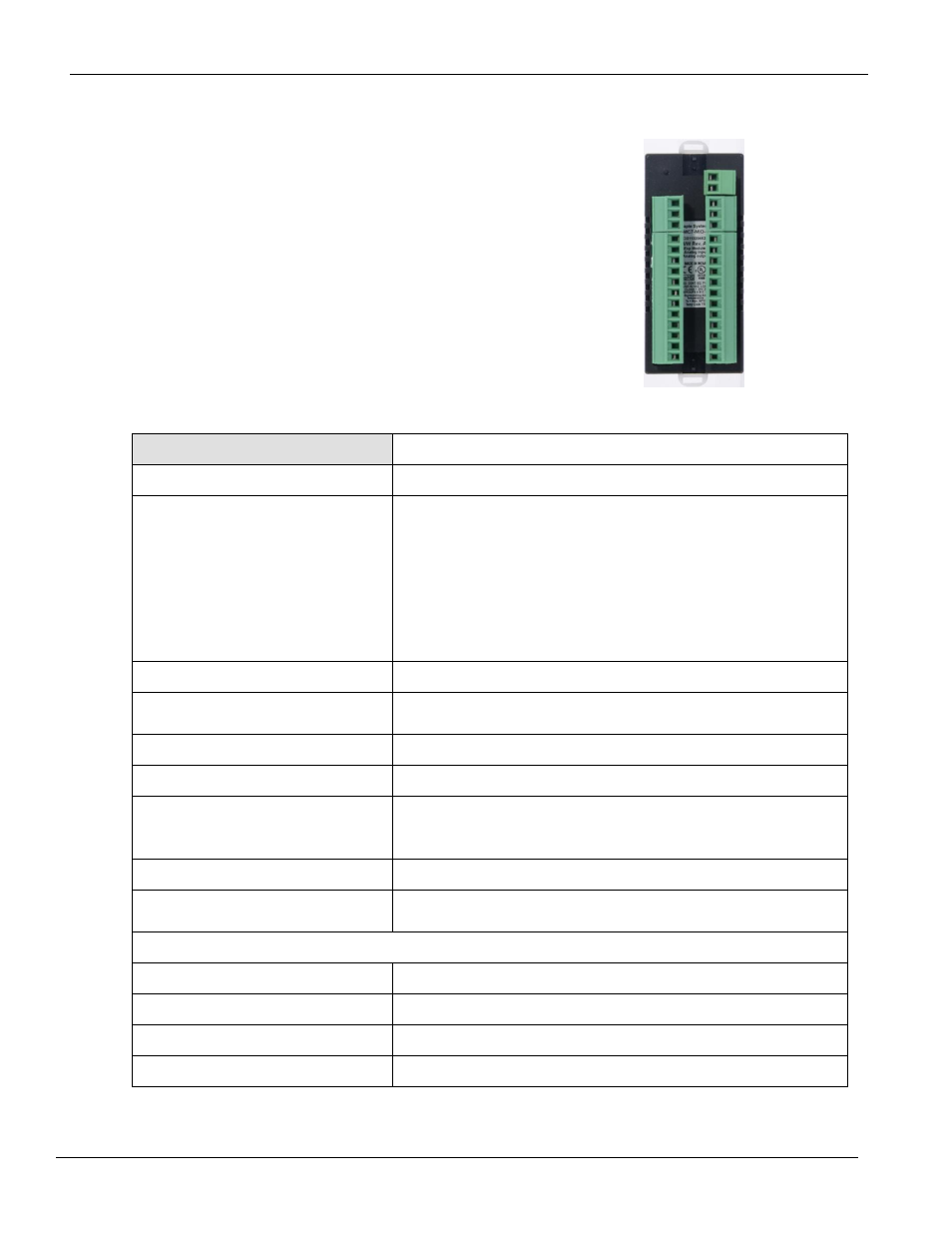

HMC7-MIO-08 (4 Input Analog / 2 Analog Output Module)

This module is an analog input/output module for the
HMC7000 Series models. It has four universal analog inputs,
which can measure

0 to 50mV, 0 to 100 mV;
0 to 10V, 0 to 5v, -10 to +10V;
0 to-20mA, 4-20mA;
PT100 RTD (alpha1, alpha2), PT1000 RTD;
Type J, K Thermocouple (15-minute warm-up recommended)

It also has two analog outputs, configurable as
0 to 5V, 0 to 10V;
0 to 20mA, 4 to 20mA;

Specifications:

Power

3.75 VDC from HMC7000 base

Approvals

CE, UL

Analog Inputs

4 Inputs, each configurable as:
0 to 50mV, 0 to 100 mV; 0 to 10V, 0 to 5V, -10 to +10V;
0 to-20mA, 4-20mA;
PT100 RTD, alpha1 [0.00385 Ω/Ω/°C] (-200 to 850 C);
PT100 RTD, alpha2 [0.003926 Ω/Ω/°C] (-100 to 457 C);
PT1000 RTD (-200 to 850 C);
Type J Thermocouple (-210 to 1200 C);
Type K Thermocouple (-200 to 1373 C)

Resolution

16 bit

Input Impedance

V, mV, Thermocouple RTD inputs: 1 MΩ;
mA: 100Ω

Maximum Input

+/- 30VDC, 30mA

Accuracy

Overall Accuracy 1% of full scale (max)

Analog Outputs

2, each configurable as:
0 to 5v, 0 to 10V;
0 to 20mA, 4-20mA

Accuracy

Overall Accuracy 1% of full scale (max)

Load

1 KΩ (Min) for V;
500Ω (Max) for mA

General

Connection method

Removable terminals (3.81 mm pitch)

Operating Temperature

0 to 55°C

Operating Humidity

10% to 90% (non-condensing)

Mechanical Dimension (LxWxH)

3.11x1.18x1.42 inches [79x30x36mm]
