HMC7000 Series I/O Module Guide

Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com

.

1010-1043

Page 67 of 85

Rev. 02, 11/08/2013

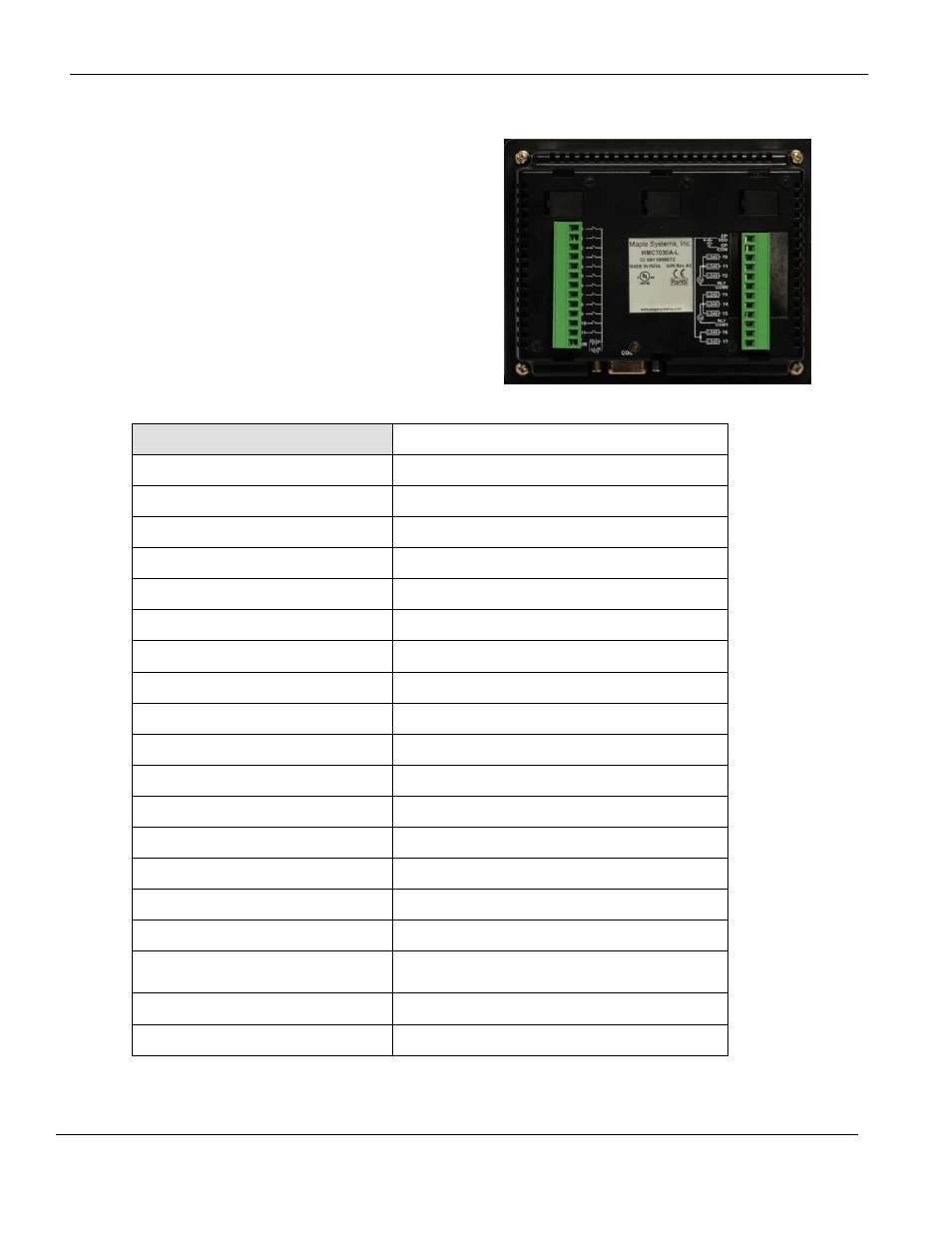

HMC7030A-L

(12 digital inputs and 8 digital outputs built-in)

This unit has built-in I/O. It has 12 directional
inputs, 6 relay outputs and 2 sinking NPN
outputs.

Specifications:

Power

24VDC ± 15%, 3W

Approvals

CE, UL

Digital Inputs

12 bidirectional inputs

Rated input voltage

24 VDC

Rated input current

Up to 5mA

Input impedance

4.9K ohms

Minimum ON voltage

15 VDC

Maximum OFF voltage

5 VDC

Turn ON Time

10 msec

Turn OFF Time

10 msec

Isolation

Optically isolated from internal circuit

Connection method

Removable terminals (3.81 mm pitch)

High Speed Channels

No. of inputs

2 channels (X1 and X2)

Maximum Input Frequency

25 KHz

Maximum Input Count

4,294,967,295 (32-bit)

Digital Outputs

6 relay outputs, 2 sinking outputs (NPN-type)

Output Capacity

2A per output (relay)
500mA per output (NPN)

Rated load

500mA @ 24VDC

Total output capacity

2A @ 24VDC
