HMC7000 Series I/O Module Guide

Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com

.

1010-1043

Page 2 of 85

Rev. 02, 11/08/2013

I/O Modules

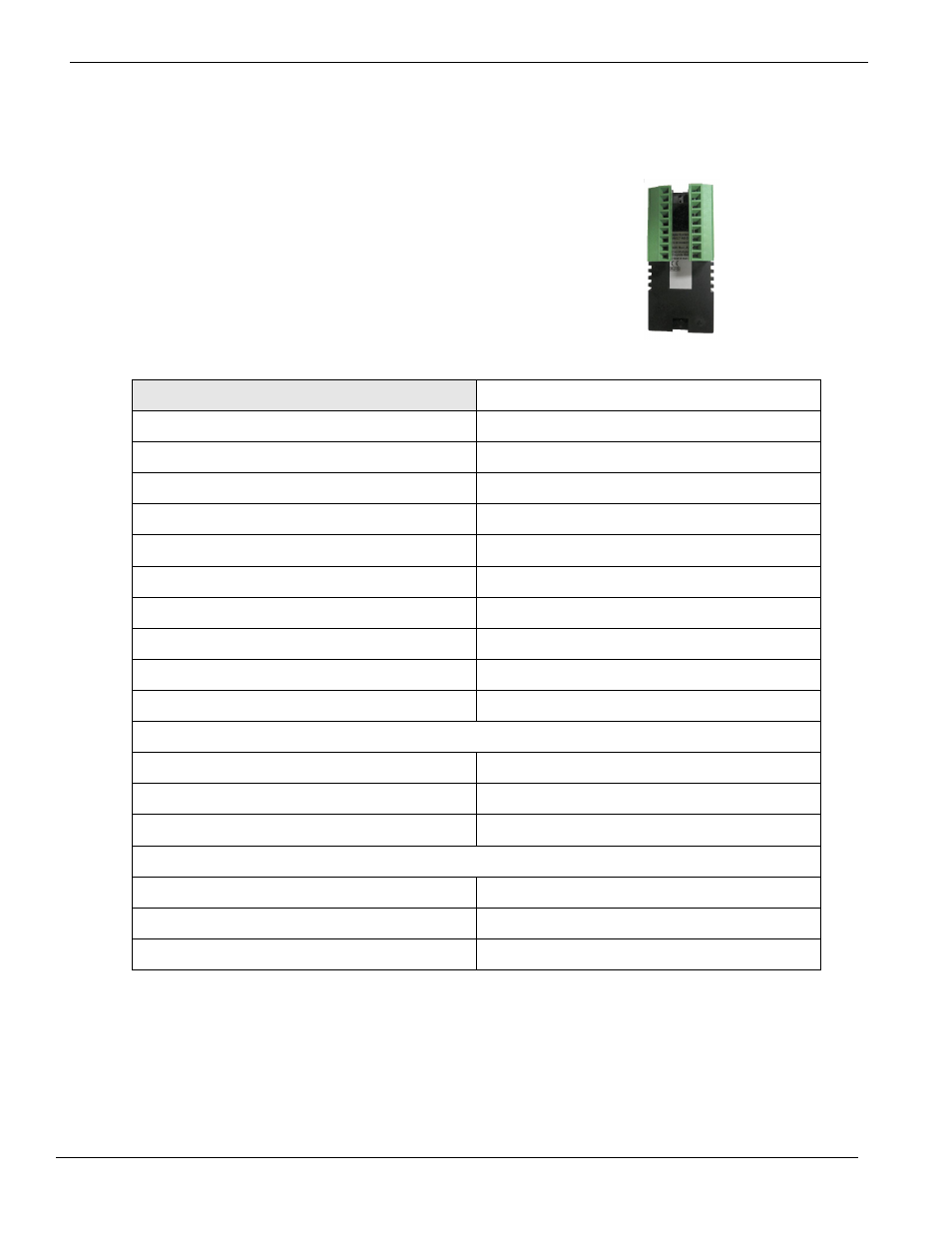

HMC7-MI-01 (16 Digital Input Module)

This module is a digital input module for the HMC7000
Series models. It has sixteen bidirectional inputs, two of
which are high-speed inputs.

Specifications:

Power

3.9 VDC from HMC7000 base

Approvals

CE, UL

Digital Inputs

16 bidirectional inputs (2 high-speed )

Rated input current

Up to 5mA (per contact)

Input impedance

4.9K ohms

Minimum ON voltage

15 VDC

Maximum OFF voltage

5 VDC

Turn ON Time

10 msec

Turn OFF Time

10 msec

Isolation

Optically isolated from internal circuit

Connection method

Removable terminals (3.81 mm pitch)

High Speed Channels

No. of inputs

2 channels (X0 and X5)

Maximum Input Frequency

25 KHz

Maximum Input Count

4,294,967,295 (32-bit)

General

Operating Temperature

0 to 55°C

Operating Humidity

10% to 90% (non condensing)

Mechanical Dimension (LxWxH)

3.11x1.18x1.42 inches [79x30x36mm]
