HMC7000 Series I/O Module Guide
Phone: 425/745-3229 • Fax: 425/745-3429 • Email: [email protected] • www.maplesystems.com .
1010-1043 Page 6 of 85 Rev. 02, 11/08/2013

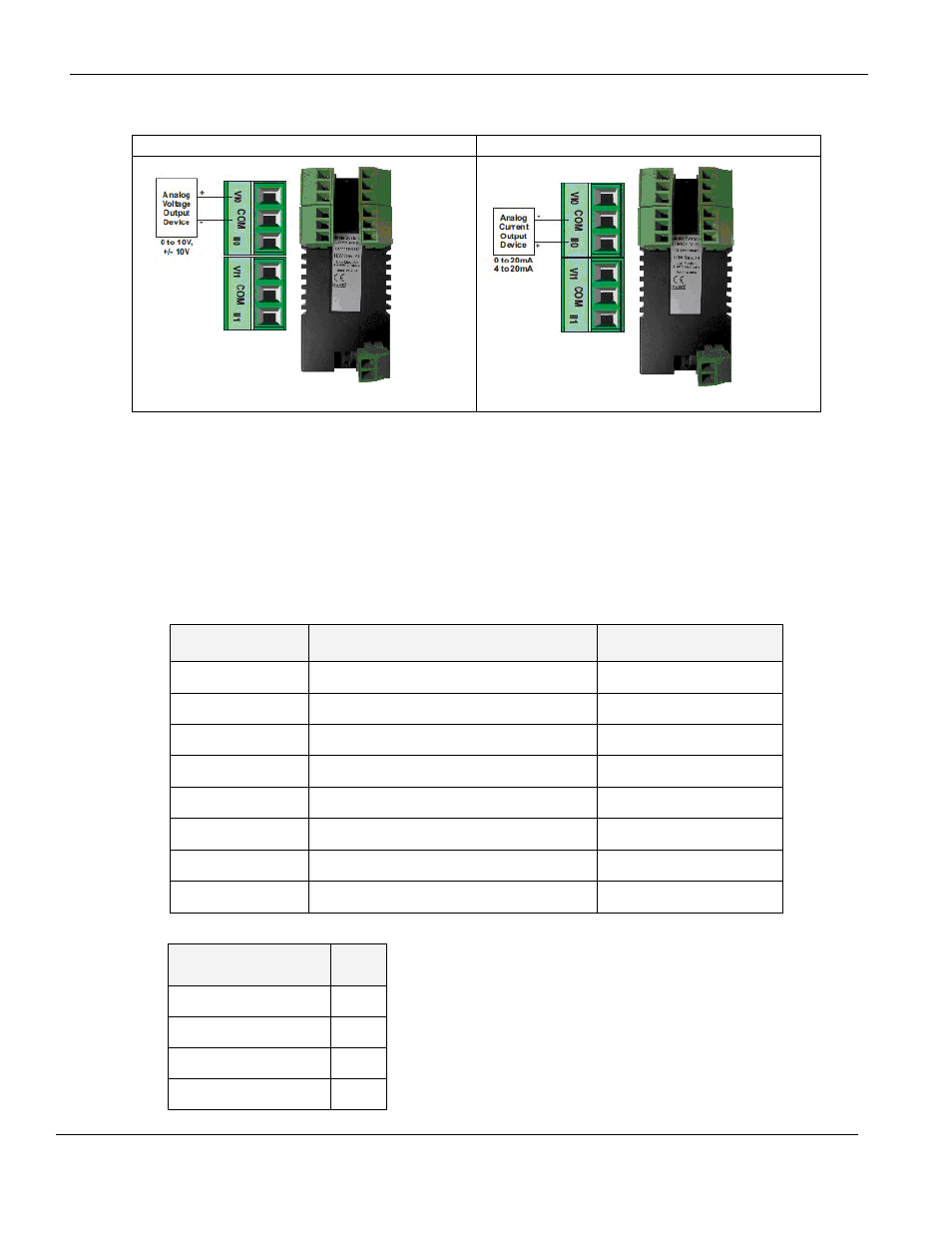

Wiring:
For connecting to analog voltage inputs: Connecting to analog current inputs:
Configuration:
Use MAPware-7000 to assign input (XW) and configuration (MW) memory addresses to the module.
These addresses are created according to the slot location of the module, where nn refers to the slot
number (ex. 01…05):
Register Description Access
XWnn00 Input Channel 1 Data Read Only
XWnn01 Input Channel 2 Data Read Only
XWnn02 Input Channel 3 Data Read Only
XWnn03 Input Channel 4 Data Read Only
MWnn00 Input Channel 1 Configuration Register Read/Write
MWnn01 Input Channel 2 Configuration Register Read/Write
MWnn02 Input Channel 3 Configuration Register Read/Write
MWnn03 Input Channel 4 Configuration Register Read/Write
Reference the table below when configuring each Input Configuration Register (MWnn00-MWnn03):
Input Channel
Signal Type
Value
mA (4-20mA) 0
Voltage (0-10V) 1
Voltage (-10 to +10V) 2
mA (0-20mA) 3
