Teledyne LeCroy WaveLink Differential Probe Series (13-25 GHz) User Manual

Page 86

background image

WaveLink Series Differential Probe (13-25 GHz)

80

WL-HBW-A-OM-E Rev B

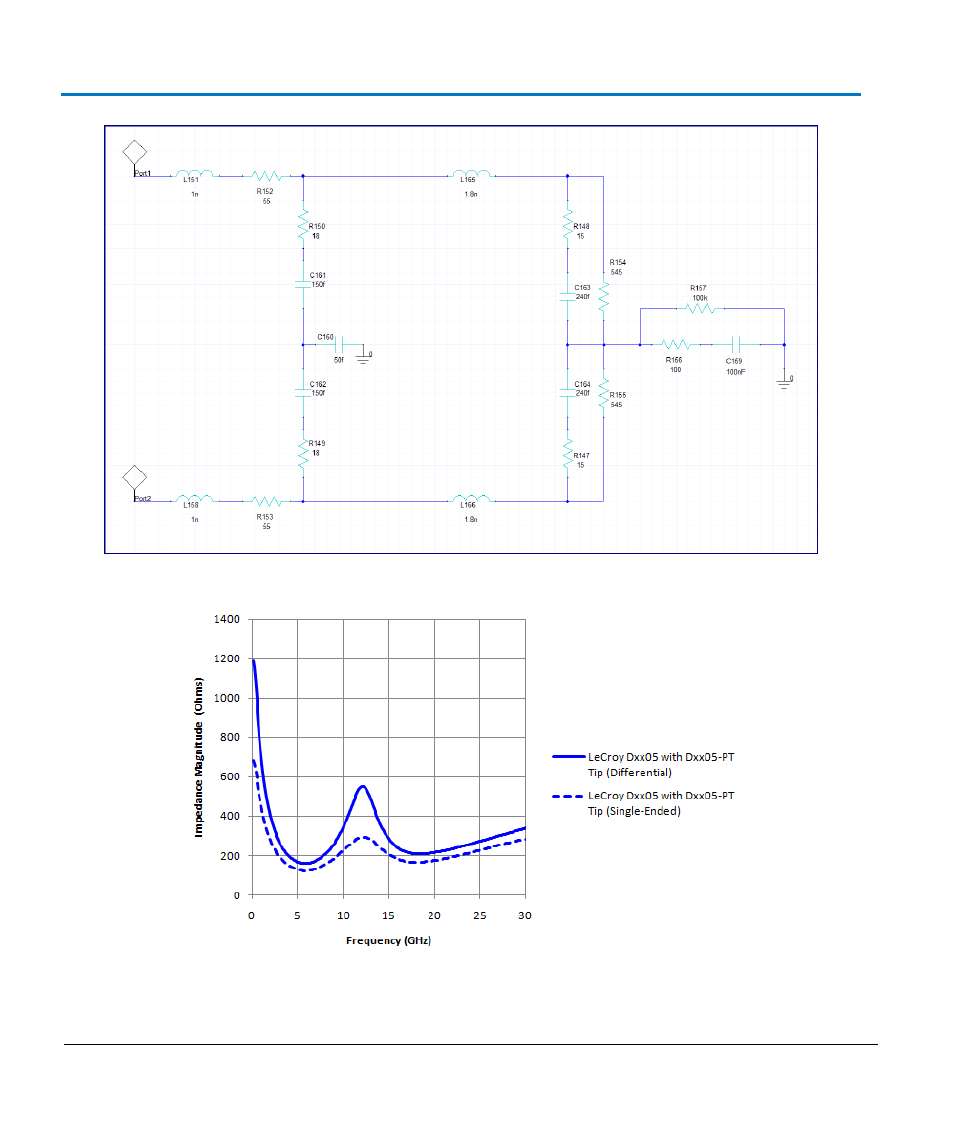

Equivalent Circuit Model - Dxx05-A Probe with Dxx05-PT

Probe Impedance - Dxx05-A Probe with Dxx05-PT

Typical probe input impedance magnitude as a function of log frequency for differential and single-ended

(one lead grounded) configuration.
