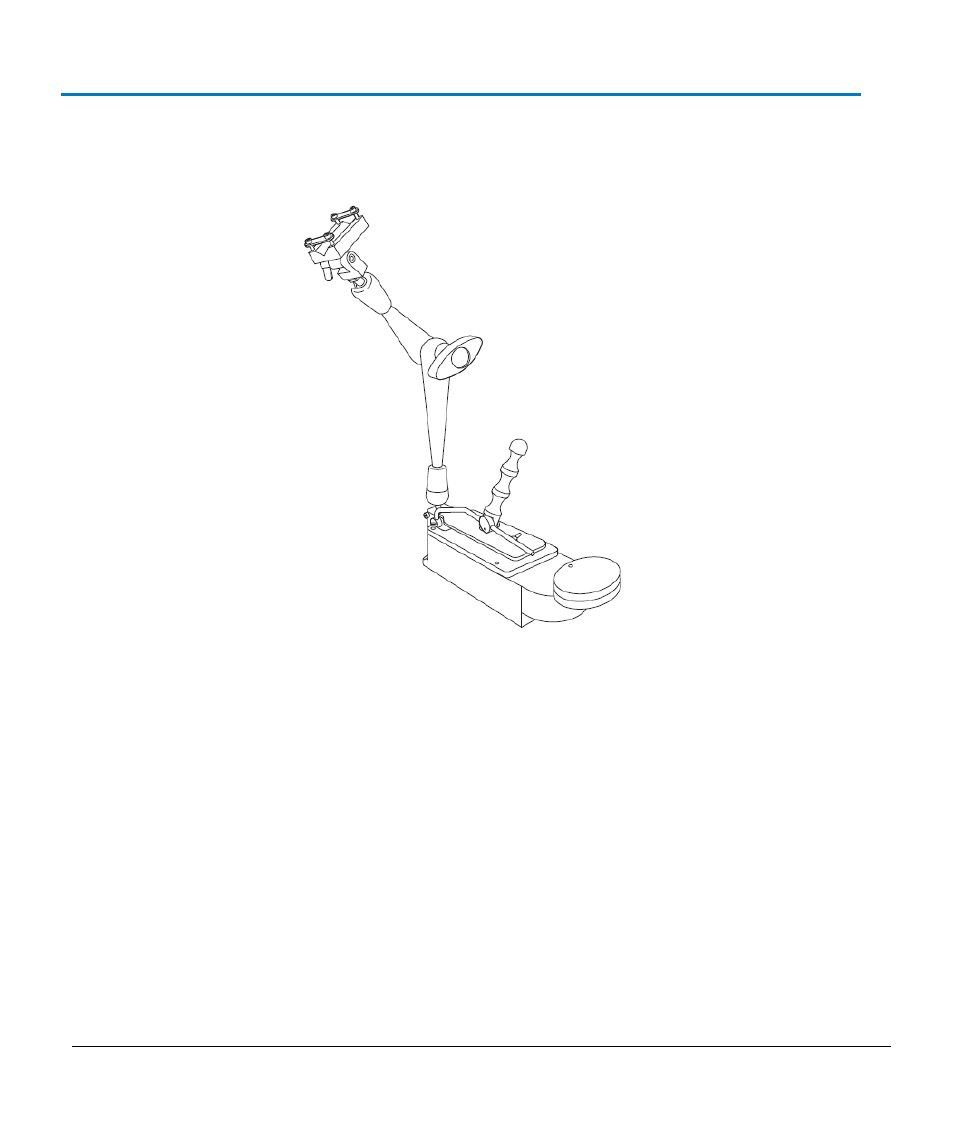

EZ Probe Positioner
The EZ Probe Positioner is available as an optional accessory. It provides stable, accurate positioning
in the X-Y-Z Axes.
The unique 3:1 motion reduction joystick allows simple, precise positioning of the attached probe in
both the horizontal and vertical measuring plane. The probe has a fully-articulating arm, providing
30 cm (12 inch) reach in virtually any direction.
The XYZ joystick has separate friction controls allowing independent X-Y plane or Z-Axis movement
and is especially useful when combined with the Positioner Browser Probe Tip.
The EZ-Probe Positioner comes with a vacuum mounted base to keep the probe in place in any test
environment. However, the solid base is heavy enough that the positioner can be used without the
vacuum.
