WaveLink Series Differential Probe (13-25 GHz)
8 WL-HBW-A-OM-E Rev B
This amplifier architecture provides the following:

Very low probe only noise (≤18 nV/√Hz). Much less than other, comparable bandwidth
probes.

Excellent system (probe and oscilloscope) rise times. In fact, the probe, when connected to
WaveMaster 8 Zi-A, LabMaster 9 Zi-A, or LabMaster 10 Zi oscilloscopes of the same
bandwidth, causes no reduction in bandwidth or rise time compared to the oscilloscope with
a cable input.

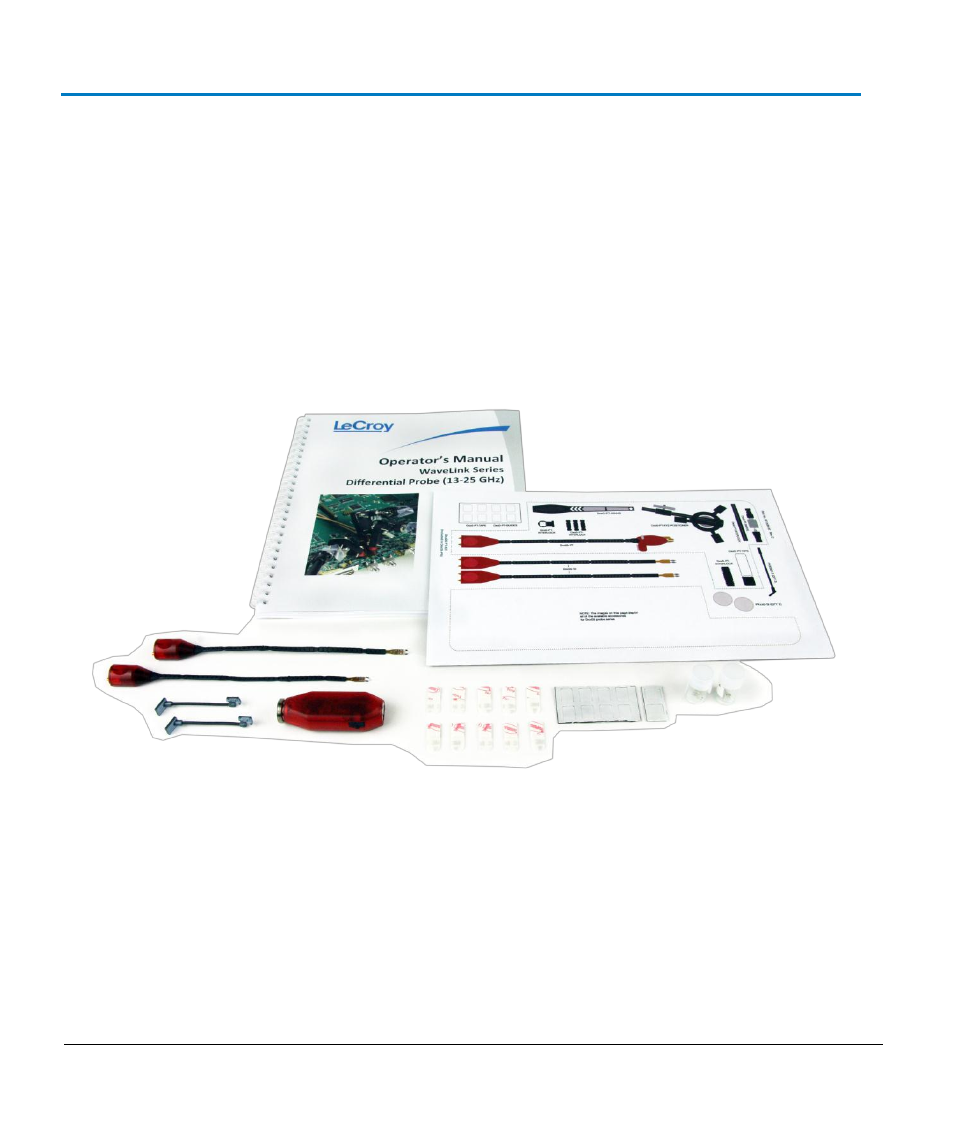

Differential Amplifier Small Tip Module
The amplifier module is sold with a set of solder-in interconnect leads. See Solder-in Interconnect
Lead (on page 10).
