used to replace a broken pogo-pin, no additional activity is necessary (other than mechanical
replacement).
However, if spare pogo-pin tips are separately ordered, their resistive values are possibly
unmatched to the originals. Therefore, Teledyne LeCroy supplies a USB memory stick containing a
Dxx05-PT Pogo-Pin Replacement software utility along with the spare pogo-pins.
So, when the spare tips originally supplied with the Dxx05-PT are consumed, pogo-pins should only
be mechanically replaced with pogo-pin tips having matched values, and the Dxx05-PT Pogo-Pin
Replacement software utility must be run after replacement.
NOTE:
Tips from different lots or vials (a vial, Dxx05-PT-TIPS, is included with your Dxx05-
PT) should not be intermixed with tips from other lots or vials.
The Dxx05-PT Pogo-Pin Replacement Software Utility is provided on a USB Stick with
a newly-purchased Dxx05-PT Positioner Tip Browser. The utility is also available for
download at teledynelecroy.com.

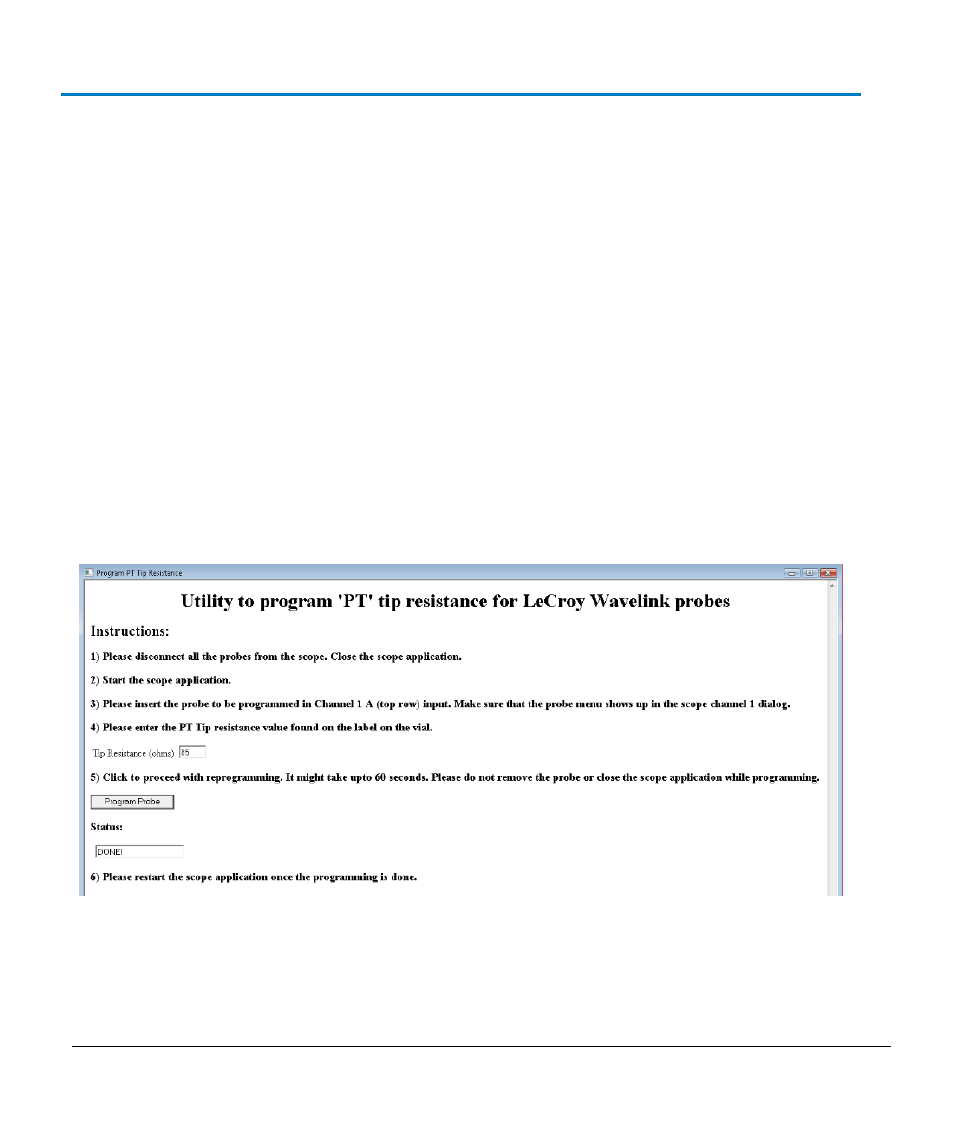

Connect your USB Stick to your instrument and view the contents. Copy the Utility Program to the
desktop of your oscilloscope, and then double-click/run the program.
