WaveLink Series Differential Probe (13-25 GHz)
34 WL-HBW-A-OM-E Rev B

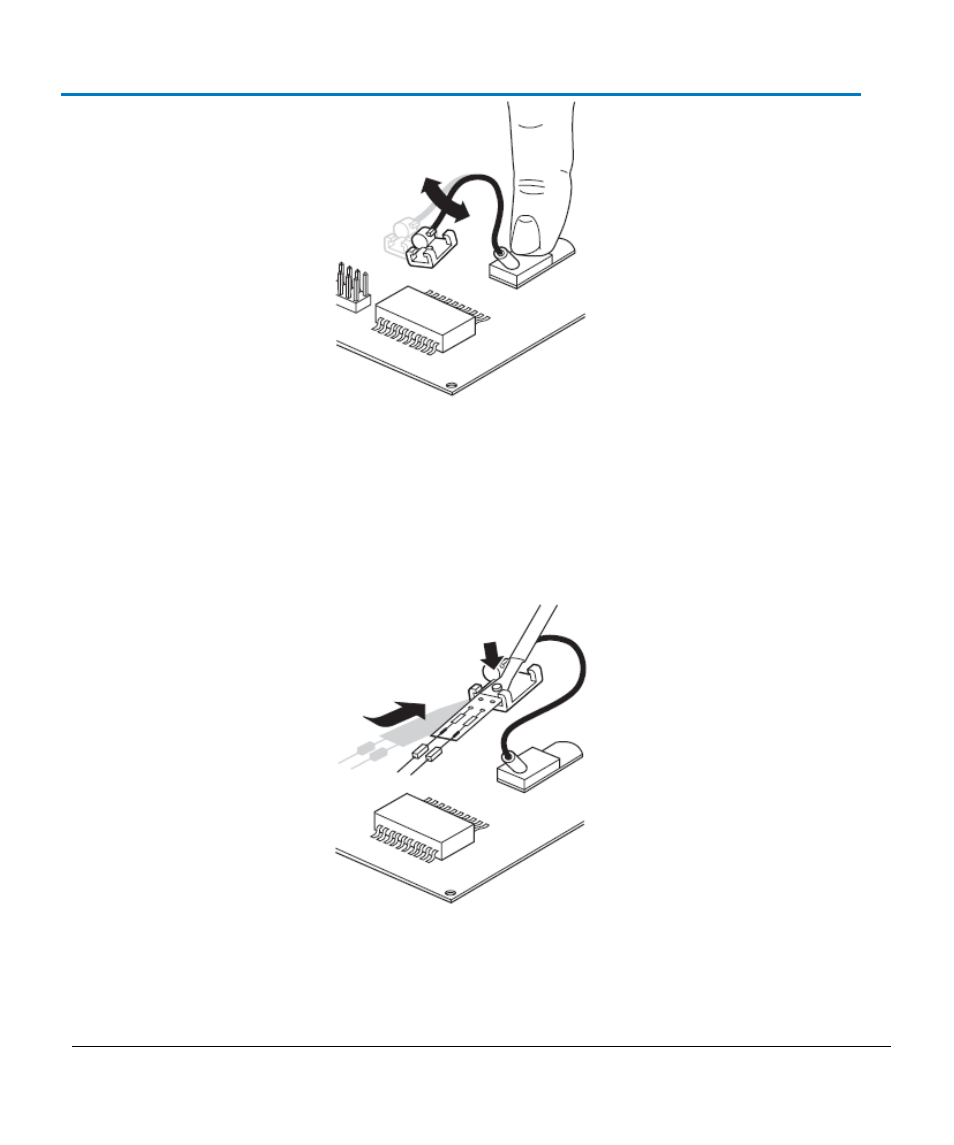

Applying pressure when adjusting the probe holder
A
TTACHING THE
P
ROBE
Attach the probe by positioning the cable of the module on top of the clip and sliding the input
board of the module into the grooves. While moving the probe into position for measurement,
apply pressure to the mounting pad to prevent the adhesive pad from moving and losing its
adhesion.
Attaching the Probe
