WaveLink Series Differential Probe (13-25 GHz)
28 WL-HBW-A-OM-E Rev B
AutoColor ID and Power Control Indicators

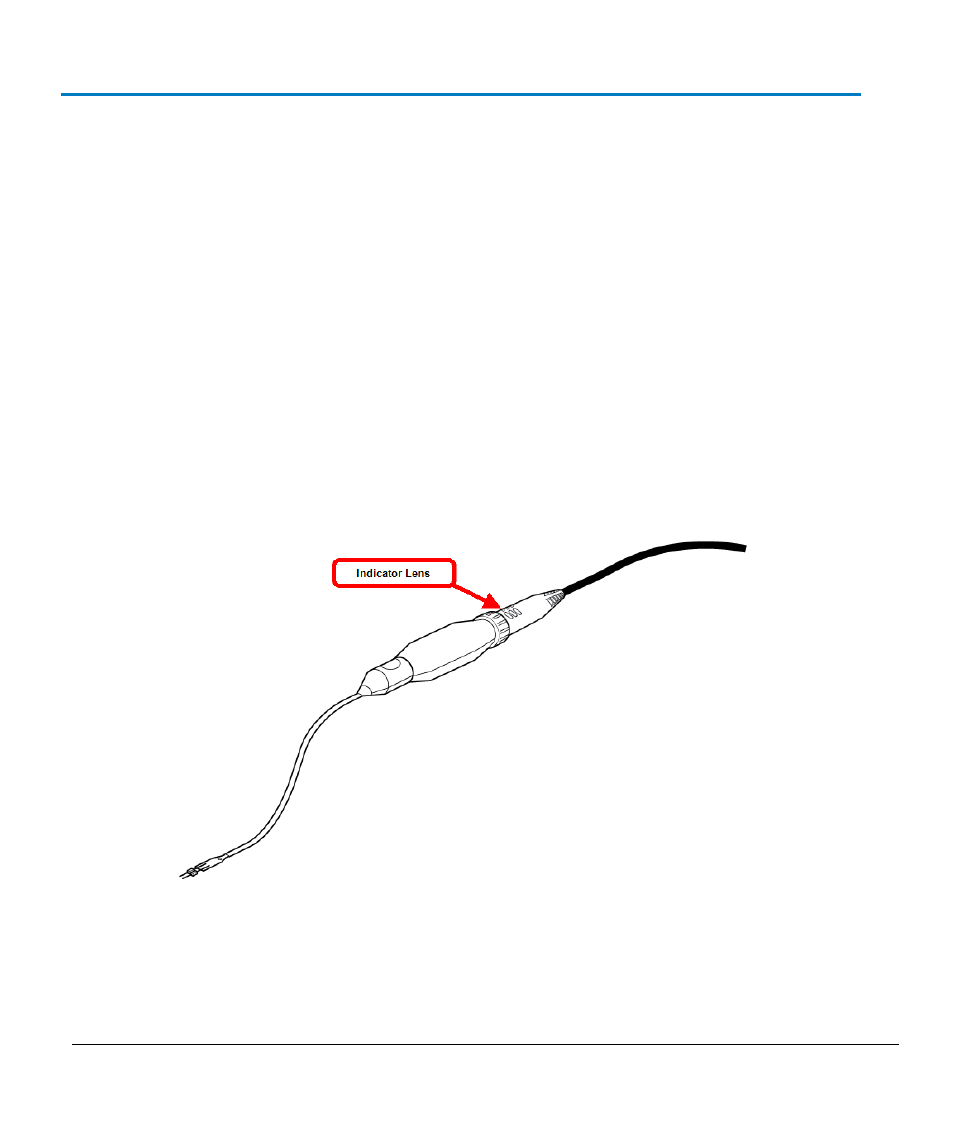

The AutoColor ID LED, built into the platform/cable assembly, indicates various states of the probe-
oscilloscope combination:
AutoColor ID
When the probe is connected to a Teledyne LeCroy X-Stream oscilloscope, the LED illuminates in the
default color of the channel to which the probe is connected.
Platform/Cable Assembly Compatibility
When the probe tip module is compatible with the platform/cable assembly to which it is
connected, the green LED illuminates for about one second after the probe is connected to the
oscilloscope.
Conversely, when the probe tip module is incompatible with the platform/cable assembly, the red
LED illuminates—for example, when a Dxx
05 amplifier is connected to a WL-PLINK instead of a WL-
PLINK-A.
