WaveLink Series Differential Probe (13-25 GHz)
68 WL-HBW-A-OM-E Rev B

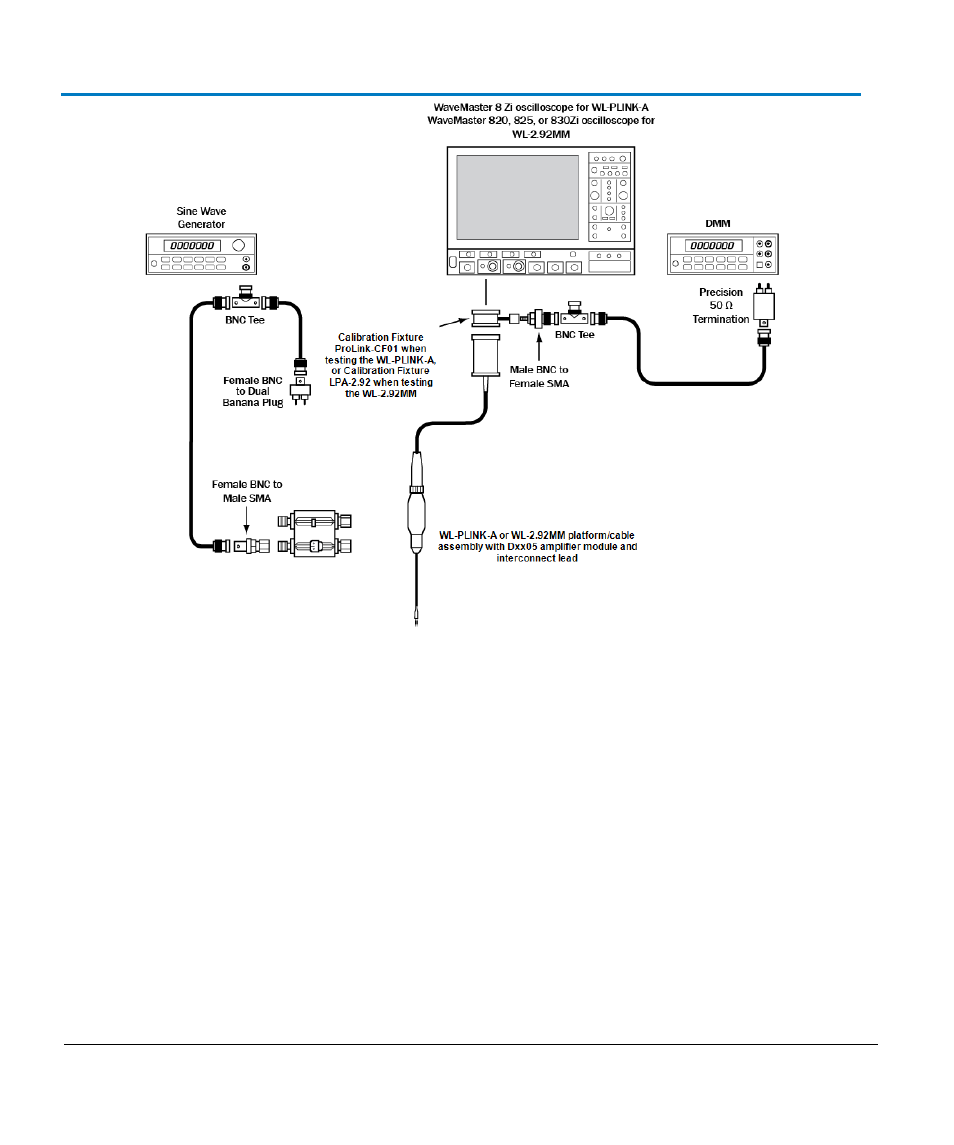

WL-PLINK-A or WL-2.92MM with an SI Lead Measuring Output Voltage.
This concludes the Performance Verification Procedure.
Quick Functional Check
This test is a simple, interim check to ensure your WaveLink High Bandwidth Differential Probe is
generally functioning and hasn't experienced any significant performance changes. This test should
be run after potentially damaging stresses are applied to the probe and check if the probe is still
functional. It can be used for any WaveLink Model (D1305-A, D1605-A, D2005-A, D2505-A, etc.); the
maximum bandwidth of the probes is not checked; however, we can safely assume no damage
affecting only the bandwidth above 16 GHz.
