Operation with a Teledyne LeCroy Oscilloscope
NOTE:

Download the latest version of X-Stream software to run your WaveLink probe with
maximum performance.

Ensure your Windows updates are current.

If utilizing the probe with an SDA 9000, 11000, 13000, or 18000 oscilloscope,
download and install the most recent version of the Microsoft Core XML Services
(MSXML) Service Pack before using your probe. Other supporting service packs may
be required for MSXML to work properly.

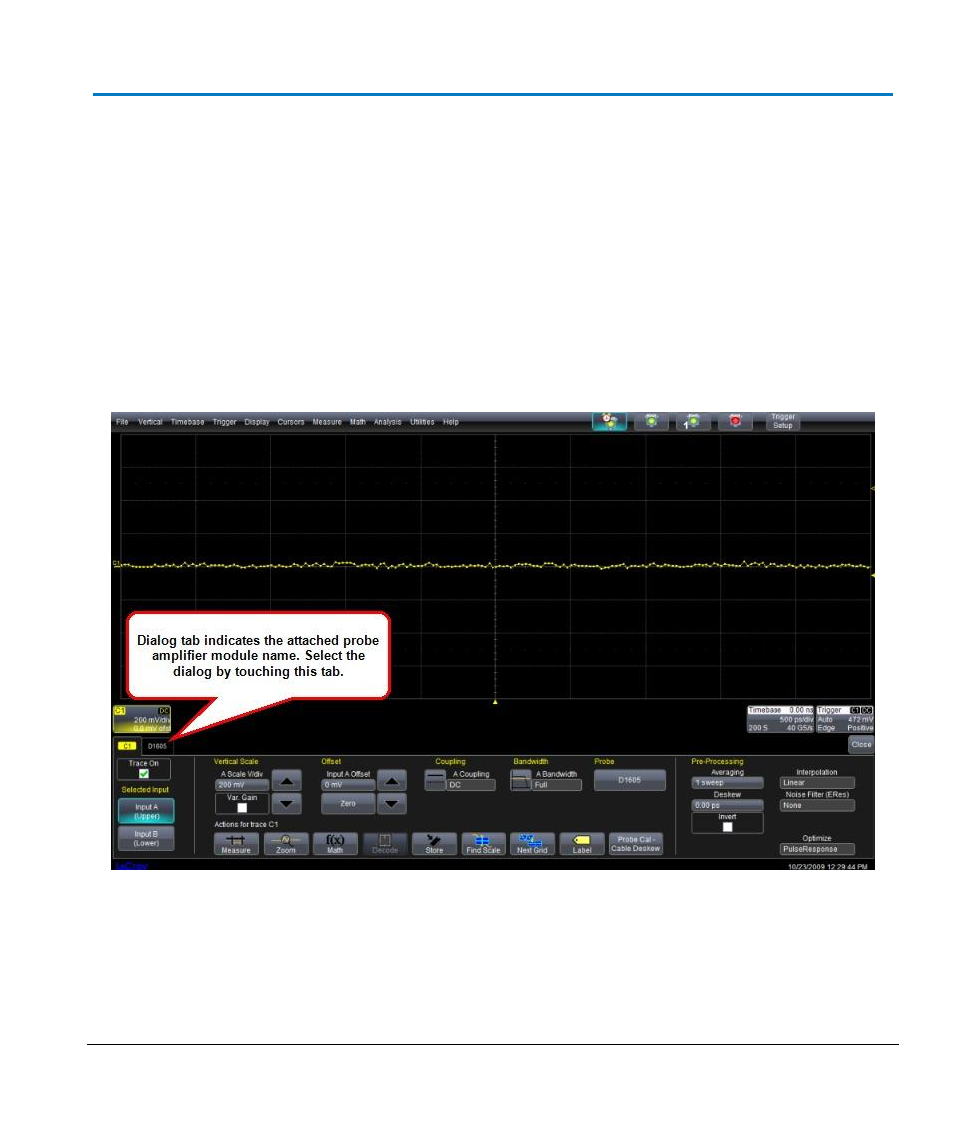

Vertical dialog with labeled tab corresponding with your attached probe.
When the probe platform/cable assembly is connected to a probe amplifier module, and this
assembly is then attached to an X-Stream oscilloscope's input, the oscilloscope recognizes the probe
and activates the vertical channel functions in the user interface (shown previous). Refer to your
oscilloscope's instruction manual for specific operation.
