Operator's Manual
WL-HBW-A-OM-E Rev B
79

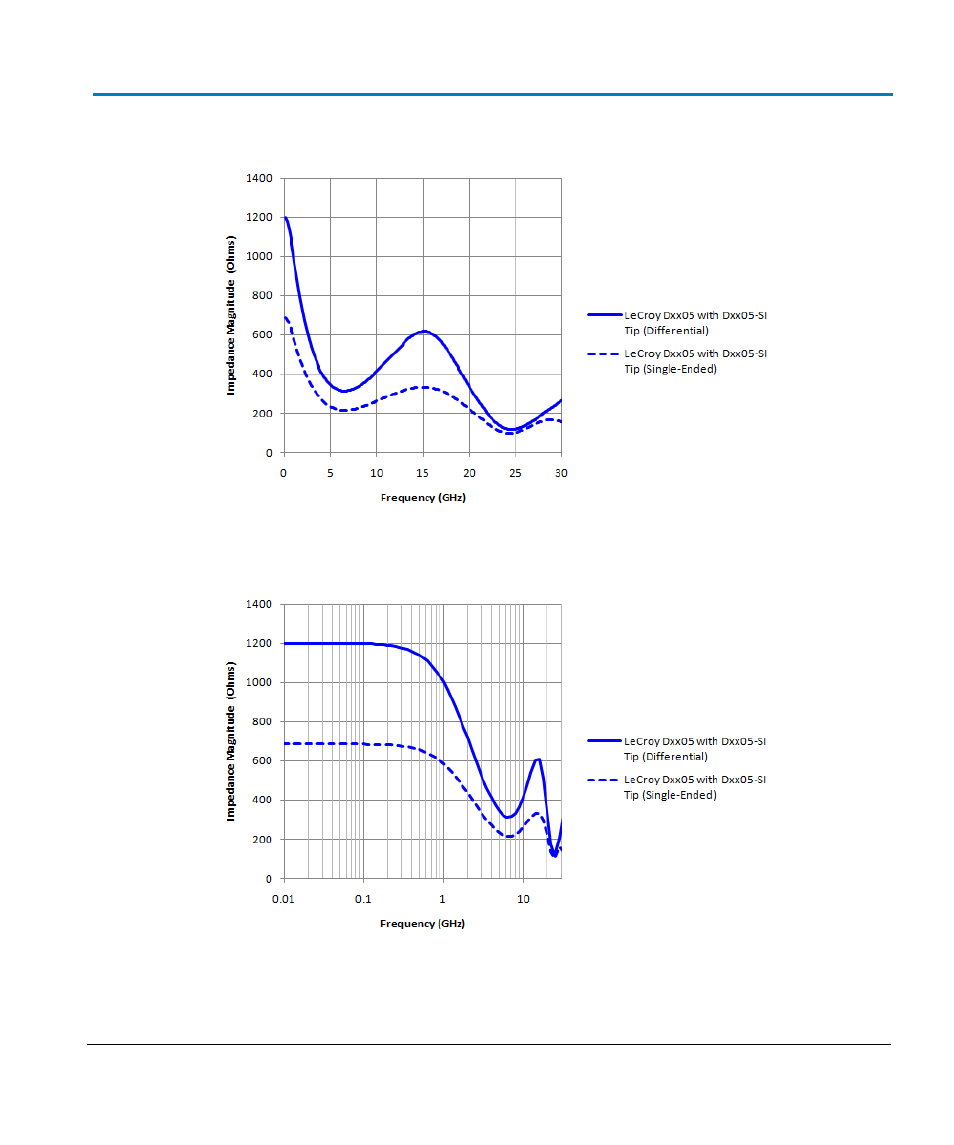

Probe Impedance - Dxx05-A Probe with Dxx05-SI
Typical probe input impedance magnitude as a function of log frequency for differential and single-ended
(one lead grounded) configuration.
Typical probe input impedance magnitude as a function of frequency for differential and single-ended (one
lead grounded).
