Page 58
7. Connecting with the Controller
-52-

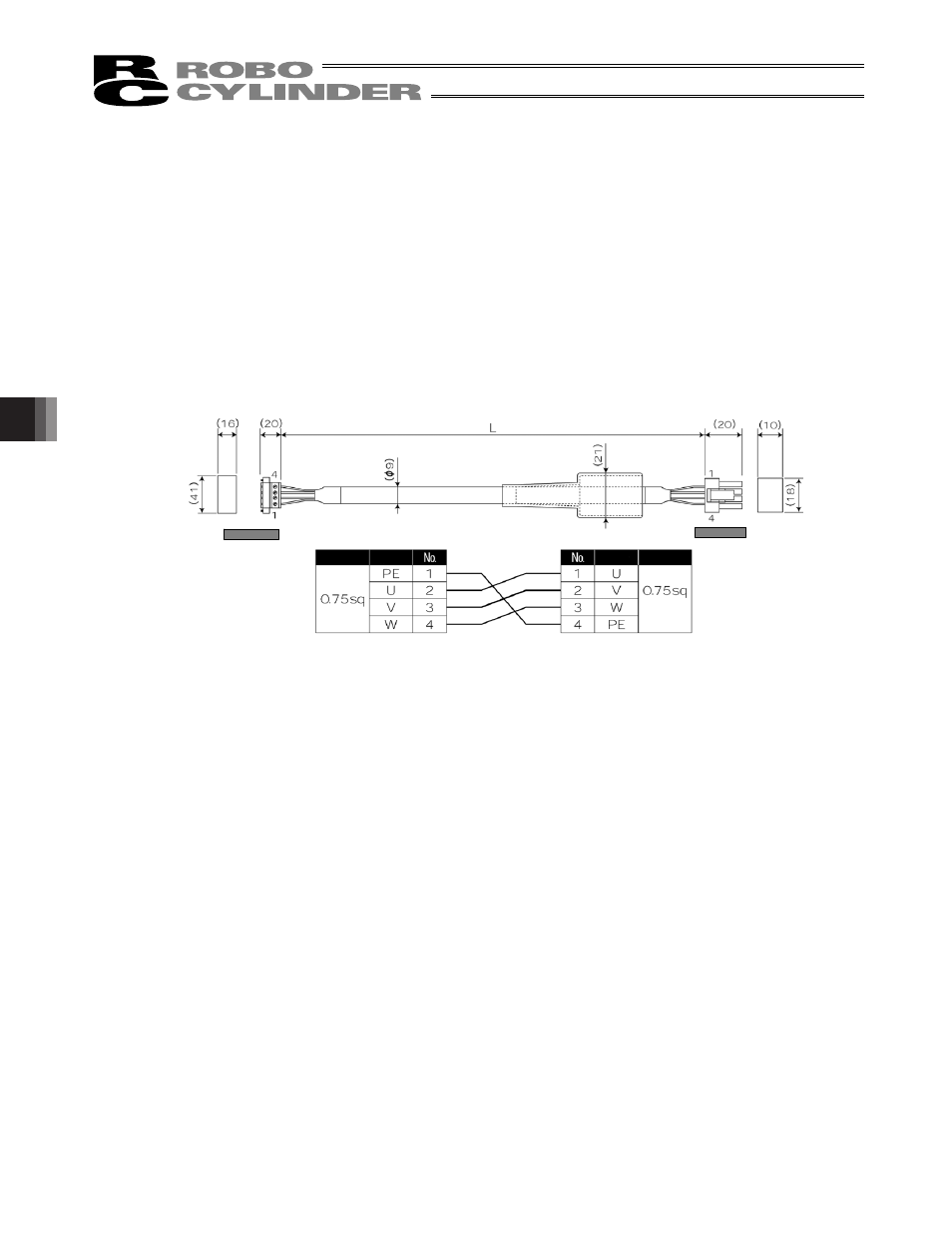

7.2 Motor/Encoder Cables
[1] Motor cable/motor robot cable
Model number: CB-RCC-MA***/CB-RCC-MA***-RB
(Front views)
Controller end
(Front views)
Actuator end
Wiring
Sign
(crimped)
Wiring
Sign
* *** indicates the cable length.
Up to 30 m can be specified.
Example) 080 = 8 m
Robot cable
r = 51 mm or more (movable)
Standard cable
r = 46 mm or more (mount)
