Rev 1.3 Series X11CA Computer Annunciators: X11CA Configuration Software User’s Manual
4. X11CA Software Operation
Hardware Control-© 2003 Ronan Engineering 38
4.4.2.1 Setting the Common Signals Field
This field consists of two areas: GF1 Inhibit area and GF2 Inhibit area.
General Function (GF1) Inhibit
When any of the following signals is checked, Configuration Software
ignores its signal while the GF1 push button on the Main window is
being pressed during the push button test time.
? Field Contact Inputs
? Lamp
? Horn signals
? CTA (Common Trouble Alarm)
? Transistor output
? Aux. Relay
General Function (GF2) Inhibit
When any of the following signals is checked, it does not display
while the GF2 push button is being pressed during the push button test
time.
? Lamp
? Horn signals
? CTA (Common Trouble Alarm)
? Transistor output
? Aux. Relay
After setting up the module properties, press the OK button.
Results:
? Notice that the Field Contact Input field on the Module
Properties window has three boxes; one for each channel for the
module.
? If the first logical module cell on the Main window is not
highlighted, click on it. It will display its module number, its
status and the sequence types of channels on the Status bar of the
Main window.

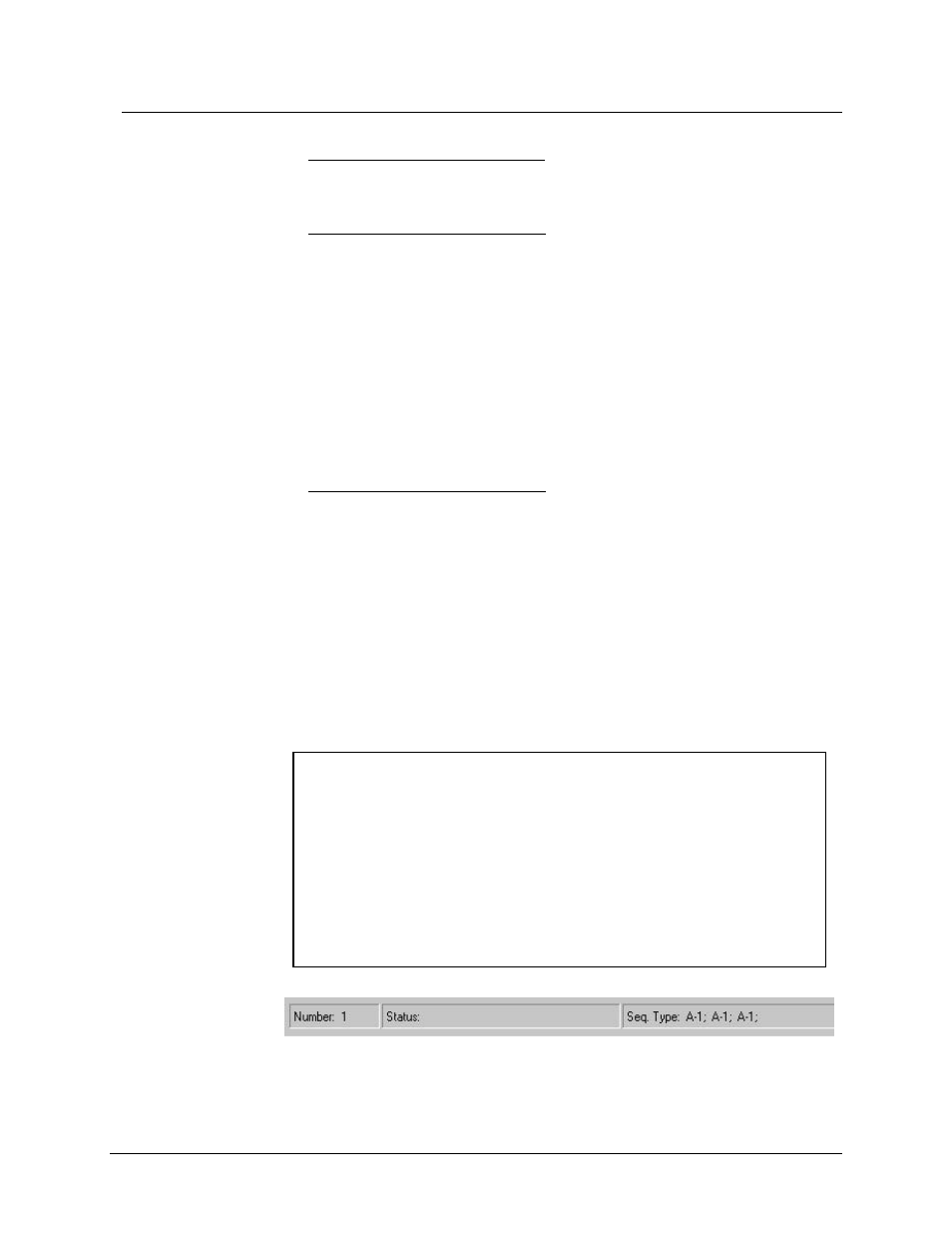

Figure 4-25 Status of the First Module on the Main Window
