4. X11CA Software Operation
Hardware Control-© 2003 Ronan Engineering
22
If there are multiple physical modules in the chassis, the table has to be expanded.
If you are not sure how many modules you have, check the purchase order.
Follow the instructions below to set up the Module Display area.
1) Click on the System menu, and then Config to open the Setup System window.
(Or press
2) When the Setup System window opens, it will display two boxes: Width and
High.

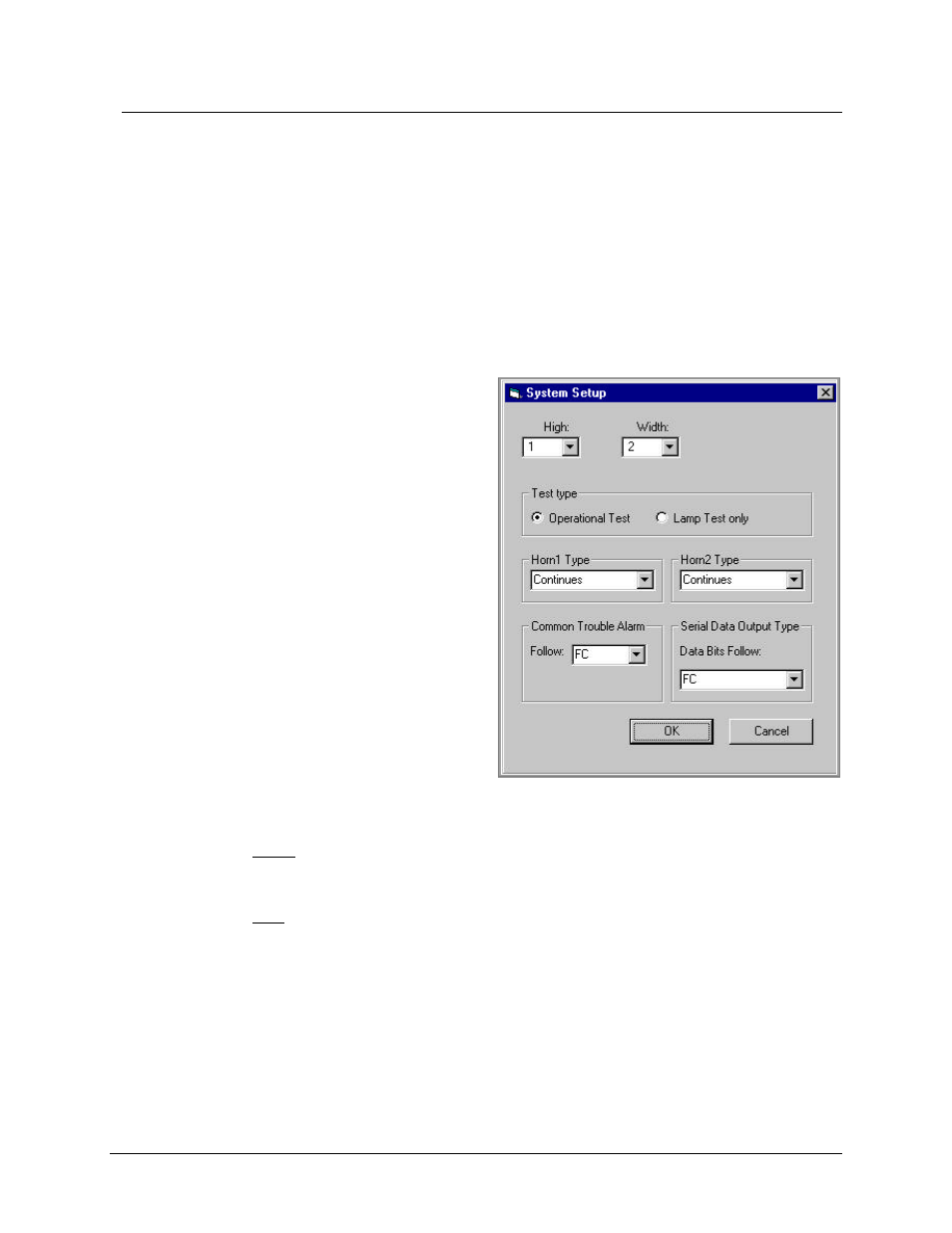

Figure 4-11 Default Setting
of the System Setup Window
Width
The number of columns on the table.
High
The number of rows on the table.
NOTE:
The total number of cells (=Width * High) on the table should be same as or
larger than the total number of the physical alarm modules in the chassis. The
address of the first module is always1.
