Rev 1.3 Series X11CA Computer Annunciators: X11CA Configuration Software User’s Manual
4. X11CA Software Operation
Hardware Control-© 2003 Ronan Engineering 11

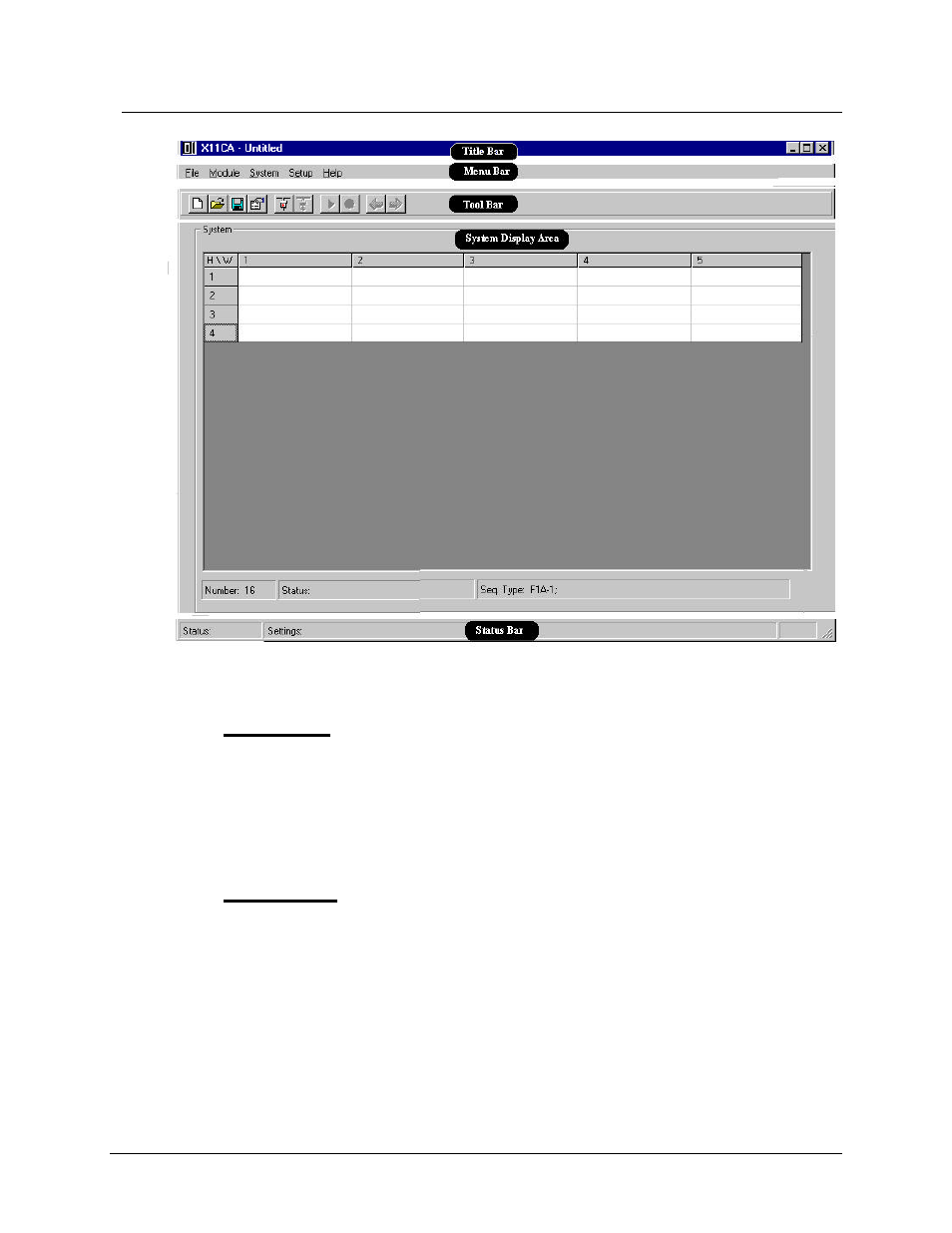

Figure 4-3 Main Window
4.2.1 The Title Bar
The first line at the top of the Main window is the Title area. It displays two
names: the Configuration Software name and the configuration file name.
Example: The title bar on Figure 4-3 shows that the name of the program is
‘X11CA’ and the configuration file name is ‘untitled’.
4.2.2 The Menu Bar
The second line from the top of the Main window is the Menu area. It has five
menus and each menu has its own submenus. Figure 4-4 shows the menus in bold
characters and submenus in plain characters.
