Rev 1.3 Series X11CA Computer Annunciators: X11CA Configuration Software User’s Manual
4. X11CA Software Operation
Hardware Control-© 2003 Ronan Engineering 37

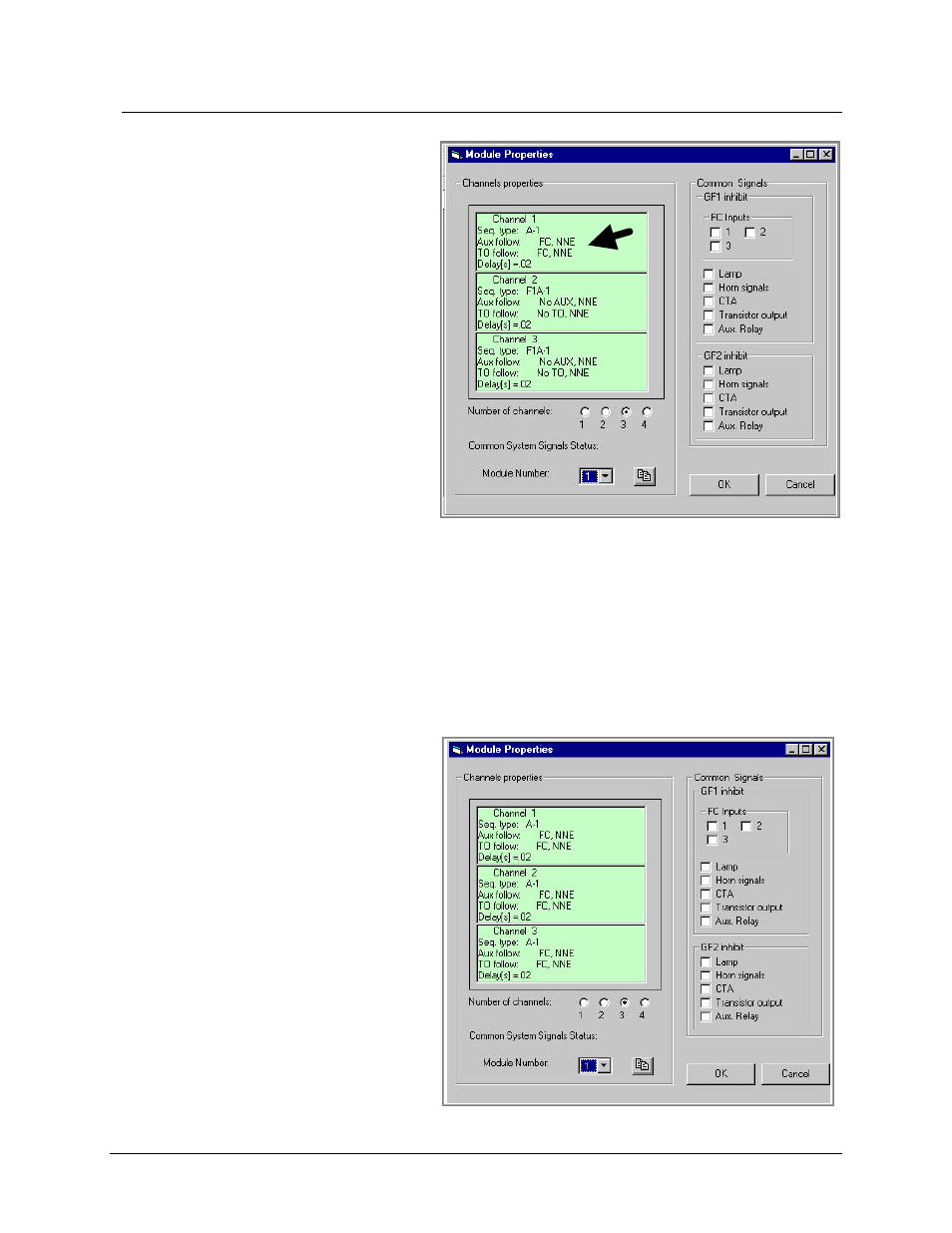

Figure 4-23 New
Channel1Properties
5) The next step is to configure the other channel(s). There are two ways
to configure the other channel(s).
? If the other channels have different configurations, repeat the
above steps for each channel.
? If the other channels have the same configuration as the first one,
simply right click in the first channel area to copy from. The
settings of the other channels will become the same as the first one.
Figure 4-24
Channel Properties
after the Copying from
the First Channel
