Ronan X54-3202 - Manual

Page 1 of 2 Rev. 0
A Family of
Products!!!
Transmitters
Alarm Trips
I/I Isolators
Ronan Engineering Company
Ph: 800-327-6626 Fax: 818-992-6435 E-mail: [email protected] Web: www.ronan.com
♦ High Density Dual Channel Packaging
♦ Field Configurable Options Including:
four (4) RTD types, seven (7) standard input spans
with selectable zero offsets (for non-linearized ranges only)
♦ Max. Loop Load = 700 ohms at 24 vdc Loop Power
♦ Full Input/Output/Power and Channel Isolation
♦ Front Access to Zero and Span Adjustments
♦ Standard 35 mm DIN Rail Mounting

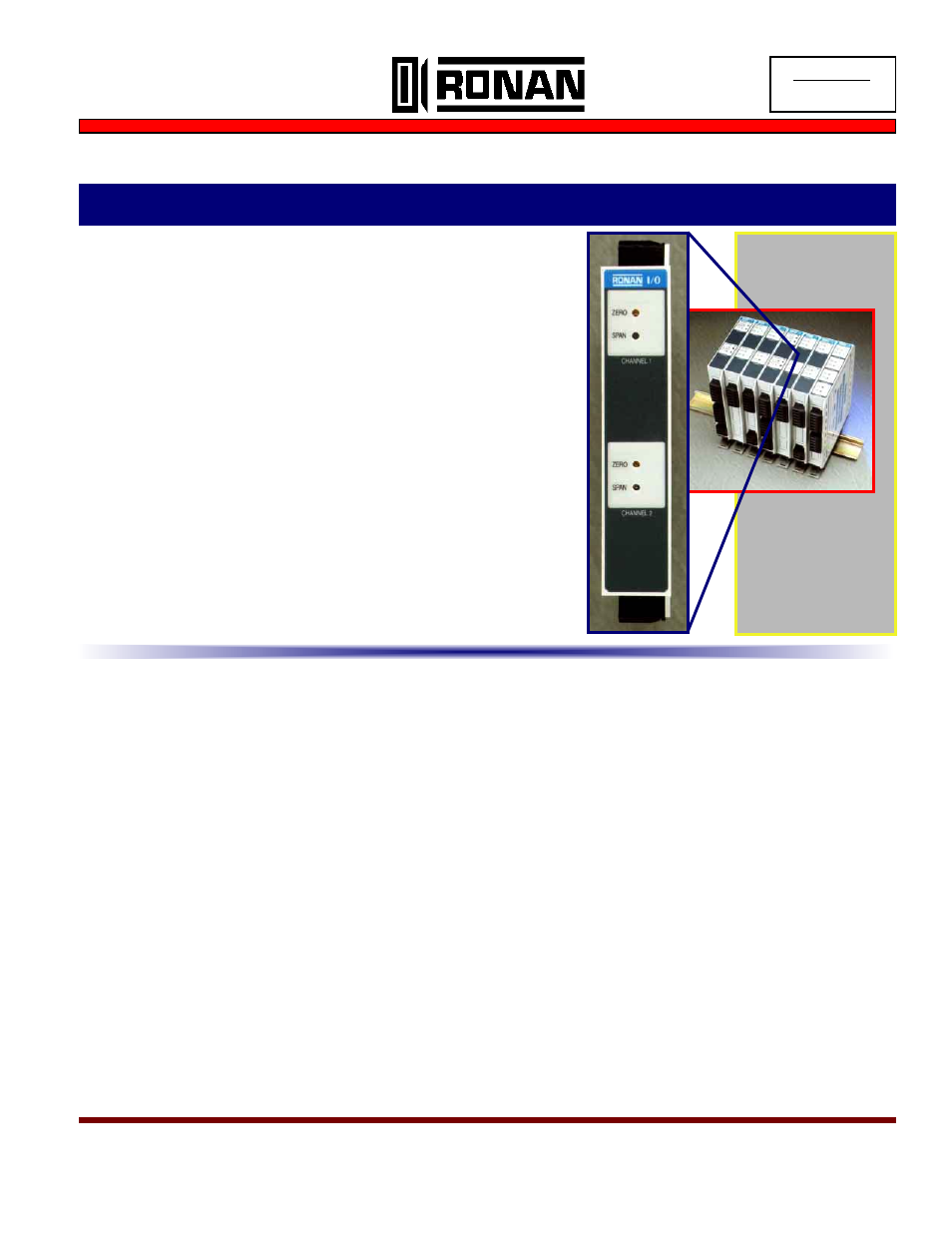

DESCRIPTION: The X54-3202 is a dual channel RTD transmit-
ter powered by the output 4-20 mA current loop. Features include:
two piece plug-in connectors for easy wiring and maintenance; field
configurable ranges and RTD types; optional linearized outputs; full
1000 vac isolation; and front panel access to ZERO and SPAN adjust-
ments. RFI protection, wide operating temperature, and high accuracy
are standard features. Custom inputs, outputs, scaling and linearization
are available from the factory.
RTD Transmitters - Field Configuration Options - High Density DIN Rail Packaging
X54-3202
2-Wire (output loop powered) Dual Channel Universal RTD Transmitter
ISO 9001
REGISTERED
SPECIFICATIONS:
Input:
RTD sensor types: 100 ohm platinum, 120 ohm nickel,
10 ohm copper.
(linearized outputs available for Platinum or Nickel only)
Input Impedance:
> 100 K ohms.
Outputs: 4-20 mA into 700 ohms with 24 vdc loop power
i.e.: Max. Rload = (Vloop supply - 10 vdc)/ 20 mA
Span Adjustment:
Front-accessible, multi-turn, infinite resolution potentiometer
permits minimum +/- 5% adjustment.
Zero Adjustment:
Front-accessible, multi-turn, infinite resolution potentiometer
permits minimum +/- 5% adjustment
Calibrated Accuracy:
+/- 0.1% of span (linearization errors additional on large
span applications, consult factory )
Isolation:
1,000 vac between channels, input and output.
Input and output circuits isolated by transformers.
Common Mode Rejection:
> 120 dB, DC at 60 Hz.
Common Mode Voltage:
1000 volts peak AC maximum without damage.
Ambient Temperature Coefficient:
Ambient temperature range: 32 to 158
° F (0 to 70 ° C).
Gain: < +/- 0.01 % / ° F.
Zero: < +/- 0.01 % / ° F.
Ambient Temperature Range:
Operating: -20 to 158
° F (-25 to 70 ° C).
Storage: -40 to 158 ° F ( -40 to 70 ° C).
Power Supply Range:
10 to 40 vdc (max. allowable at X54)
(reverse polarity protected)
Radio Frequency Effects:
< 0.4 mV (referred to input) + 0.2% of span (referred to out-
put) when exposed to 5W transmitter with frequency range
20-460 MHz at a distance of 1 m.
Calibration:
Typically, factory calibrated to customer specified ranges.
Customer configurable for non-linearized applications.
Terminals:
High temperature polyester type, wire size 12 AWG max., 10
A max., 300 V max.
Specifications apply at 23 +/- 2°C (74 +/- 2°F) unless otherwise specified, and are subject to change without notice,
